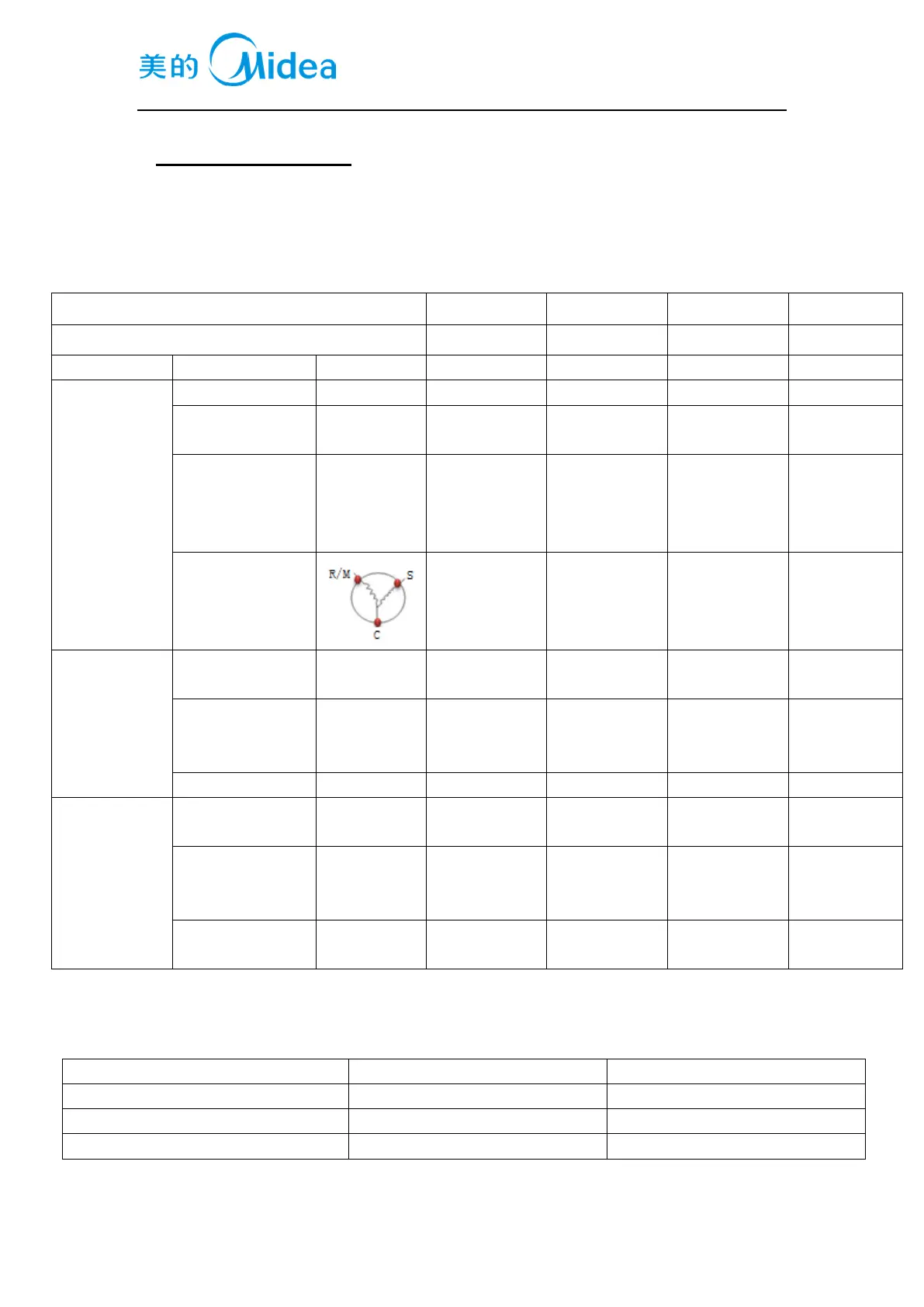

5.Product specification
5.1 Typespecification(None)
5.2 Electrical parameters
Product Name
CE-BCD87CM-SQ
SR-BCD87CM-OR
AR-BCD87CM-FR
/
Product Code
22031020000524
22031020000352
22031020000085
/
Name
Item
Type
Specification
Specification
Specification
Specification
Compressor
Compressor
/
SZ55C1J
SZ45C1J-N
FZ45E1H-SL
/
Starter
PTC
8EA19C1/QP2-15/
QP2-15
8EA19C1/QP2-15/
QP2-15
QP2-4R7
/
Overload
protector
OLP
3TM117TF2/DRB1
2T61A1
3TM129TF2/DRB1
3T61A1
4TM222TFBYY/3T
M222TF2DRB25T6
1A1/BT68-140A61
D3
/
Winding resistance
of compressor
wiring terminal
Rmc: 40.25±7%Ω
Rsc: 15.89±7%Ω
Rms=Rmc+Rsc
Rmc: 34.24±7%Ω
Rsc: 16.53±7%Ω
Rms=Rmc+Rsc
Rmc: 10.1±7%Ω
Rsc: 9.6±7%Ω
Rms=Rmc+Rsc
/
Motor
Fan motor of the
freezing chamber
/
/
/
/
/
Ventilation door of
the refrigerating
chamber
/
/
/
/
/
Condensation fan
/
/
/
/
/
Lights inside
the refrigerator
Lights inside the
freezing chamber
/
/
/
/
/
Lights inside the
refrigerating
chamber
/
240V/10W
240V/10W
110V/10W
/
Switch of the
refrigerator door
/
Sector
Sector
Sector
/
5.3Refrigerating temperature
Temperature tolerance ≤ 2
o
C
Compartment
The highest (
o
C)
Lowest (
o
C)
Freezing
-12
-24
Refrigerating
10
0
Variable temperature
/
/
