3.2 Pipelines Connection

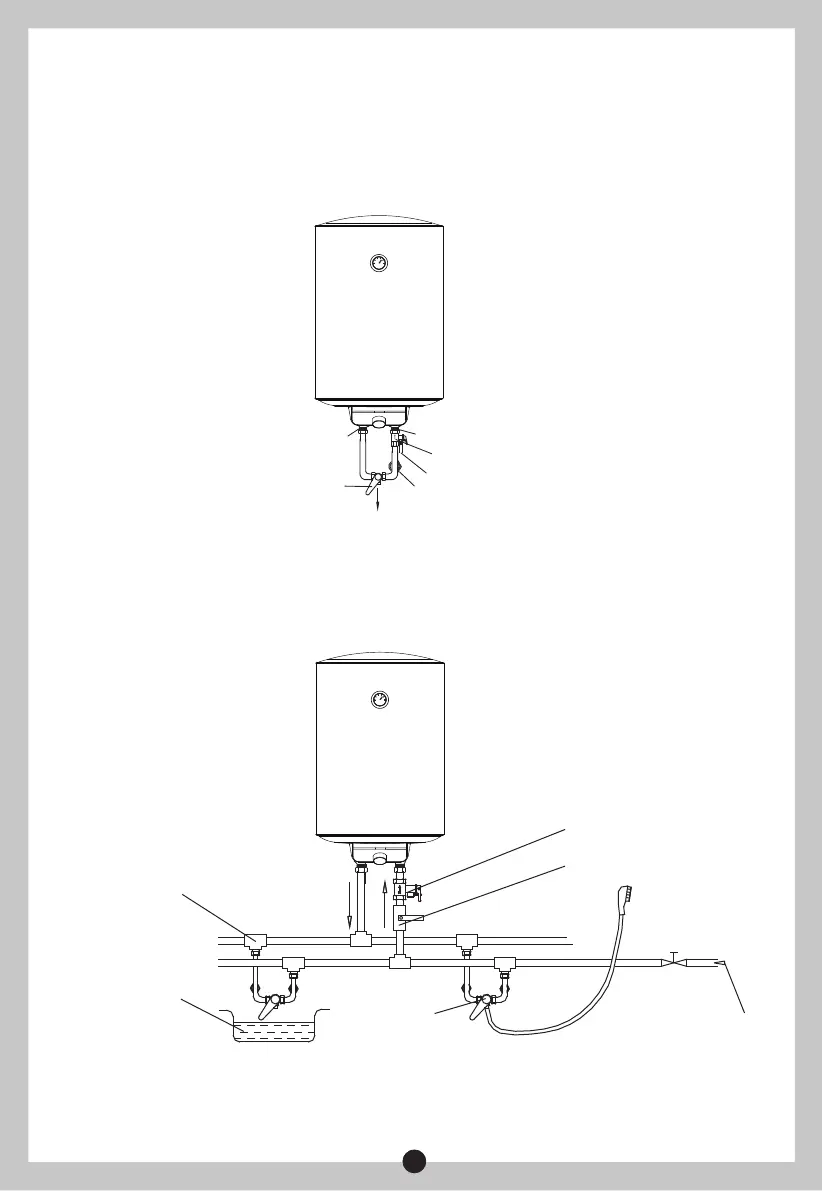

If the users want to realize a multi-way supply system, refer to the method shown in fig.6
for connection of the pipelines.
④
6
①
②
③
The dimension of each pipe part is G1/2” .
Connection of pressure relief valve with the heater on the inlet of the water heater.
In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided
with the heater must be added at the end of the threads to ensure leak proof joints (see
Fig.5).
(Fig.5)
(Fig.6)
Pressure relief valve
Water inlet valve
Water inlet valve
Running water pipeMixing valve
Water pool
Triple joint
Shower nozzle
Hot water outlet
Cold water inlet
Pressure relief valve
Pressure release hole
Joint screw for cold water inlet
Adjusting handle for
mixing valve
Hot water
Hot water
outlet
Cold water
inlet
