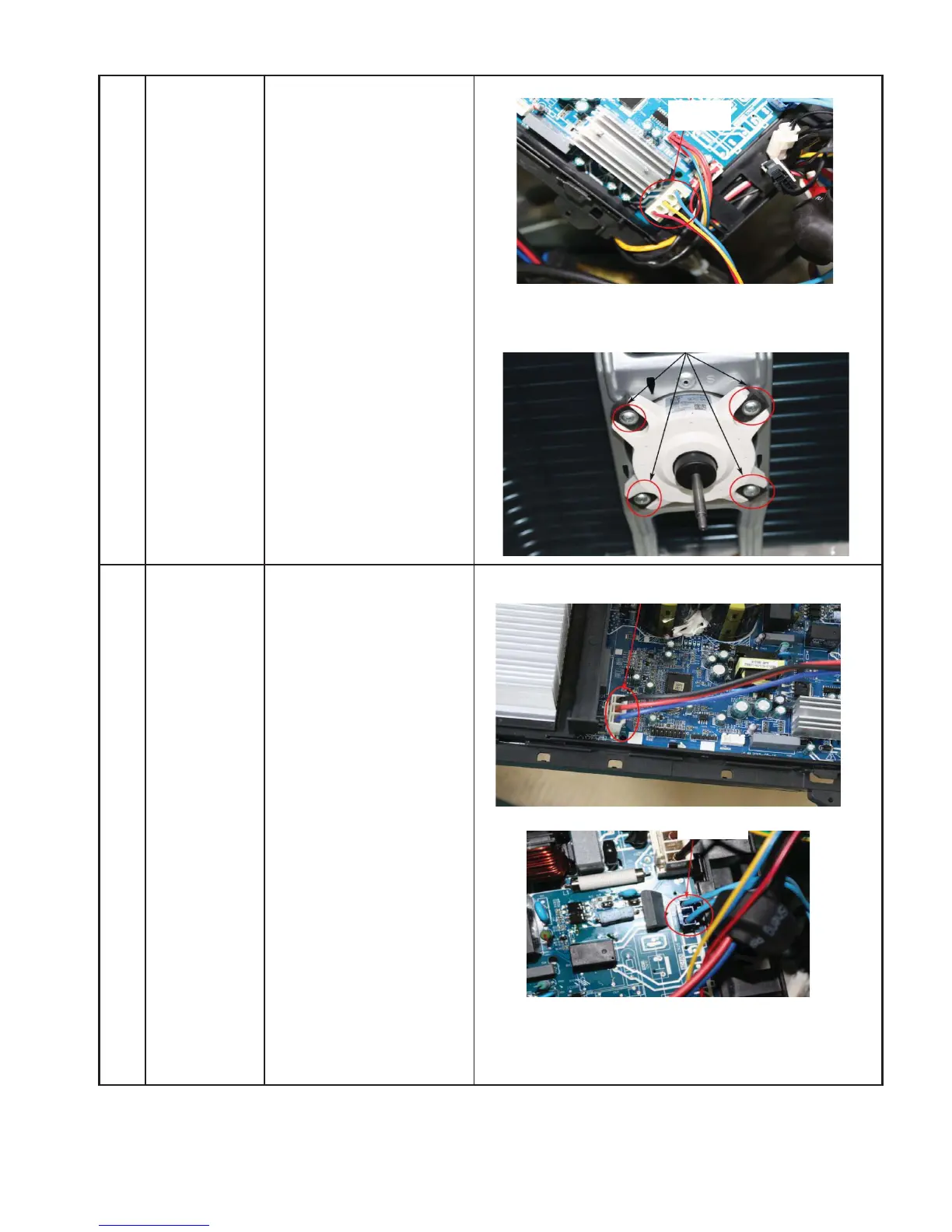

DISASSEMBLY INSTRUCTIONS SIZES 9−12K (208−230V) (CONT)
3) Disconnect the fan
motor connector and
from the electronic
control board.
4) Remove the fan motor
screws (4). Then
remove the fan motor.
3 Electrical
parts
How to remove the
electrical parts.
1) After completing the
work in sections 1 and
2, remove the
compressor
connectors.
2) Pull out the two blue
wires connected with
the four way valve.
ƻ
1
ƻ
3
ƻ
3
ƻ
4
ƻ
2
