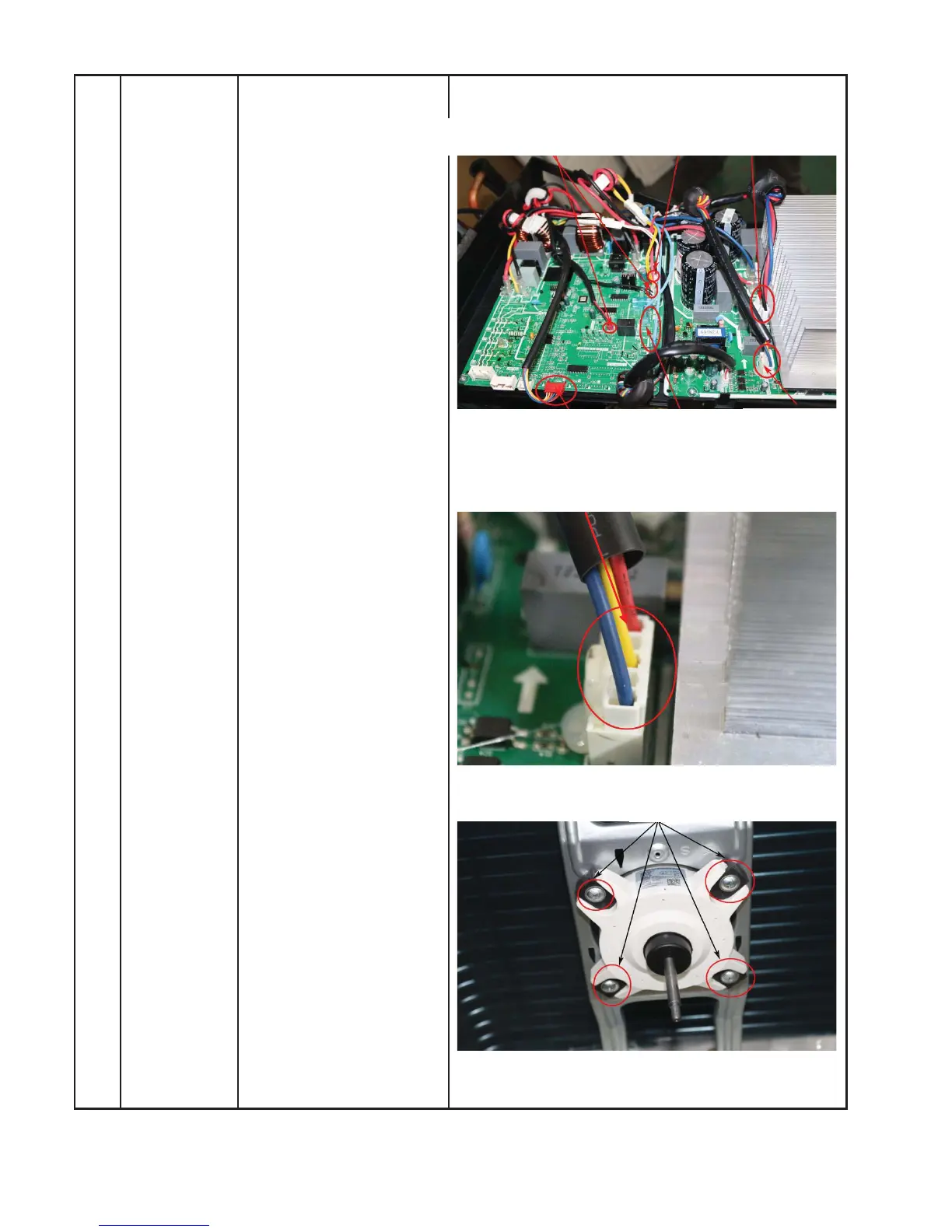

DISASSEMBLY INSTRUCTIONS SIZES 24K (208−230V) (CONT)
4) Disconnect the fan
motor connector from
the electronic control
board.
5) Remove the fan motor
screws (4) of the fan
motor, then remove
the motor.
ƻ
5
ƻ
4
T3, T4, T5, sensor
Pressure switch
Compressor
wire
Electronic expansion
4 wa
y
valve
Motor wire
ƻ
5
