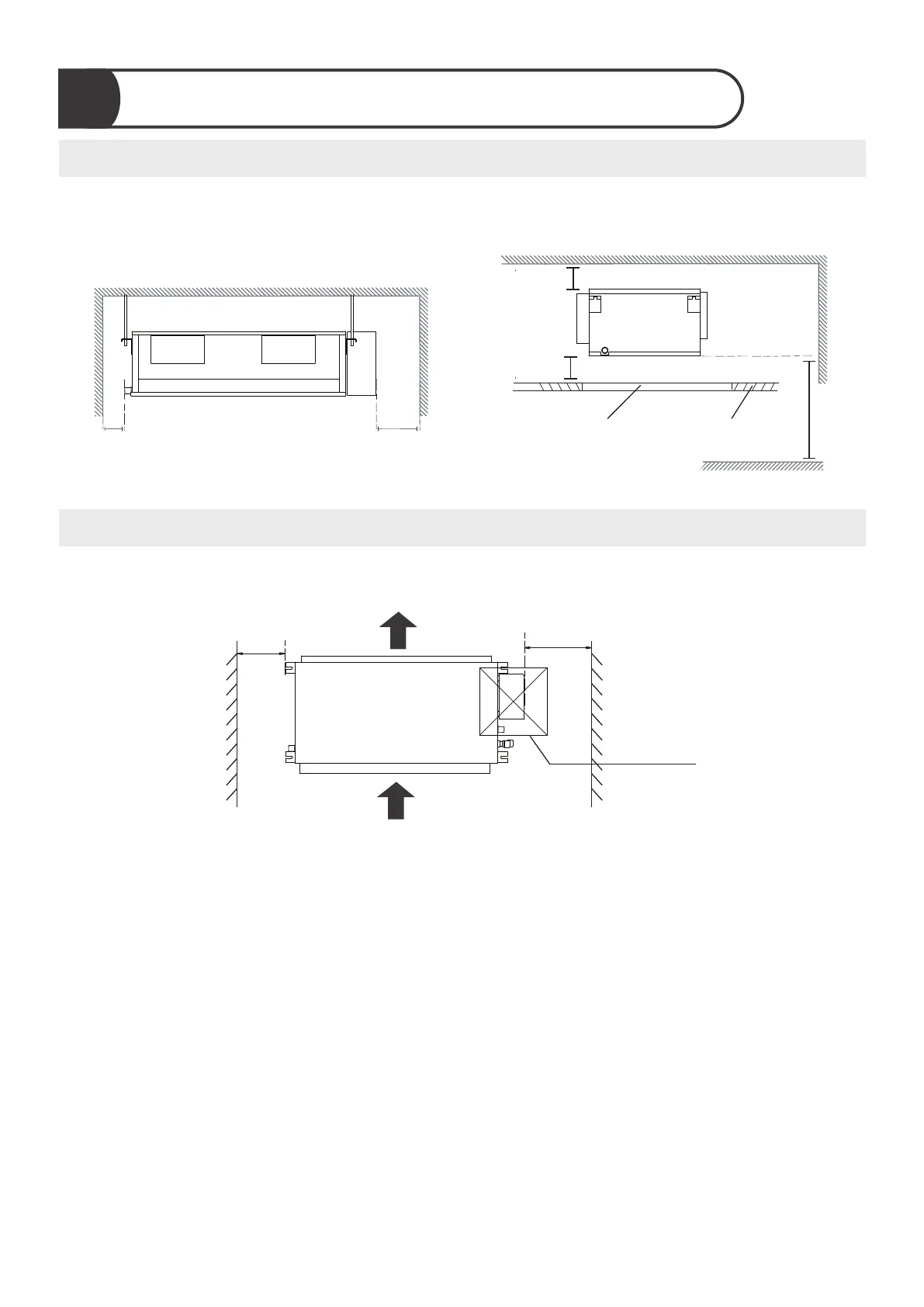

The distance between the mounted indoor unit should meet the specifications illlustrated in the
following diagram.
Confirm installation sizes2
11
Installation place
Left
side
Right
side
Strong and durable ceiling
Indoor unit
>7.9in(20cm) >11.8in(30cm)
>0.8in(2cm)
>0.8in(2cm)
>90.6in(230cm)
Floor
Service access Ceiling
(When no ceiling)
Air outlet
Air inlet
≥7.9in(20cm) ≥11.8in(30cm)
23.6inx23.6in
(60cmx60cm)
checking orifice
Maintenance space
