Midea HC-808WE - Variable Temperature Air Duct and Ventilation Door

Service Manual_2020-V1.0
35

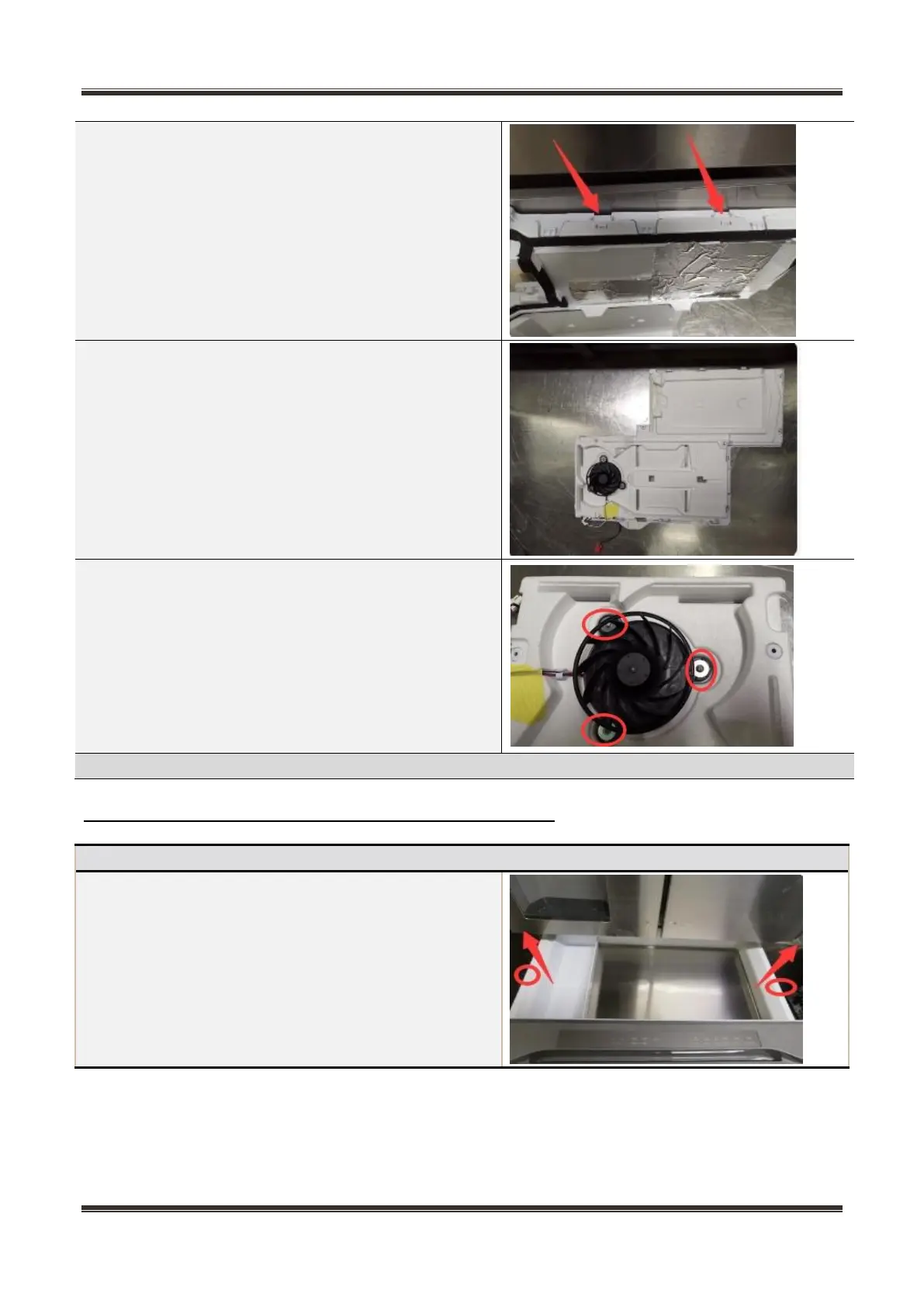

1) Disassemble the buckle around the refrigerating air
duct and the air duct cover plate, to make the air duct
separate from the cover plate
2) Remove the back foam.
3）Use cross screwdriver to remove the 3 pcs screws,
and dismantle the fan motor, change into a new fan
motor, the reverse operation is for assembly.
Air door components
7.5 Variable temperature air duct and ventilation door
Disassembly and assembly of variable temperature chamber ventilation door
1） Open the door of variable temperature chamber, and
take out its drawer;
