8.4 Sensor R/T table
Tx(℃)
Tx(℉)
R（KΩ）
Tx(℃)
Tx(℉)
R（KΩ）
Tx(℃)
Tx(℉)
R（KΩ）
-30
-22.00
33.81
-5
23.00
8.392
20
68.00
2.501
-29
-20.20
31.85
-4
24.80
7.968
21
69.80
2.391
-28
-18.40
30.01
-3
26.60
7.568
22
71.60
2.287
-27
-16.60
28.29
-2
28.40
7.190
23
73.40
2.188
-26
-14.80
26.68
-1
30.20
6.833
24
75.20
2.094
-25
-13.00
25.17
0
32.00
6.495
25
77.00
2.005
-24
-11.20
23.76
1
33.80
6.175
26
78.80
1.919
-23
-9.40
22.43
2
35.60
5.873
27
80.60
1.838
-22
-7.60
21.18
3
37.40
5.587
28
82.40
1.761
-21
-5.80
20.01
4
39.20
5.315
29
84.20
1.687
-20
-4.00
18.90
5
41.00
5.060
30
86.00
1.617
-19
-2.20
17.87
6
42.80
4.818
31
87.80
1.550
-18
-0.40
16.90
7
44.60
4.589
32
89.60
1.486
-17
1.40
15.98
8
46.40
4.372
33
91.40
1.426
-16
3.20
15.12
9
48.20
4.167
34
93.20
1.368
-15
5.00
14.310
10
50.00
3.972
35
95.00
1.312
-14
6.80
13.550
11
51.80
3.788
36
96.80
1.259
-13
8.60
12.830
12
53.60
3.613
37
98.60
1.209
-12
10.40
12.160
13
55.40
3.447
38
100.40
1.161
-11
12.20
11.520
14
57.20
3.290
39
102.20
1.115
-10
14.00
10.920
15
59.00
3.141
40
104.00
1.071

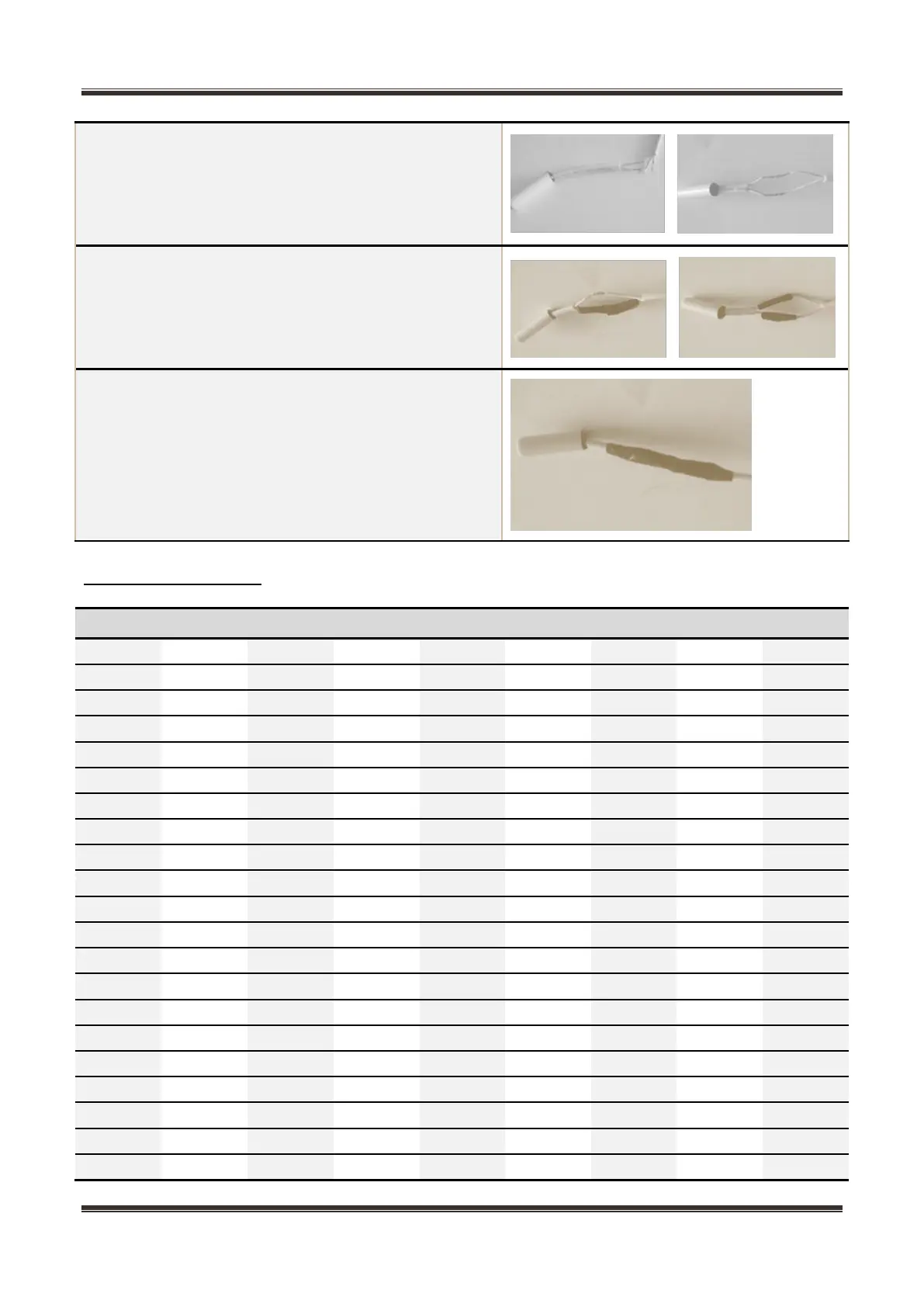

Strip off the head of the sensor and connect it.
Wrap the two wires together with insulation tape.
Wrap the two wires together.
