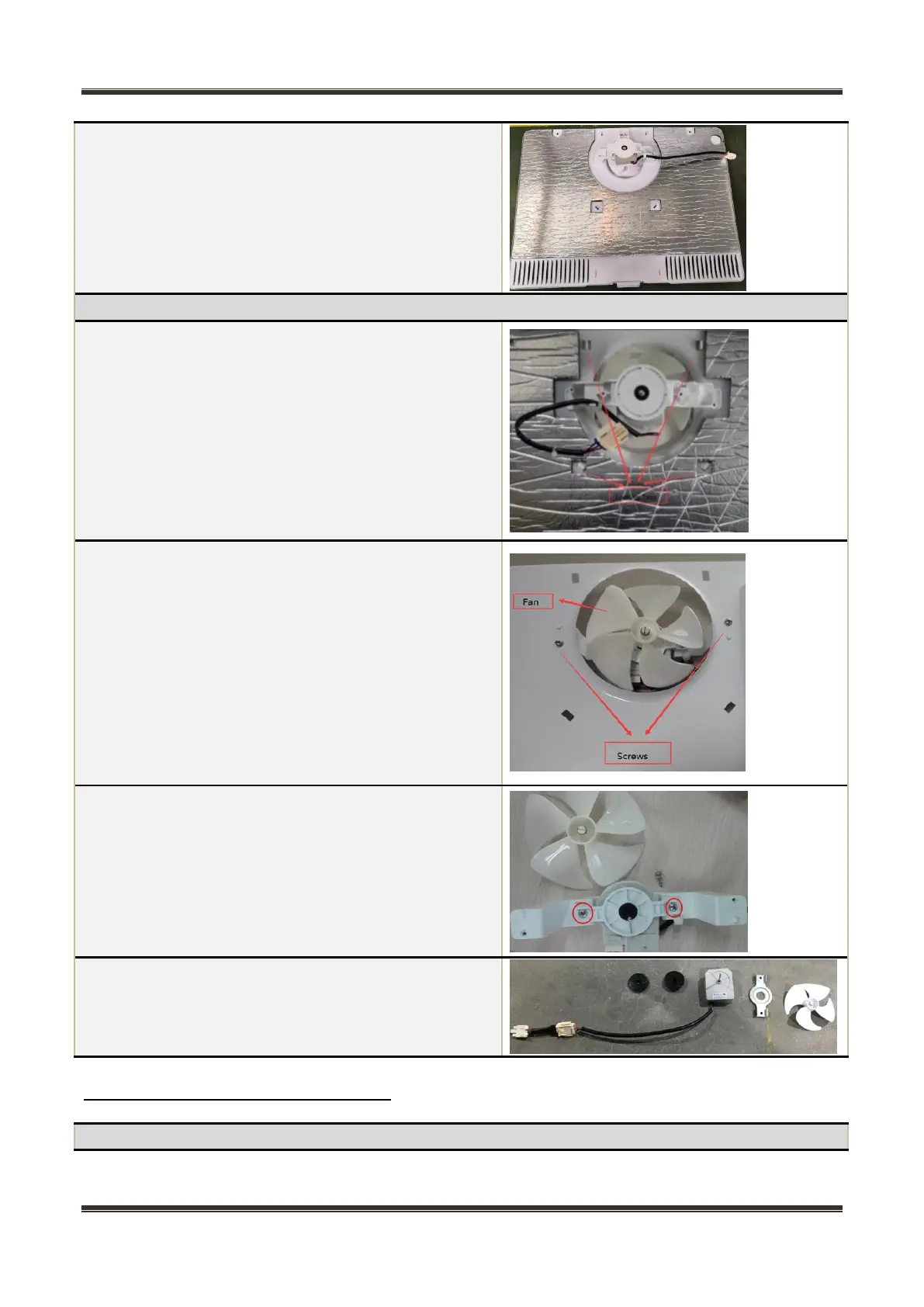

4)Take out the freezing air duct assembly.
1）Disassemble buckles at the back of the freezing air
duct and remove 4 front cover plates;
2）Remove screws using a cross screwdriver to get the
fan and components of fan brackets;
3）Remove 1 screws using a cross screwdriver to
separate fan brackets and the fan;
4）Separate the fan and fan blade (pull it out using
great force);
5）Replace the fan in reverse steps;
7.6 Evaporator and Defrost system
Evaporator in freezing chamber
