Preparing the unit Where to install the unit
When the unit is delivered there is a blue cover over the coil, please
remove it, the remote controller is in a box at the back off the unit
Remove the right hand front cover of the unit to gain access.
To gain access to the wiring, you will need to remove the 2 x 13mm
bolts at the front to get the cover off, don’t loose them they MUST go
back in.
On the larger 8-12-14kw units, the compressor has a plate which has
to be removed prior to installation, see above. Do not remove the
metal frame the unit is bolted to, it is structural.
12/14/16 kW
Remove the
transportation support
Please remove the blue
plastic before installing
Remove the coil cover
Remove the compressor support

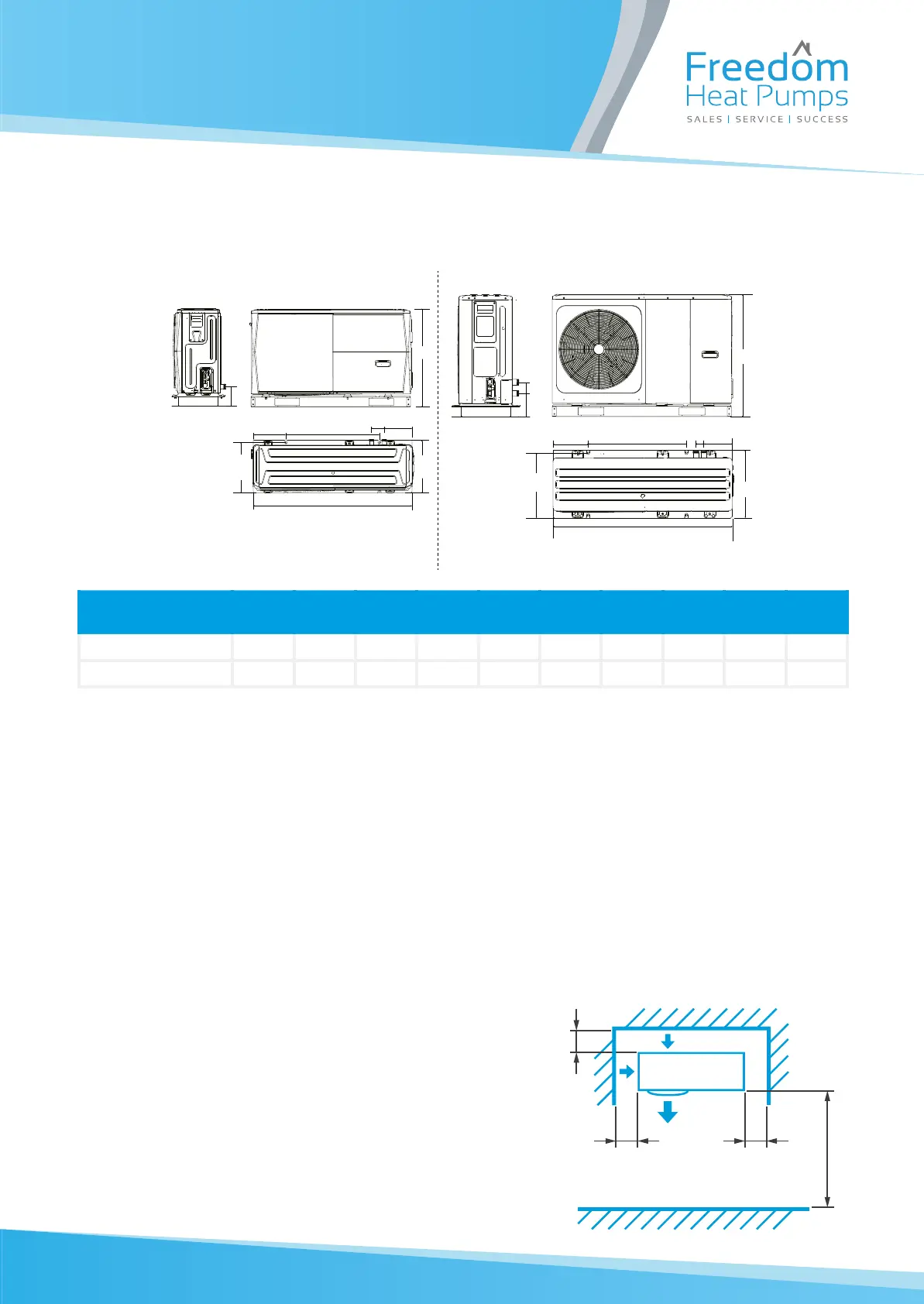

Unit Dimensions
4/6 kW (unit: mm)
H
8/10/12/14/16 kW (unit: mm)
I
H
J
I
E D
B
F
G
C
A
E D
B
F
C
A
G
Model A B C D E F G H I J
4/6kW 1295 397 429 760 256 105 225 792 161 /
8/10/12/14/16kW 1385 482 526 760 270 160 221 945 182 81
Installing the Outdoor Unit (Boiler)
Position the outdoor unit so that the air flows into an open area, where there are no plants and animals. If the unit
is to be installed within a mile of the sea you need to have the unit coated using Blygold, ask us for details. If you are
applying for RHI and going through MCS you need to make sure the system meets MIS020.
Install the outdoor unit on a flat, stable surface, it needs to be securely mounted at least 100mm off the ground. You
can use rubber feet under the unit if you want but its not essential.
The unit must have adequate drainage, it can produce up to 6 L / hour of condensate. If you are installing the unit at
height you can install a drain pan under the unit but its best to let the unit drain into the ground.
300 or more 300 or more
300 or more
1500 or more
The space around the unit is very important, allow:
300mm to the left hand side (facing the front of the unit),
300mm to the right of the unit,
300mm to the rear of the unit and 1500mm to the front of the
unit.
