17

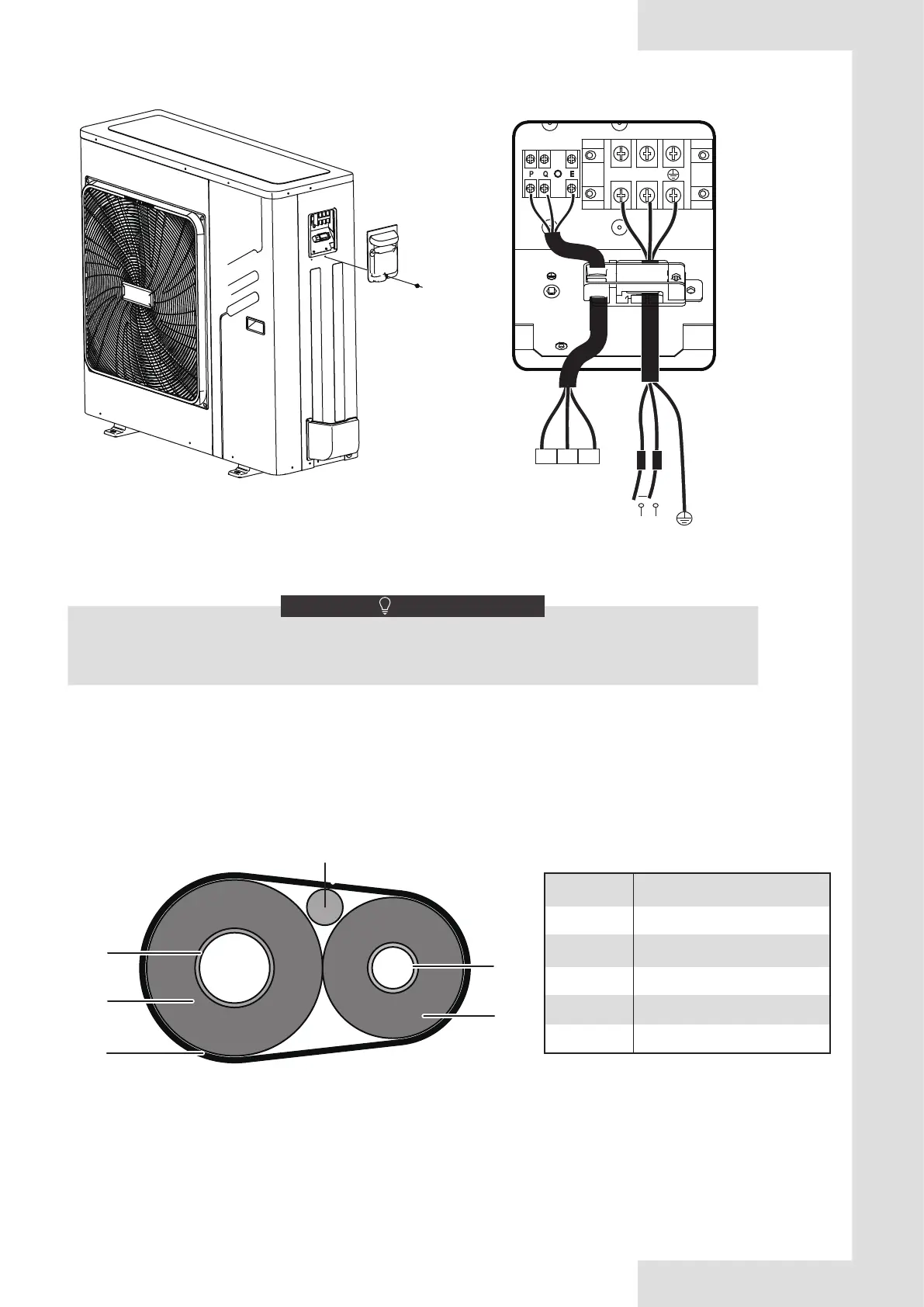

9 OVERVIEW OF THE UNIT
9.1 Disassembling the unit
The ground fault circuit interrupter must be a high-speed type breaker of 30 mA (<0.1 s).
Please use 3-core shielded wire.
NOTE
OUTOOOR UNIT
POWER SUPPLY
L N
LPS
FUSE
P Q E
6
7 8
INDOOR UNIT
L N
EP Q
A
B
C
D
E
F
8.5 To finish the outdoor unit installation
insulate and fix the refrigerant piping and interconnection cable as follows:
A Gas pipe
B Gas pipe insulation
C Finishing tipe
D Liquid pipe
E Liquid pipe insulation
F Interconnection cable
XT2
XT1
XT6
