Installation
Instructions
Window Installation Kit
Type window installation:

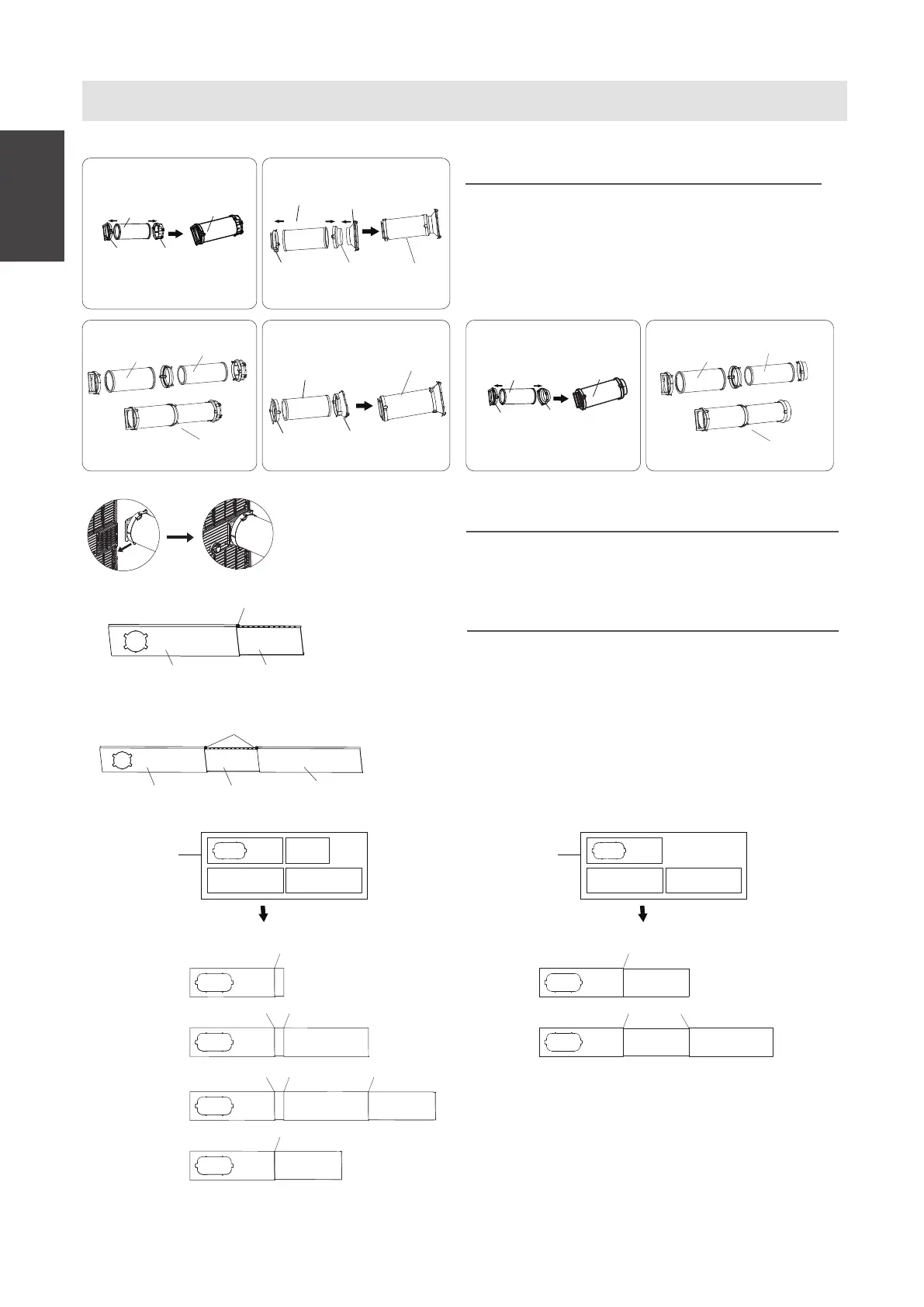

Step Three: Preparing the Adjustable Window Slider
1. Choose the window sliders according the size of
your window. Sometimes, it needs to be cut short
to meet the window size, please take extra care to
cut it properly.
2. Use bolts to fasten the window sliders once they
are adjusted to the Proper length.
Window slider A Window slider B
Bolt
Window slider A Window slider B
Window slider C
Bolts
Step Two: Install the Exhaust hose assembly to the unit
Push the Exhaust hose into the airoutlet opening of
the unit along the arrow direction.
MODEL A
MODEL B MODEL C
1+2：
Bolt
Bolt
Bolt
1+2+3：
1+2：
1+2+3 ：
Bolt
Bolt
Bolt
1+2+3+4 ：
Bolt
BoltBolt
1+4：
Bolt
Window Sliders
After assembly
Before assembly
Window Sliders
After assembly
Before assembly
or
Press the exhaust hose(or extended exhaust hose)
into the window slider adaptor(or wall exhaust
adaptor) and unit adaptor, clamp automatically by
elastic buckles of the adaptors.
Step One: Preparing the Exhaust Hose assembly
Unit adaptor
Window slider
adaptor
Exhaust hose
Exhaust hose
assembly
Exhaust hose
Extended Exhaust
hose
Exhaust hose assembly
Model DModel C
Model A Model B
Window slider
adaptor
Exhaust hose
assembly
Exhaust hose
Air exhaust
passage
Unit adaptor
Exhaust hose
assembly
Exhaust hose
Unit adaptor
Air exhaust
passage
Exhaust hose
assembly
Unit adaptor Wall exhaust
adaptor A
Exhaust hose
Exhaust hose
Extended Exhaust
hose
Exhaust hose assembly
Type wall installation:
Model A Model B
This feature can be activated from the remote control
ONLY. To activate SLEEP feature, the set temperature
will increase(cooling) or decrease(heating) by 1°C/2°F
(or 1°F) in 30 minutes. The set temperature will then
increase(cooling) or decrease(heating) by another 1°C
/2°F (or 1°F) after an additional 30 minutes. This new
temperature will be maintained for 7 hours before it
thermostat allowing for the precise temperature
control at its location. To activate the Follow Me/Temp
Sensing feature, point the remote control towards the
unit and press the Follow Me/Temp Sensing button.
The remote control will send this signal to the air
conditioner until press the Follow Me/Temp Sensing
button again. If the unit does not receive the Follow
Me/Temp Sensing signal during any 7 minutes interval,
the unit will exit the Follow Me/Temp Sensing mode.
