Confirm various sizes2
(A)

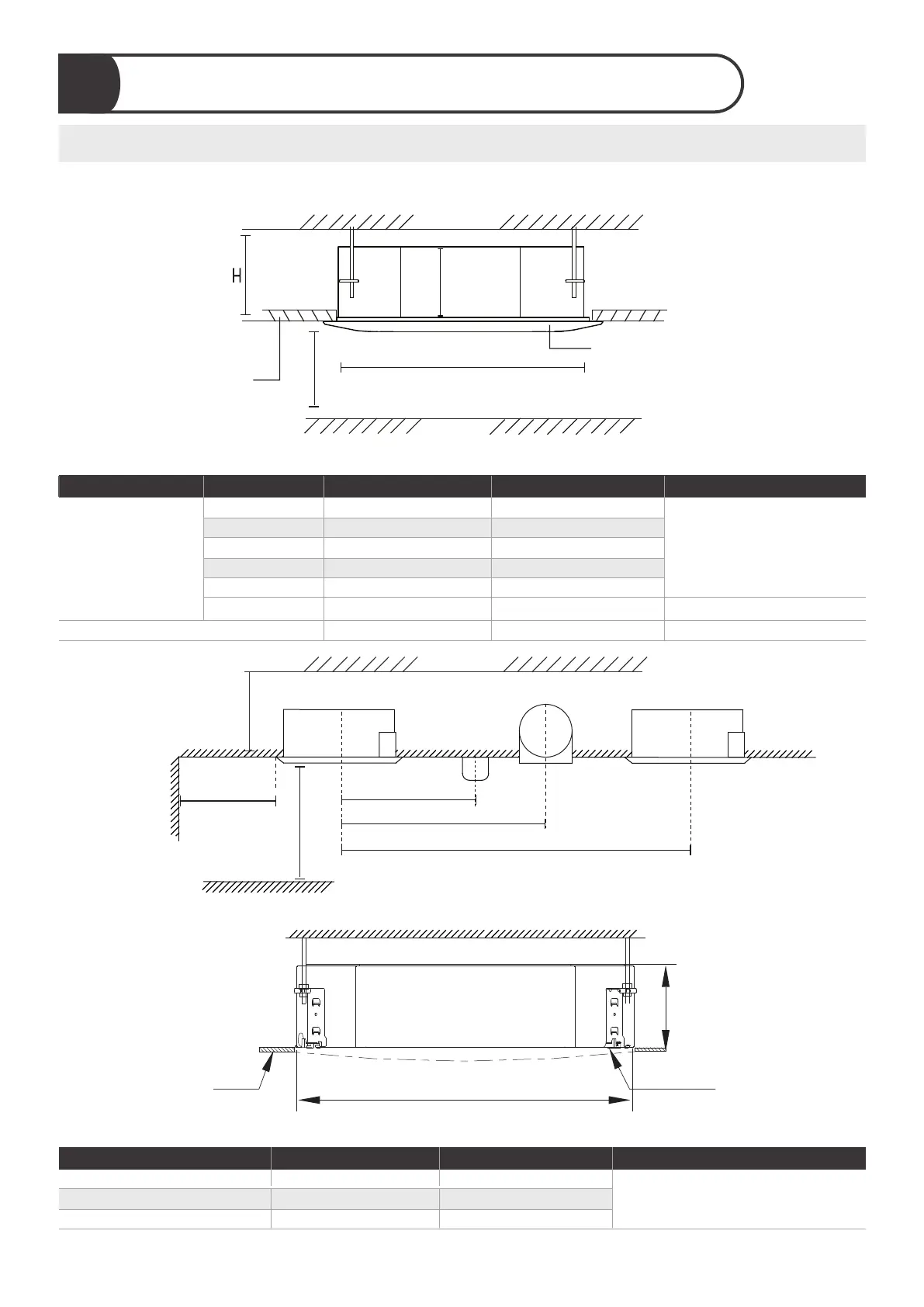

Recommended distances between the indoor unit and the ceiling
The distance between the mounted indoor unit and the internal ceiling should meet the following
specifications.
A
Front panel
Ground
Ceiling board
>250cm / 98.4”
B (Ceiling hole)
Ceiling
TYPE
Compact models
Distance from ceiling relative to height of indoor unit
MODEL Length of A (mm/inch) Length of H (mm/inch)
18-24 205/8 > 235/9.3
24 245/9.6 > 275/10.8
30 205/8 > 235/9.3
30-48 245/9.6 > 275/10.8
48-60
287/11.3 > 317/12.5
48-60 287/11.3 > 317/12.5
Length of B (mm/inch)
880/34.5
940/37.0
Super-Slim
models
260/10.2 > 290/11.4 600/23.6
(B)
＞400cm / 157.5”
＞200cm / 78.7”
＞150cm / 59.1”
＞150cm / 59.1”
(200cm / 78.7”
recommended)
Ceiling
Ground
Indoor unit
Indoor unit
Illumination
Ventilator
>230cm / 90.6”
Ceiling
H
Front panelCeiling board
B (Ceiling hole)
Ceiling
A
Distance from ceiling relative to height of indoor unit
MODEL Length of A (mm/inch) Length of H (mm/inch)
24K 205/8.03 230/9.06
30K/36K 245/9.65 271/10.7
42K/48K55K 287/11.3 313/12.3
Length of B (mm/inch)
900/35.4
