CAUTION
(A)

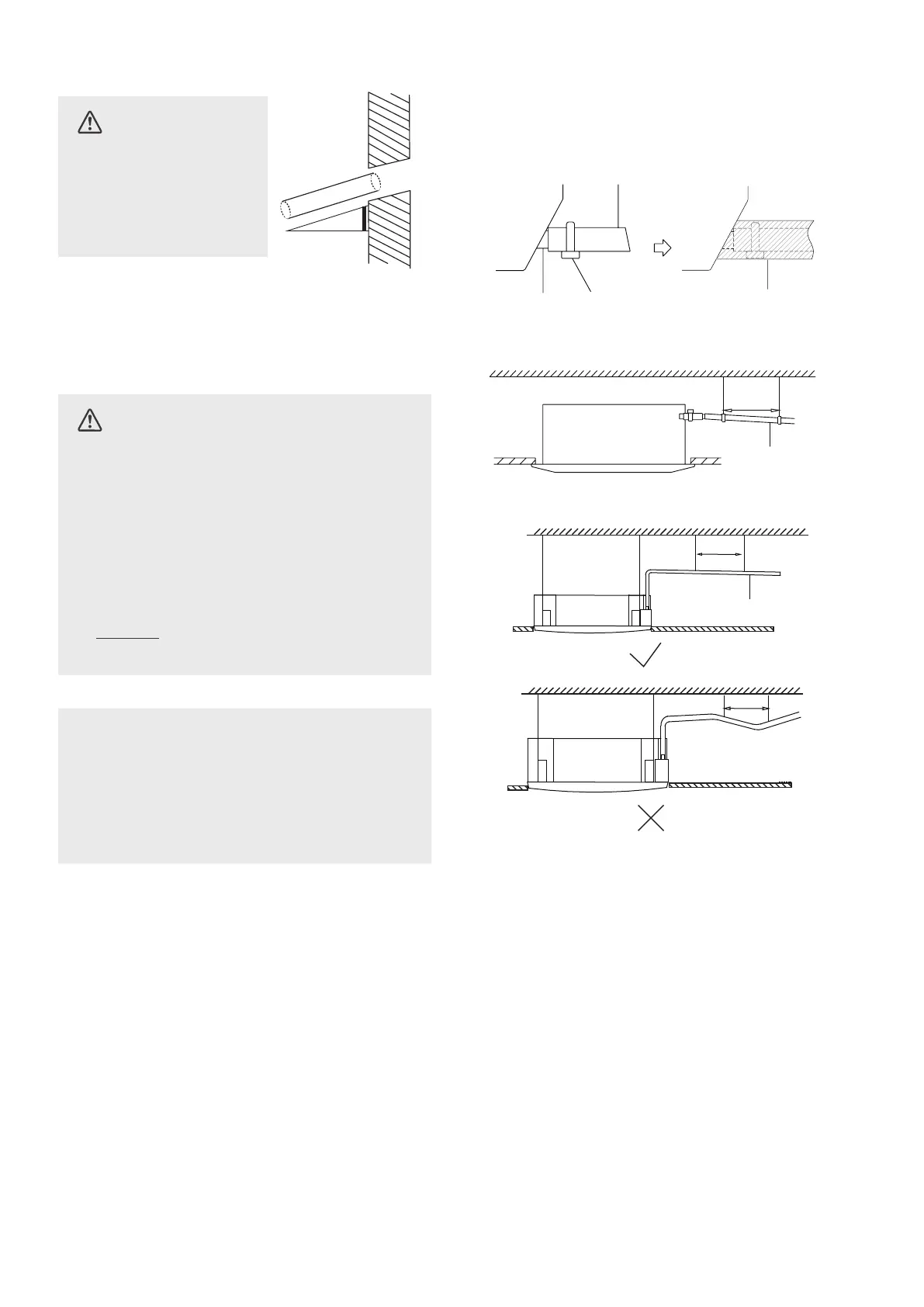

Indoor Drainpipe Installation
Install the drainpipe as illustrated in the following
Figure.
Drainpipe
connecting port
Drain hose
Metal clamp
Insulation
Step 5: Connect drain hose
The drainpipe is used to drain water away from
the unit. Improper installation may cause unit
and property damage.
•
Insulate all piping to prevent condensation,
which could lead to water damage.
• If the drainpipe is bent or installed
incorrectly, water may leak and cause a
water-level switch malfunction.
• In HEAT mode, the outdoor unit will
discharge water. Ensure that the drain hose
is placed in an appropriate area to avoid
water damage and slippage.
• DO NOT pull the drainpipe forcefully. This
could disconnect it.
NOTE ON PURCHASING PIPES
Installation requires a polyethylene tube
(exterior diameter = 2.5cm or 3.7-3.9cm)
(depending on models ), which can be
obtained at your localhardware store or
dealer.
(B)
Downward slope
1/100
Downward slope
1/100
1-1.5m
(39-59”)
1-1.5m
(39-59”)
1-1.5m
(39-59”)
CAUTION
When drilling the wall
hole, make sure to
avoid wires, plumbing,
and other sensitive
components.
Wall
Indoor
Outdoor
≈ 12mm
/ 0.5 inch
16
To Next Page
