Midea MCD1-24HRFNX - Page 26

CAUTION
•
Indoor
Outdoor
Indoor
Indoor
Outdoor
Outdoor

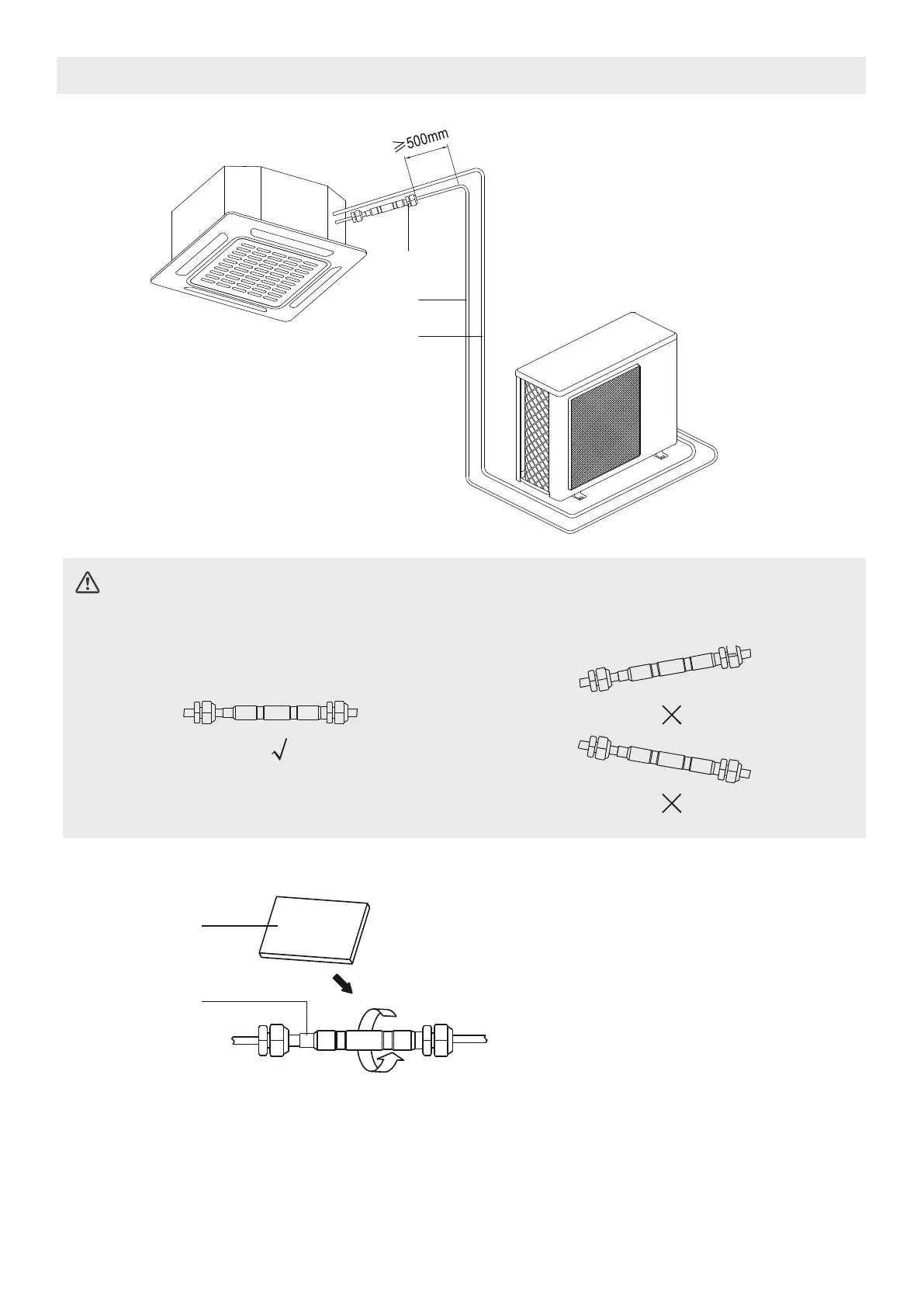

For ensuring throttled eciency, please mount the throttle as horizontally as possible.
Wrap the supplied anti-shock rubber at external of the throttle for denoise.
1 Anti-shock rubber
2 Throttle
2
1
1 Throttle
2 Liquid pipe
3 Gas pipe
1
2
3
Installation Of The Throttle (Some Models)
24
