Midea MDT1-08DMN3-QA3 - 11. Exploding view

21

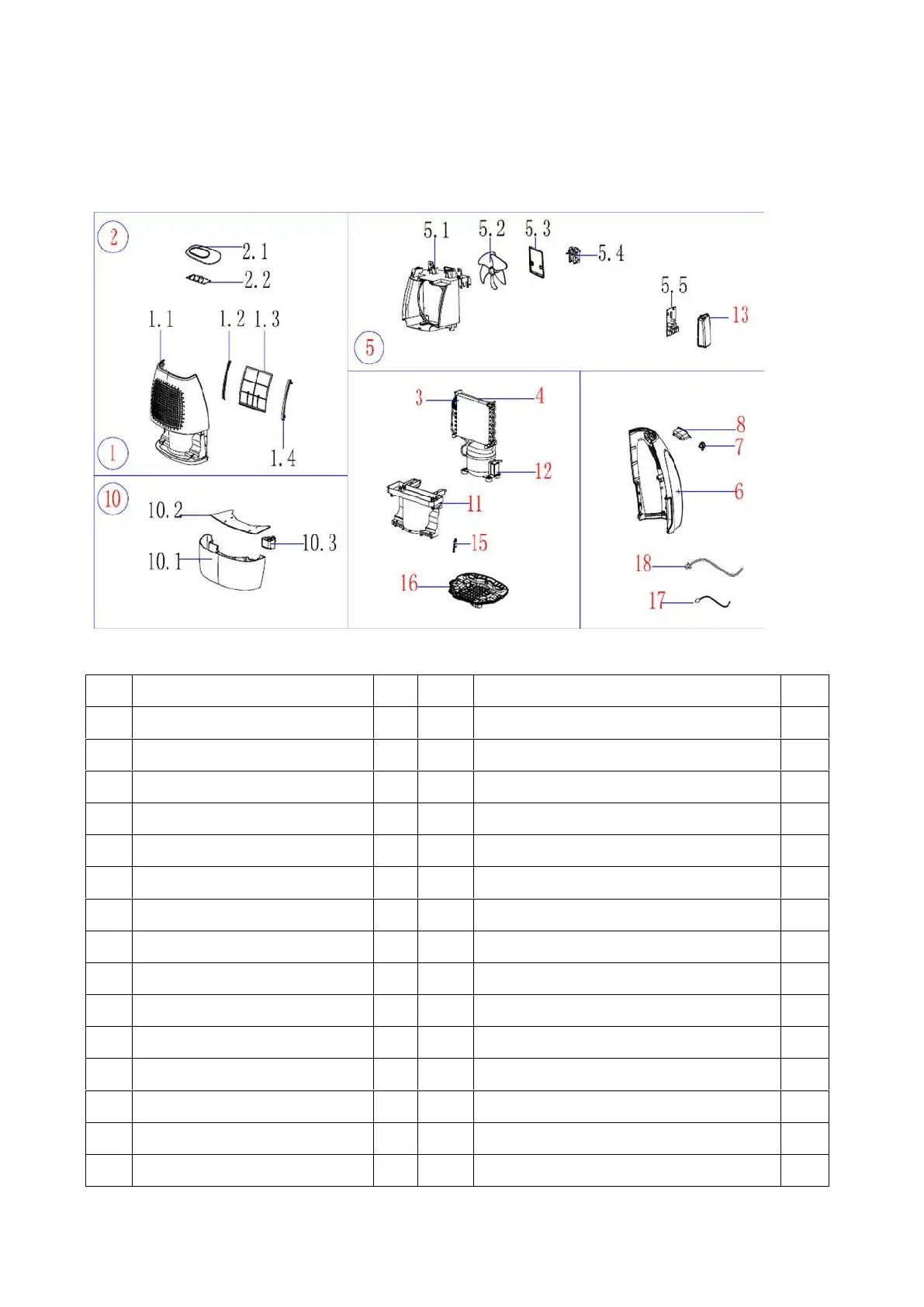

 11. Exploding view
(1). EU-CF0.3BD/N3-T1(A3)(MDT1-08DMN3-QA3)
EU-CFZ0.3BD/N3-T1(A3)(MDT1-08DEN3-QA3)
EU-CF0.4BD/N3-T1(A3)(MDT1-10DMN3-QA3)
EU-CFZ0.4BD/N3-T1(A3)(MDT1-10DEN3-QA3)
Part list:
No.
Part Name
Qty
No.
Part Name
Qty
1
Front panel assembly
1
5.5
main control board assembly
1
1.1
Front panel
1
6
Rear panel
1
1.2
Filter guide I
1
7
Drain stopper
1
1.3
Filter
1
8
Handle
1
1.4
Filter guide II
1
10
Water tank assembly
1
2
Display box assembly
1
10.1
water tank
1
2.1
Control panel
1
10.2
cover for water tank
1
2.2
Display board assembly
1
10.3
Dobber
1
3
Evaporator
1
11
Water drain pan
1
4
Condenser
1
12
Compressor
1
5
Scroll assembly
1
13
E-part box cover
1
5.1
Scroll
1
15
Micro Switch
1
5.2
Propeller fan
1
16
Base pan assembly
1
5.3
Holder for shaded pole motor
1
17
Pipe Temperature Sensor assembly
1
5.4
Shaded pole motor
1
18
power cord assembly
1
