Description:
① Power on indicator light(green)
② Bucket full indicator light(red)
③ Power Pad
④ Continuous operation on indicator light(green)
⑤ Display
⑥ Continue pad
⑦ Humidity set control pads

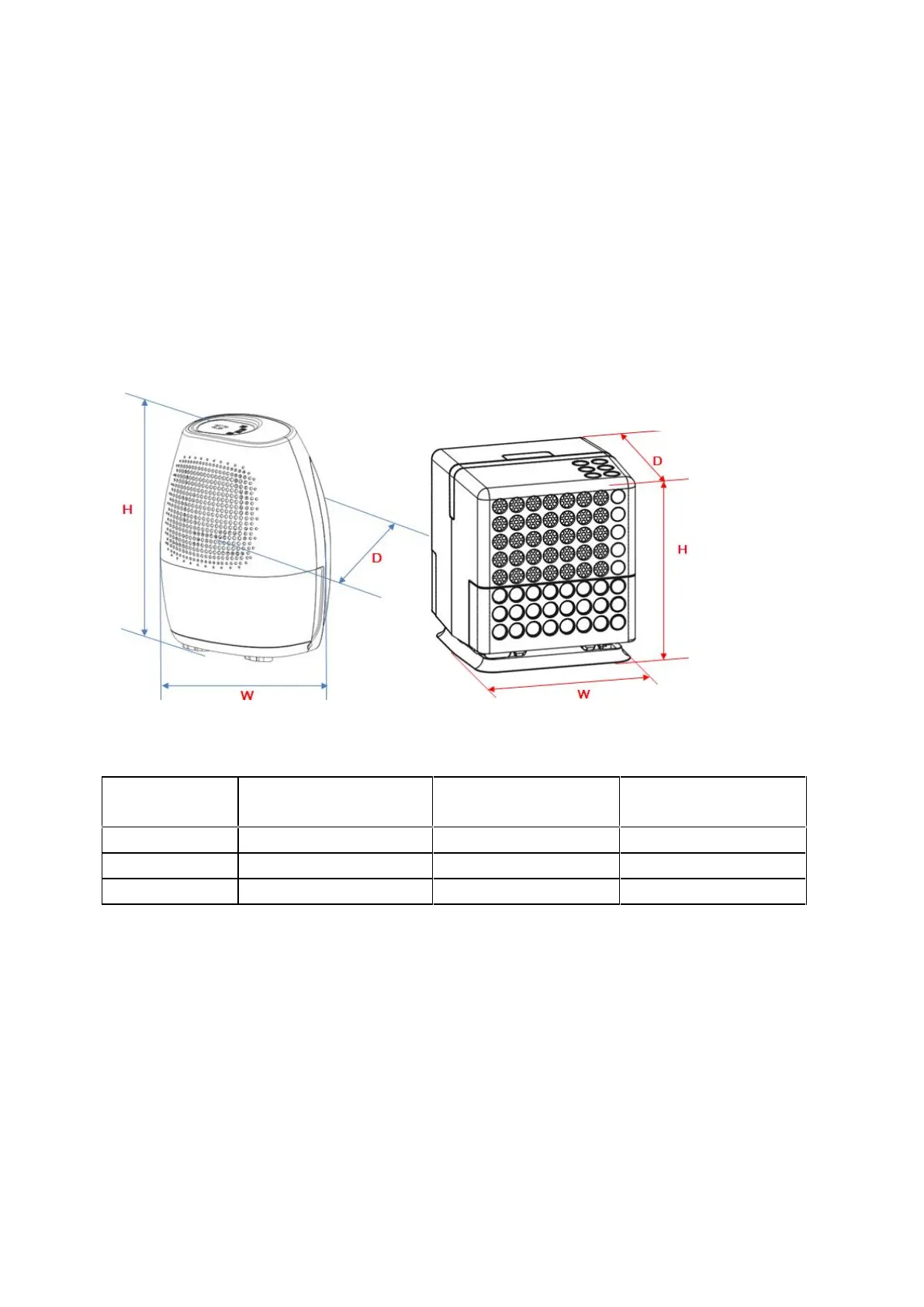

 3. Dimension
T1 Series T2 Series
Dimension
Mode
W(mm)
H(mm)
D(mm)
T1: 8L,10L
350
452
275
T1: 16L,20L
397
502
297
T2: 10L
350
395
350
 4. Refrigerant Cycle Diagram
The figure below is a brief description of the important components and their function in what is
called the refrigeration system.
