Midea MDT1-08DMN3-QA3

23
(3). EU-CFK0.6BD/N3-T1(A3)(MDT1-16DKN3-QA3)
EU-CFK0.8BD/N3-T1(A3)(MDT1-20DKN3-QA3)

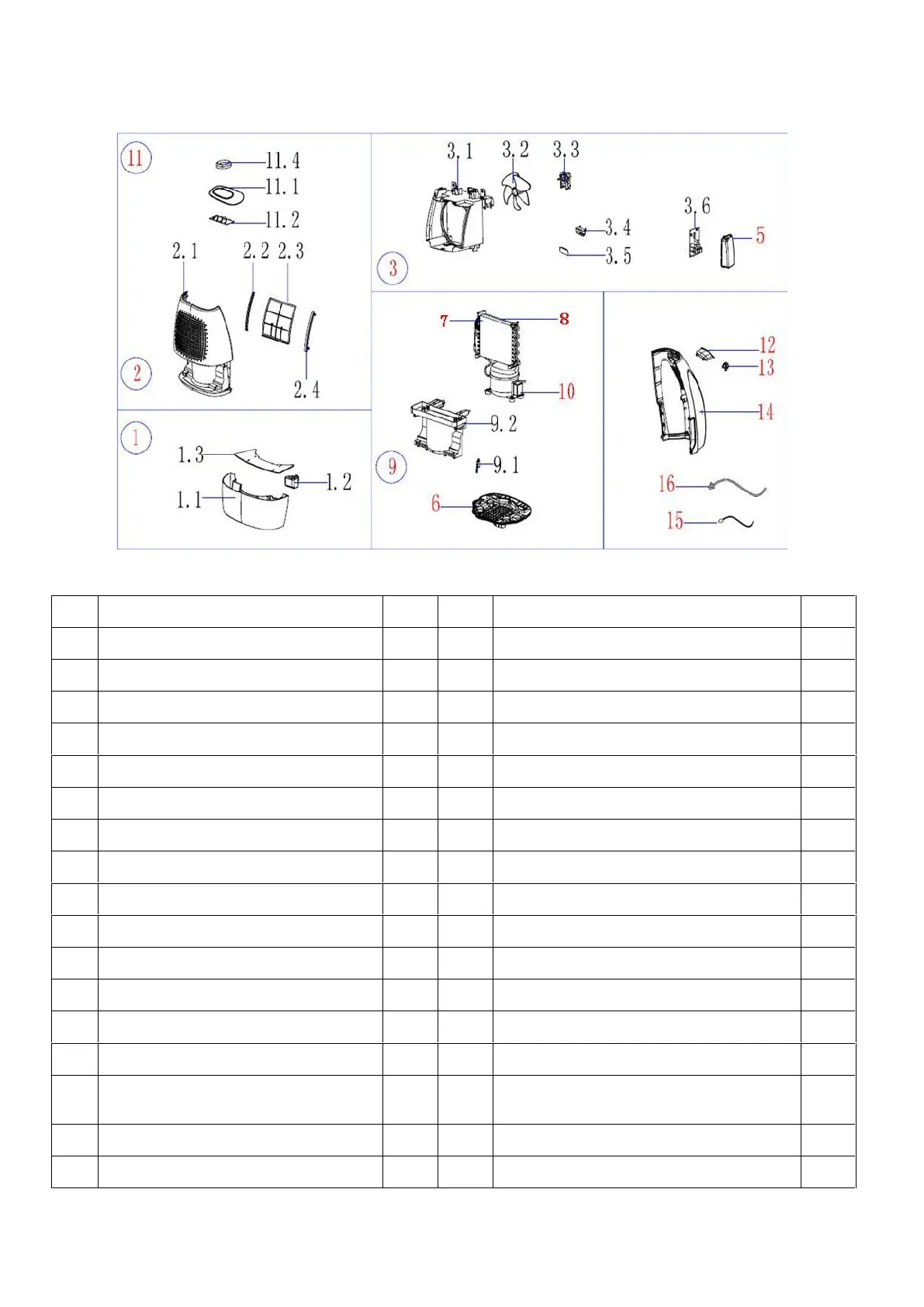

Part list:
No.
Part Name
Qty
No.
Part Name
Qty
1
water tank assembly
1
6
Chassis assembly
1
1.1
water tank assembly
1
7
Evaporator
1
1.2
Dobber
1
8
Condenser
1
1.3
Cover for water tank
1
9
Water collector assembly
1
2
Front panel assembly
1
9.1
Micro Switch
1
2.1
Front panel
1
9.2
Water drain pan
1
2.2
Filter guide I
1
10
Compressor
1
2.3
Filter
1
11
Display box assembly
1
2.4
Filter guide II
1
11.1
Control panel
1
3
Exhaust scroll assembly
1
11.2
Display board assembly
1
3.1
Exhaust scroll
1
11.4
Mechanical knob switch
1
3.2
Propeller fan
1
12
Handle
1
3.3
Shaded pole motor
1
13
Drain stopper
1
3.4
Installation box for Humidity sensor
1
14
Rear panel
1
3.5
Cover for Installation box .Humidity
sensor
1
15
Pipe Temperature Sensor assembly
1
3.6
main control board assembly
1
16
power cord assembly
1
5
E-part box cover
1
/
/
/
