Midea MGBT-F120W/RN1

MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
19

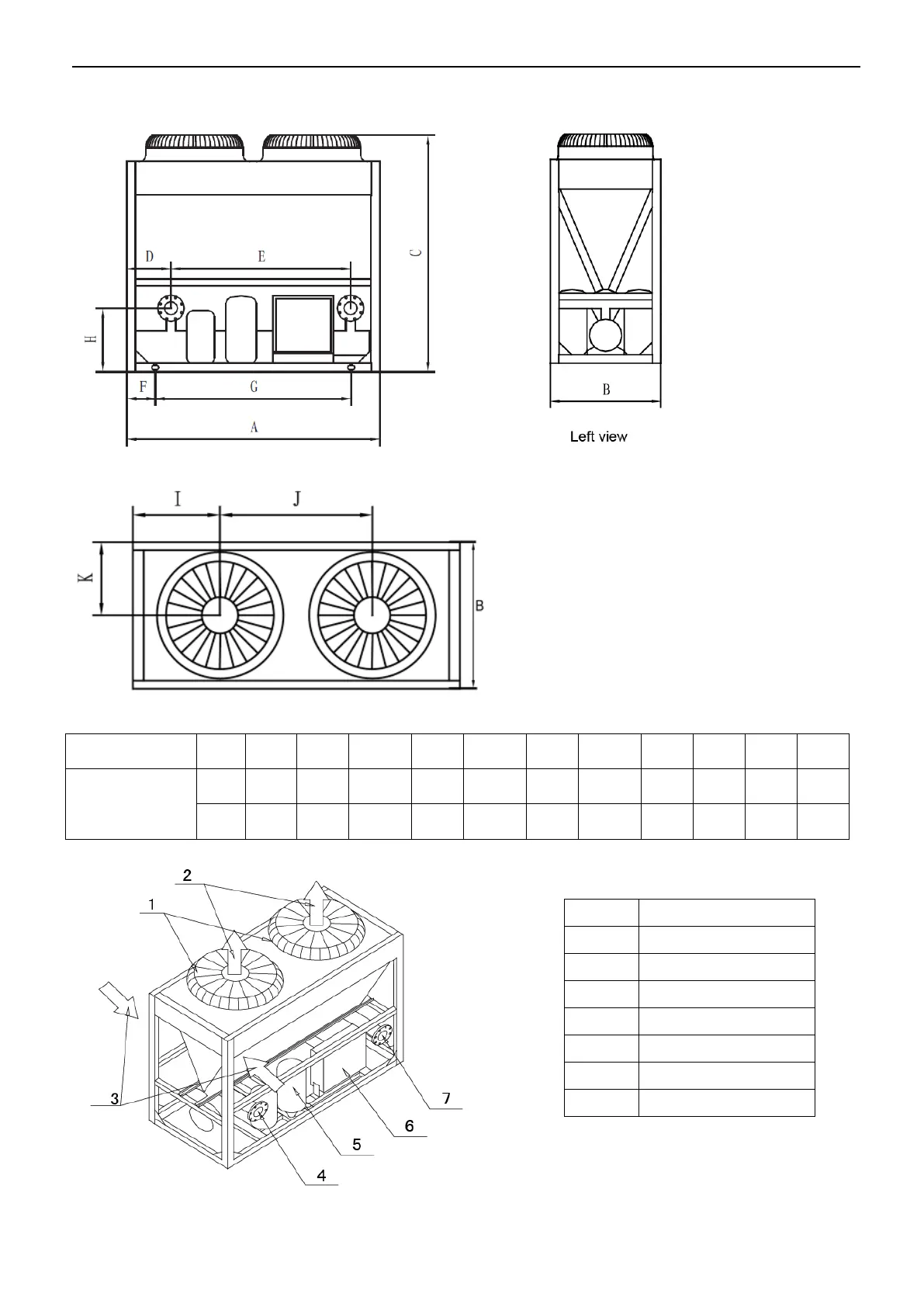

1.12 Outlook drawing: MGBT-F60W/RN1
Front view
Top view
Model
Unit
A
B
C
D
E
F
G
H
I
J
K
MGBT-F60W/RN1
mm
2000
900
1880
350
1420
225
1500
506
530
930
450
inch
78.74
35.4
74
13.78
55.91
8.86
59.06
19.92
20.87
36.61
17.72
No.
Name
1
Top cover
2
Air outlet
3
Air inlet
4
Water outlet
5
Compressor
6
Electric control box
7
Water inlet
