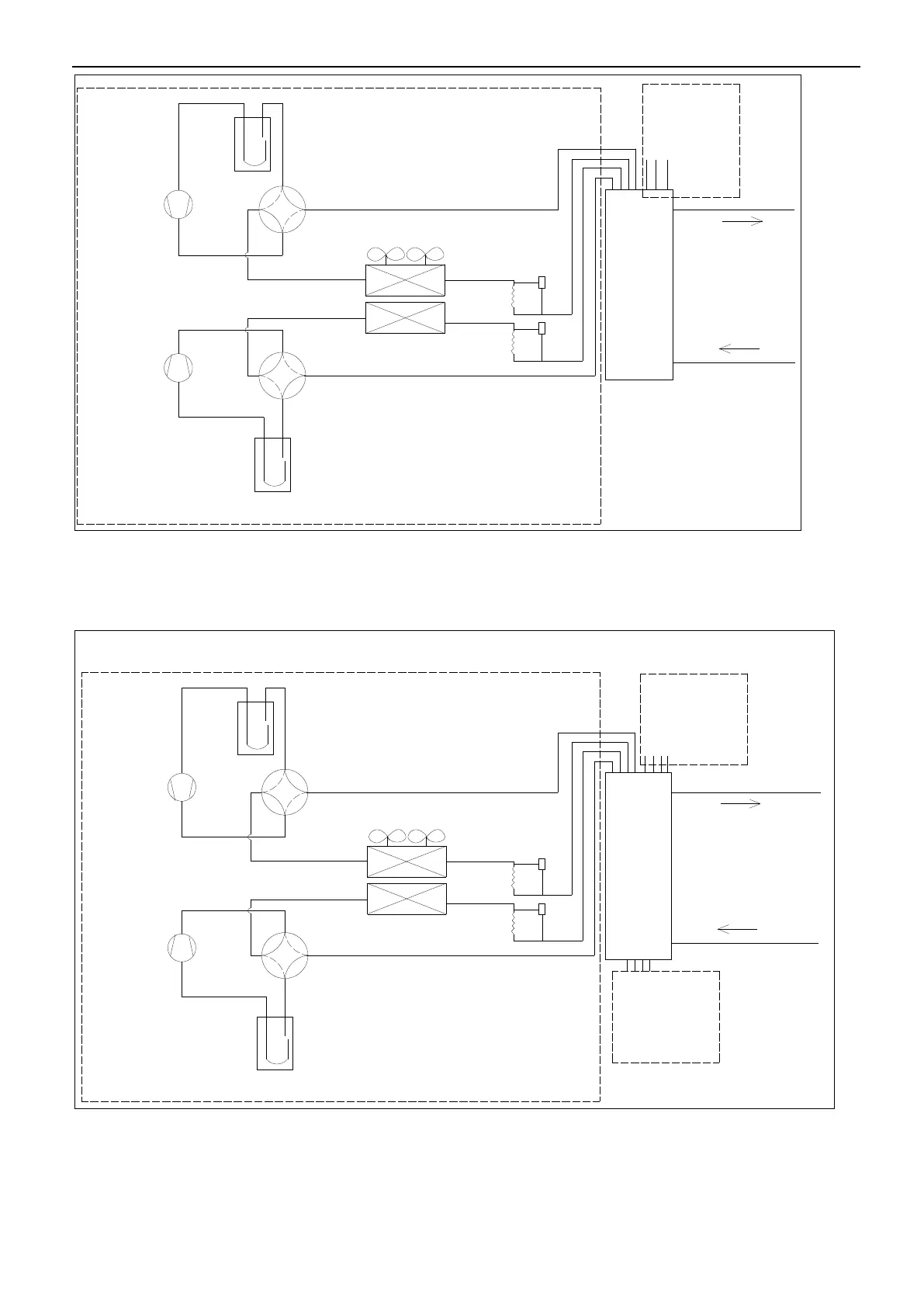

Midea MGBT-F120W/RN1

Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
34
Shell and tube
evaporator
Condenser
Water flow direction
Compressor B
low pressure cylinder B
4-Way valve A
Fan A
EEV
Capillary
EEV
Capillary
Fan B
4-Way valve B
Compressor A
low pressure cylinder A
Unit 2
Unit 1
3.5 MGBT-F180W/RN1
Each module has six compressors with three separate unit, one shell and tube evaporator for six refrigerant
systems.
Shell and tube evaporator
Condenser
Water flow direction
Compressor B
low pressure cylinder B
4-Way valve A
Fan A
EEV
Capillary
EEV
Unit 2
Unit 3
Capillary
Fan B
4-Way valve B
Compressor A
low pressure cylinder A
Unit 1
3.6 MGBT-F250W/RN1
Each module has eight compressors with two separate unit, one shell and tube evaporator for four refrigerant
systems
