Midea MGBT-F120W/RN1

Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
58
No.
Part Name
Qty
No.
Part Name
Qty
17
Compressor's cover
2
33
Ass'y C of left seal plate,condenser
1
18
Cover of screw
4
34
Condenser components of unit B
1
19
Temp sensor clip
6
35
Motor holder
2
20
The welding part of small baseplate
1
36
Side sealed board
7
21
Ass'y B of left seal plate,condenser
1
37
Clapboard supporting board
3
22
Accumulator cylinder
2
38
Motor bracket bonding parts
1
23
Digital compressor
1
39
Cover
2
24
Base
1
40
Motor
1
25
Base ass'y
1
41
Axial fan
1
26
electronic control box assembly of Air-cooled module
1
42
Top cover
1
26.1
Welding together pieces of electronic control box
1
43
Middle partition plate
1
26.2
Mounting plate with pieces of electrical
1
44
Top cover
1
26.3
30KW Air-cooled module control board assembly
1
45
Sealed board
1
26.4
Relay
2
46
Rear Cover
1
26.5
Contactor
2
47
Front cover
1
26.6
Transformer
1
48
About clapboard
2
26.7
7-terminal Block
1
49
Wired controller
1
26.8
Wire joint,4p
1
50
Total water temperature mouth
components
1
26.9
Wire joint
1
51
EEV solenoid
2
26.10
Terminal block
4
52
Pipe temperature sensor ass'y
2
26.11
Capacitor
1
53
Pipe temperature sensor ass'y
4
27
Scroll Compressor
1
54
Room temp. sensor ass'y
1
28
Drainage pan holder
2
55
Discharge temperature sensor
2
29
Electronic control box door
1
56
Pressure controller
2
30
Welding parts water tray
1
57
Pressure controller
2
31
Sensor clamp
1
58
Cover
1
32
Condenser components of unt A
1

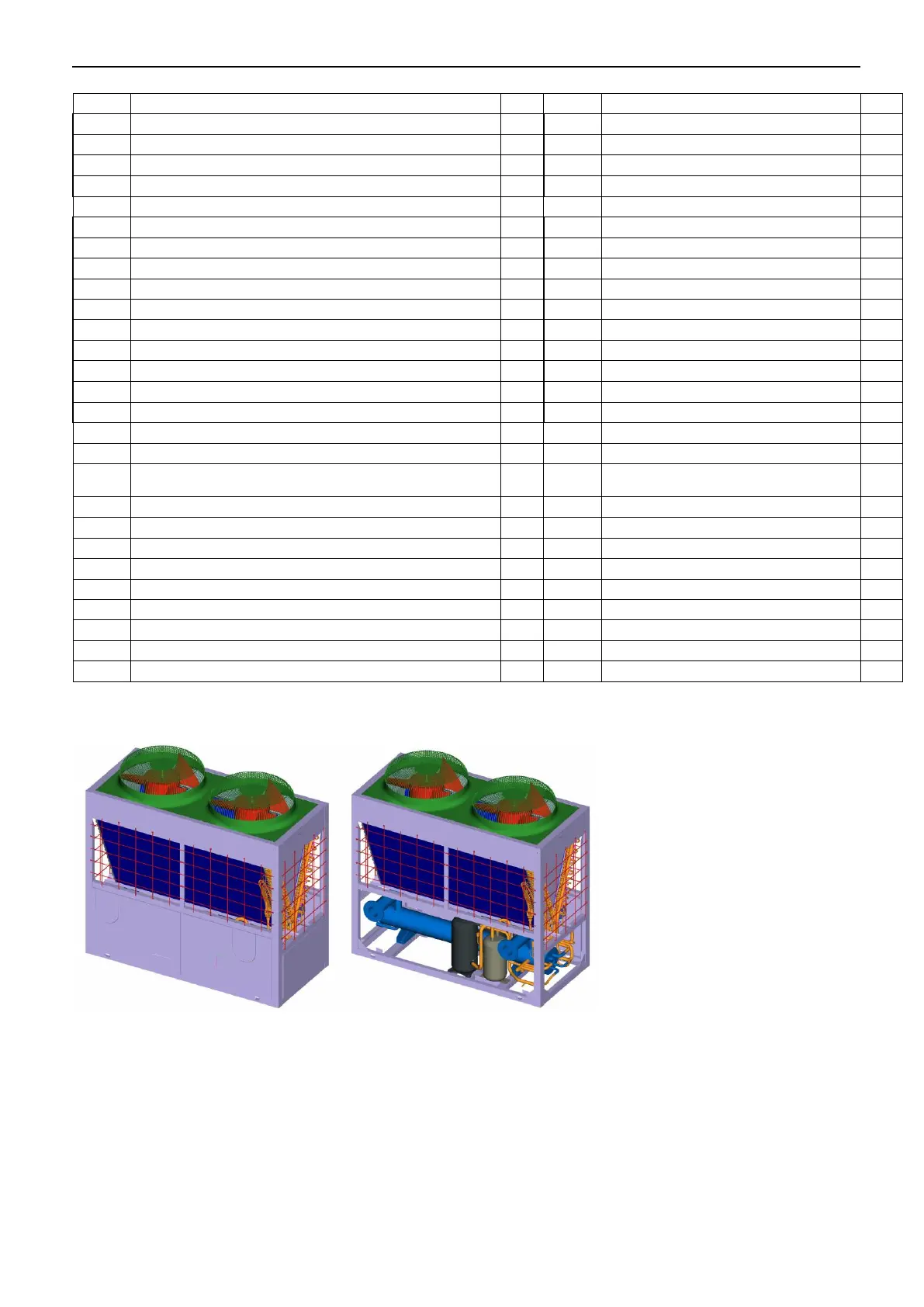

6.5 MGBT-F60W/RN1
