Midea MGBT-F120W/RN1

Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
72
No.
Part Name
Qty
No.
Part Name
Qty
1
Triangular reinforcement
12
55
Vertical beam roof rack
2
2
Left panel II
1
56
Top cover
8
3
Vertical beam in the frame
2
58
Front panel II
1
4
Strengthened beams II
2
59
Fixed part of panel
1
5
I panel fasteners
10
60
Bottom pillar I
1
6
I left panel
3
61
Pipe support IV
1
7
Inputting pipe ass'y of A unit evaporator
1
62
Front panel I
1
7.1
Electronic expansion valve
1
63
Pipe fixing clamp
20
7.2
Strainer
2
64
Reinforcing board I
1
8
Discharging pipe ass'y
8
65
Pipe support III
1
9
Inputting pipe II of B unit evaporator
1
66
Compressor wire joint
2
10
Inputting pipe ass'y of B unit evaporator
1
67
Clamp II, pipe
9
10.1
Electronic expansion valve
1
68
Pipe support VII
8
10.2
Strainer
2
69

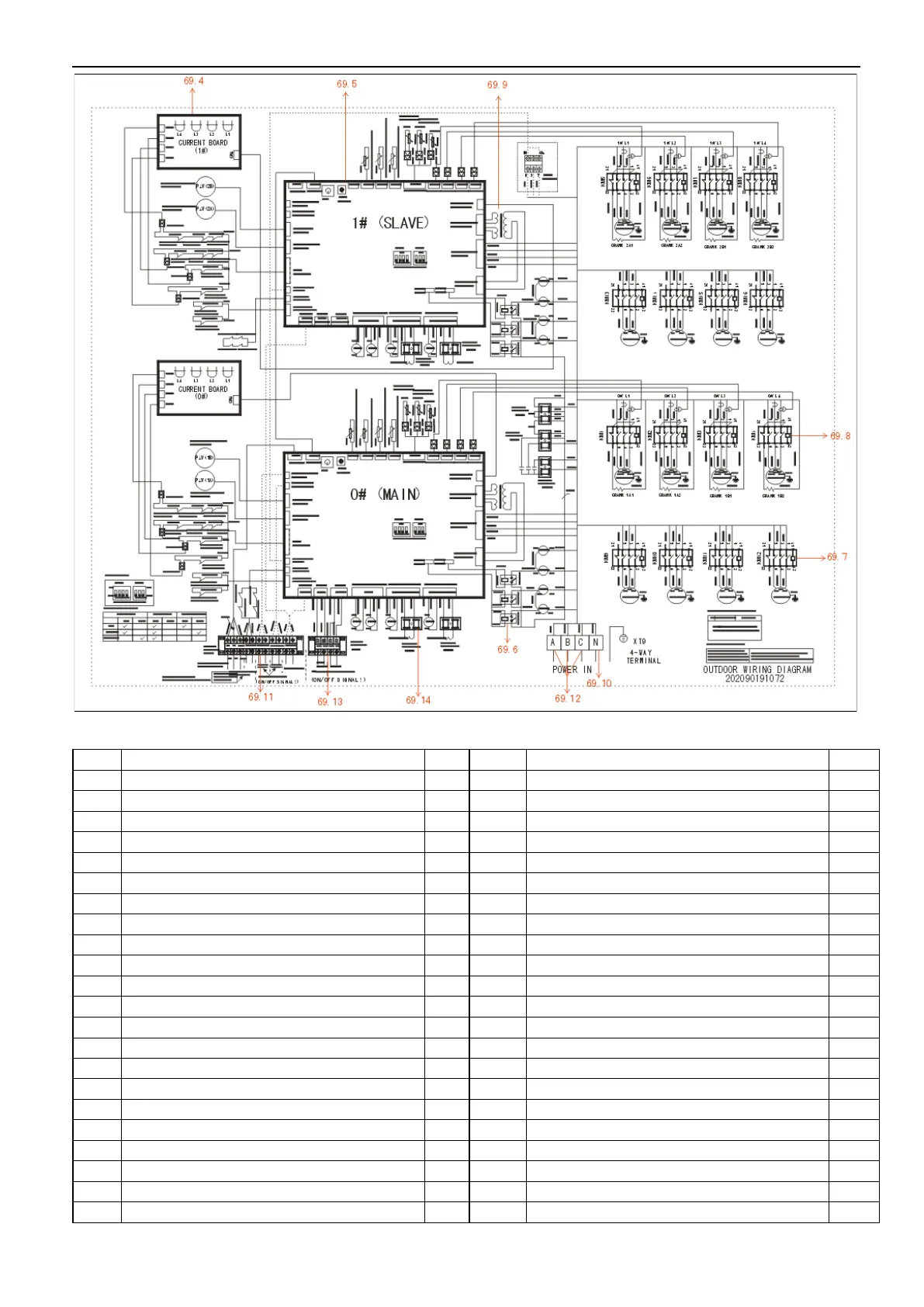

Electrical box ass'y of air modular
1
11
Column
4
69.1
Installation board II ass'y
1
12
Base welding parts
1
69.2
Installation board I ass'y
1
13
Base guard board
10
69.3
Electrical box welding parts
1
14
Inputting pipe ass'y of C unit evaporator
1
69.4
Current detction board ass'y of outdoor unit
2
14.1
Electronic expansion valve
1
69.5
Main board ass'y of outdoor unit
2
14.2
Strainer
2
69.6
Relay
6
15
Guard board welding parts
4
69.7
AC contactor
8
16
Four-way valve ass'y I
3
69.8
AC contactor
8
