102 Control system
Sub-module Query
Click the “Query”, system will query the operative status and display the information in the operation interface
according to the current selected sub-module. In the querying, a message box (see Fig. 4-72) would pop up:
“Query success” (see Fig. 4-73) to note you the query is successful and update the parameter interface (see
Fig. 4-74) base on the query result; whereas, “Query overtime” (see Fig. 4-75) would display. Provided that
sub-module hasn’t been selected, namely the sub-module address and the corresponding name are empty, a
message box (see Fig. 4-76) would pop up. The query performance failed.

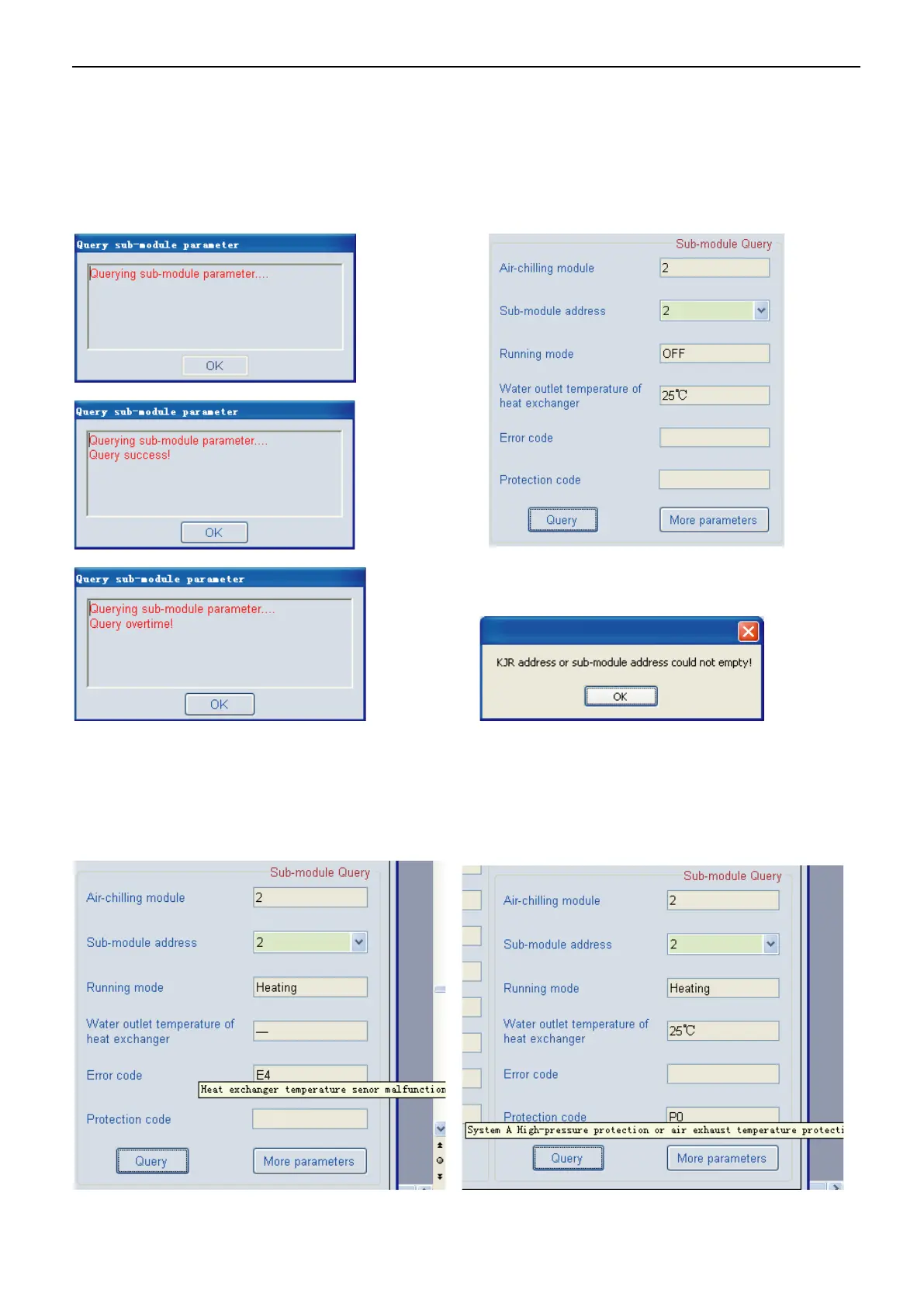

Fig.4-72
Fig.4-73 Fig.4-74
Fig.4-75 Fig.4-76
Provided that malfunction occur, the corresponding error code will show in the Sub-module query; Provided
that protection function perform, the corresponding protection code will show in the Sub-module query; if
move the mouse arrow to the these codes, a floating window as the follows Fig. 4-77 and 4-78 will
appearance to giving the specific error or protection information.
Fig.4-77 Fig.4-78
