R410a tropical air-cooled scroll chiller unit 60Hz MCAC-ATSM-2014-09
88 Control system
3. 2 Detail application manual

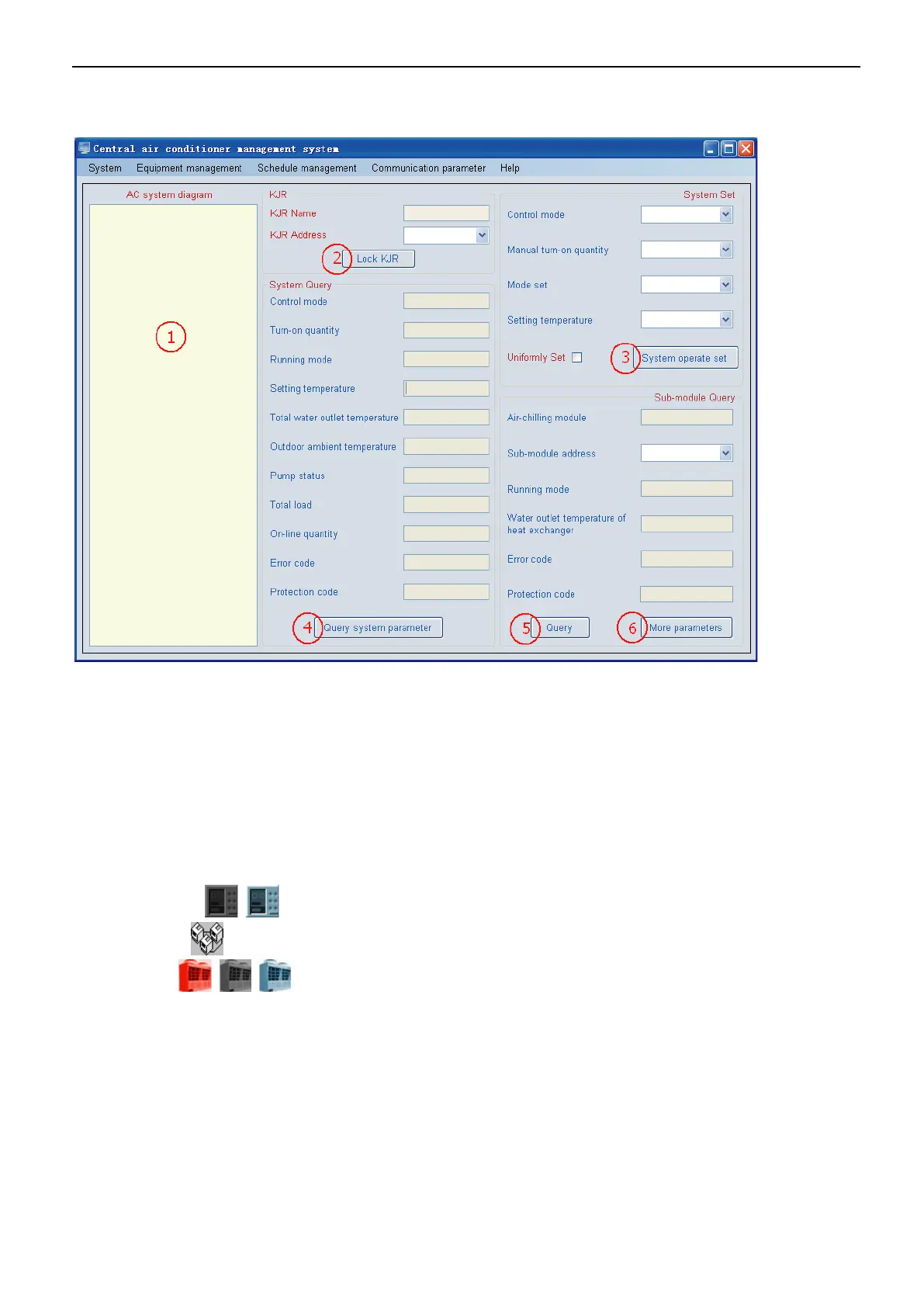

Fig.4-7
Main interface of this software as Fig.4-7, detail as follows:
1）Menu includes：“ System”、“Equipment management”、“Schedule management”、“Communication
parameter”、“ Help”。
2）System configuration illustration (The ① as Fig.4-7): Not more than16 wired controllers could be
connected to the computer. This kind of wired controller could be connected to the module group of : 25KW、
30KW、60KW、120KW、180KW etc. Total 16 sub-modules could be jointed to a wired controller. (For the
Maximum sub-module quantity could be jointed to a wired controller, the quantity conversion between module
group and sub-module, please refer to “Software application”.
Wired controller：
Module group：
Sub-module：
For the meaning of the different color represent, please see below picture. AC system diagram in Software
Application”
