Midea MGBT-F180W/DN1

MCAC-ATSM-2014-09 R410a tropical air-cooled scroll chiller unit 60Hz
Installation 135
3.1 MGBT-F25W/DN1, MGBT-D25W/DN1, MGBT-D30W/DN1, MGBT-F30W/DN1

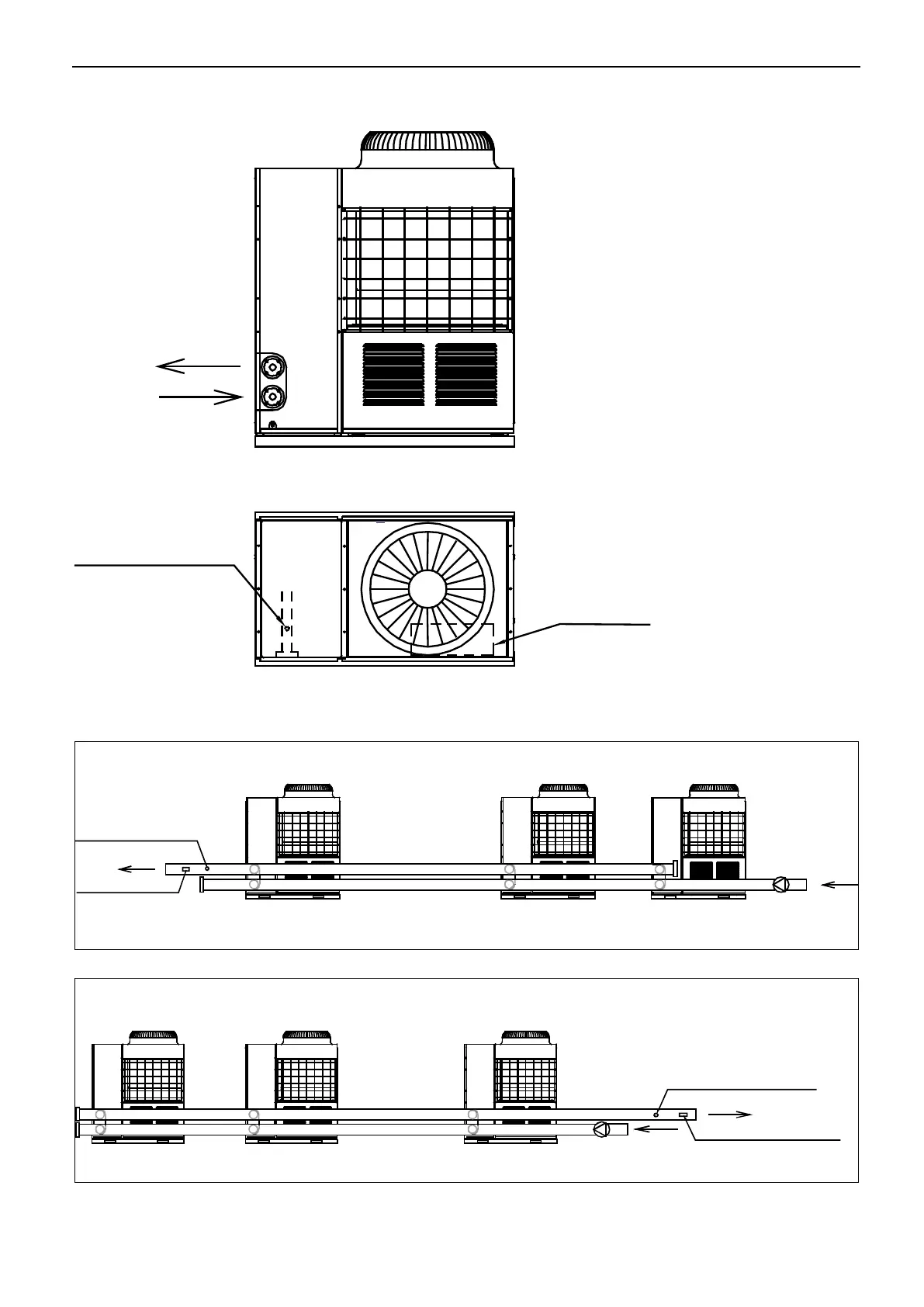

Installation of single-module water system pipeline
Total water outlet
temperature sensor
Water outlet
Water inlet
Electric
control box
Installation of multi-module water system pipeline
1) Installation mode I (recommended installation mode)
No.n module
No.(n-1) address
No.1 module
No.(n-1) module
No.(n-2) address
No.0 address
less than 16 modules
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position
Water flow switch
Pump
2) Installation mode II
less than 16 modules
No.n module
No.(n-1) address
No.1 moduleNo.(n-1) module
No.(n-2) address No.0 address
Pump
Drill dead hole at the
position, and move the
total effluent tem perature
sensor at No.0 address to
the position
Water flow switch
n :the module quantity, max 16
