R410a tropical air-cooled scroll chiller unit 60Hz MCAC-ATSM-2014-09
90 Control system
3.3 Menu application

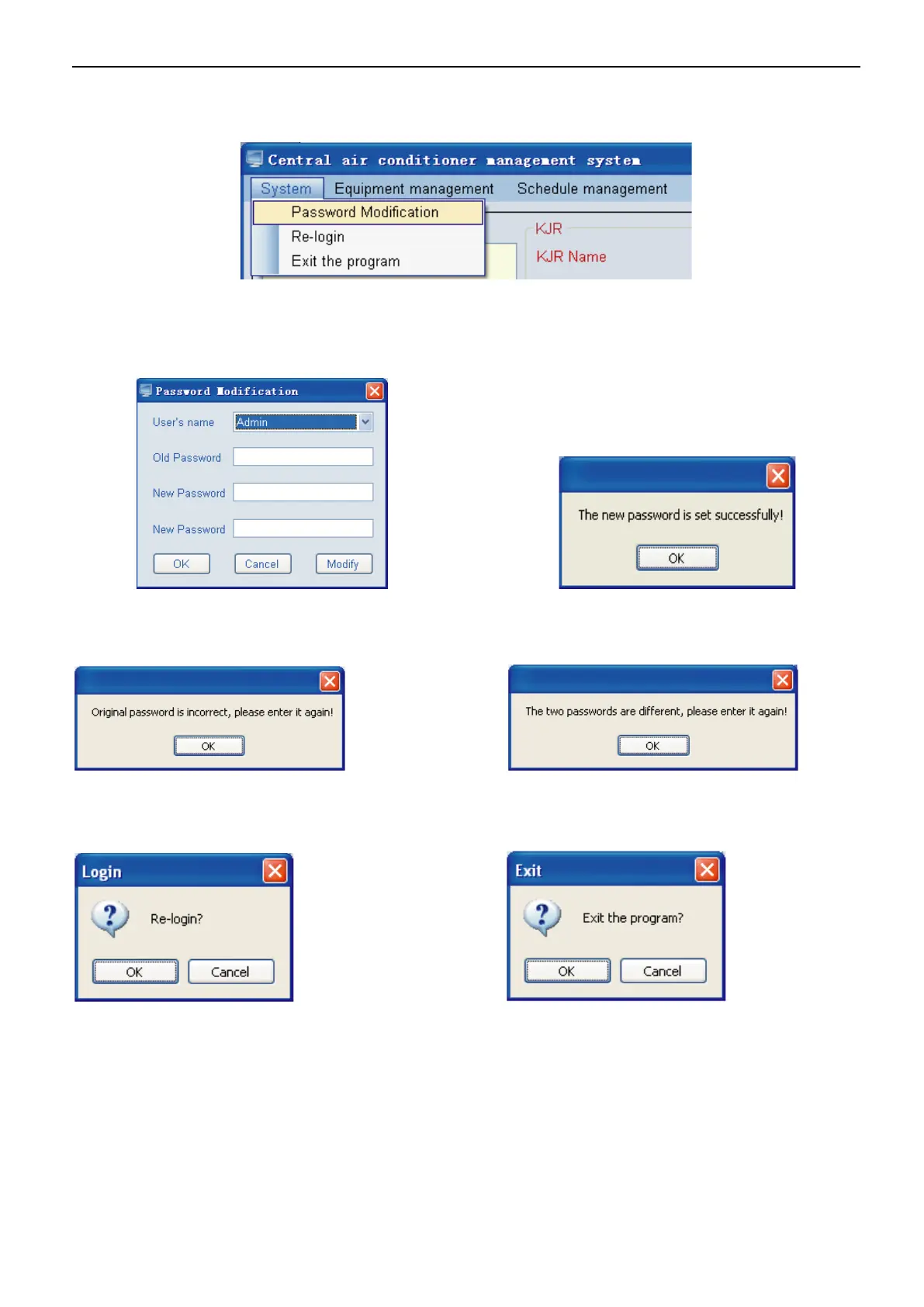

1）“ System” includes：“ Password Modification”、“Re-login”、“Exit the program”。
Fig.4-11
○
1
Click “Password Modification” will display window as Fig.4-12 input old password as requirement, and
then reset a new password, click “OK” or “Modify”, window as Fig.4-13t will show that new password
has been already successful set;
Fig.4-12 Fig.4-13
If input an old password error, window as Fig.4-14 will show; if the new passwords be input do not match, the
message box as Fig.4-15 will display.
Fig.4-14 Fig.4-15
②Click “Re-login”, window as Fig. 4-16 will display that interface ask user whether re-login the system, if yes,
please click “OK Click “Re-login”, system will close the main interface and enter to the login interface again.
Fig.4-16 Fig.4-17
③Click “Exit the program” to quit the program, while click “Cancel”, system will not quit，as Fig. 4-17.
2）“ Equipment management” includes：“ KJR Setting”、“Module parameter setting”、“Outdoor module
setting”,as Fig. 4-17.
