MCAC-ATSM-2014-09 R410a tropical air-cooled scroll chiller unit 60Hz
Control system 89

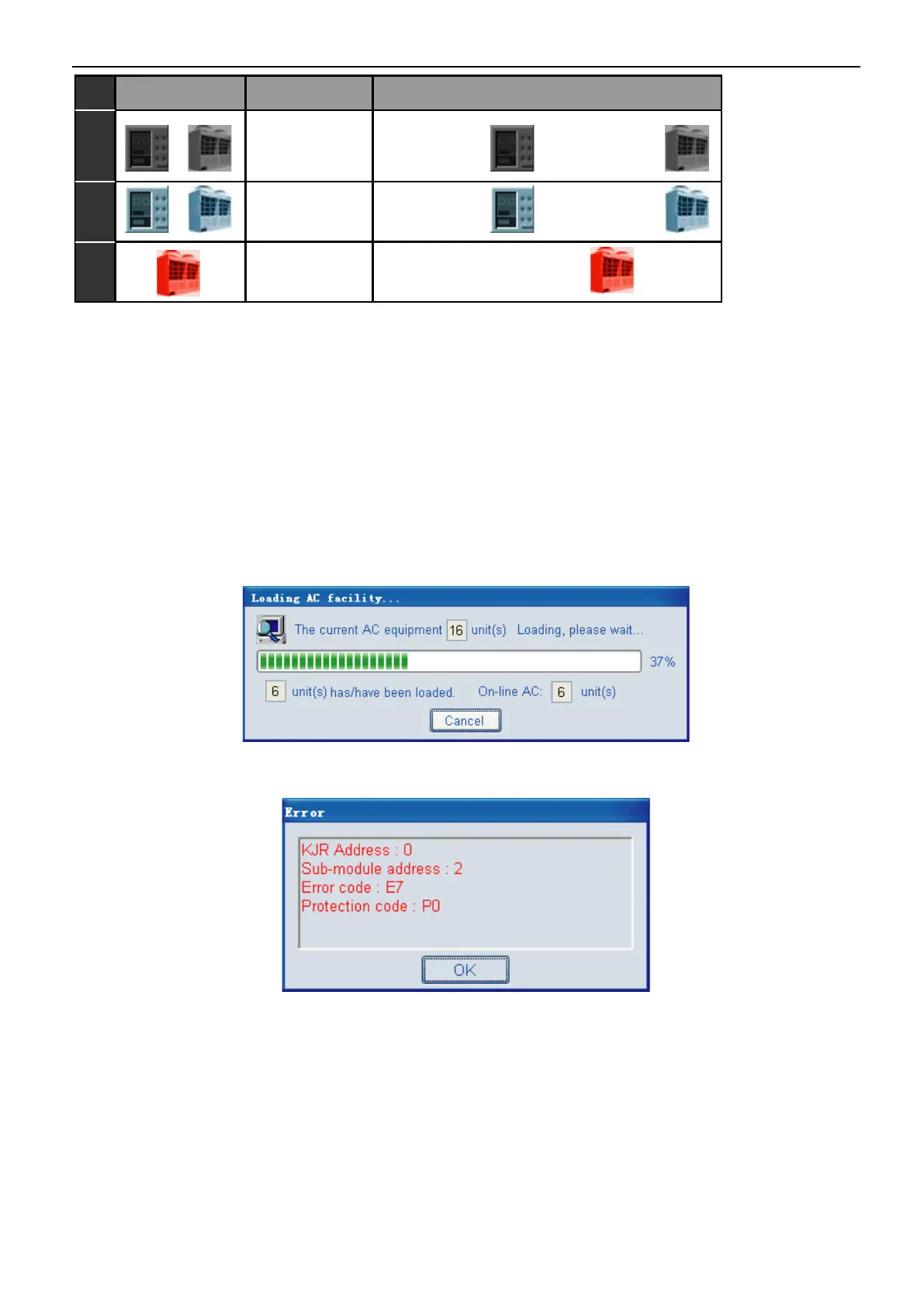

No. Color Status Equipment
1
、
OFF-LINE
CONTROLLER（ ）、SUB-MODULE（ ）
2
、
NORMAL
CONTROLLER（ ）、SUB-MODULE（ ）
3
ON-LINEERROR
SUB-MODULE（ ）
Fig.4-8
3）”Lock KJR” (The ② in Fig.4-7): To lock or unlock the current selected wired controller to limit the wired
controller setting the refrigeration system.
4）”System operate set” (The ③ in Fig.4-7): To set the operation of the selected refrigeration system.
5）”Query system parameter” (The ④ in Fig.4-7), Press this key to query the selected refrigeration system,
the current operating parameter will be display.
6）”Query” (The ⑤ in Fig.4-7): Press this key to query the selected sub-module, the current operating
parameter will be display.
7）”More parameters” (The ⑥ in Fig.4-7): More operating parameter will be display.
If the software has been configured, then will automatic scan the configured system while open the software,
the scan interface display as Fig.4-9.
Fig.4-9
Provided that malfunction occur, window as Fig.4-10.
Fig.4-10
