Midea MGBT-F180W/DN1

R410a tropical air-cooled scroll chiller unit 60Hz MCAC-ATSM-2014-09
2.3 MGBT-F120W/DN1

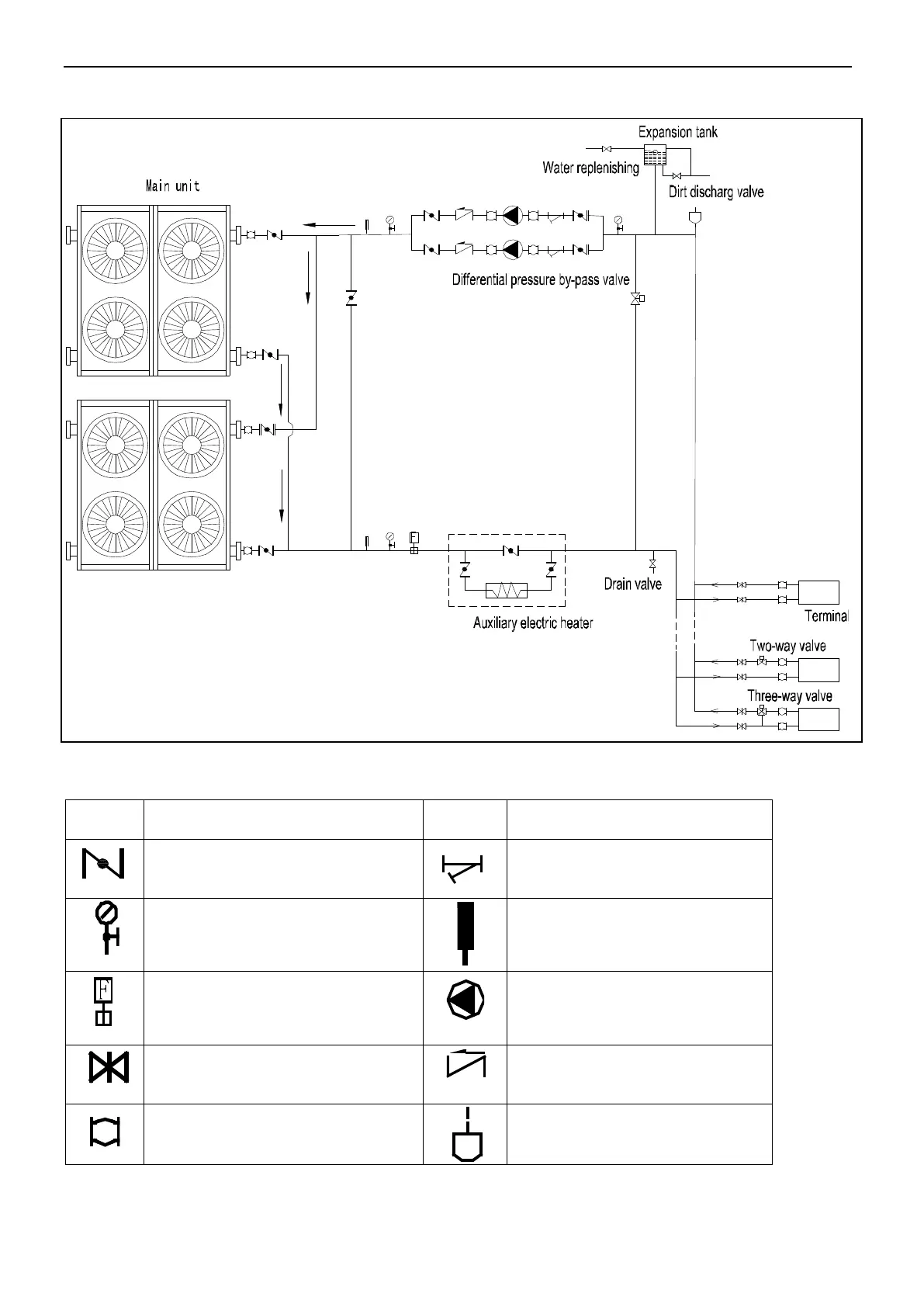

The table below describes the symbols.
Symbol
Symbol explanation
Symbol
Symbol explanation
Stop valve
Y-shaped filter
Pressure gauge
Thermometer
Water flow switch
Circulating pump
Gate valve
Check valve
Flexible joint
Automatic discharge valve
