MCAC-ATSM-2014-09 R410a tropical air-cooled scroll chiller unit 60Hz
Control system 105

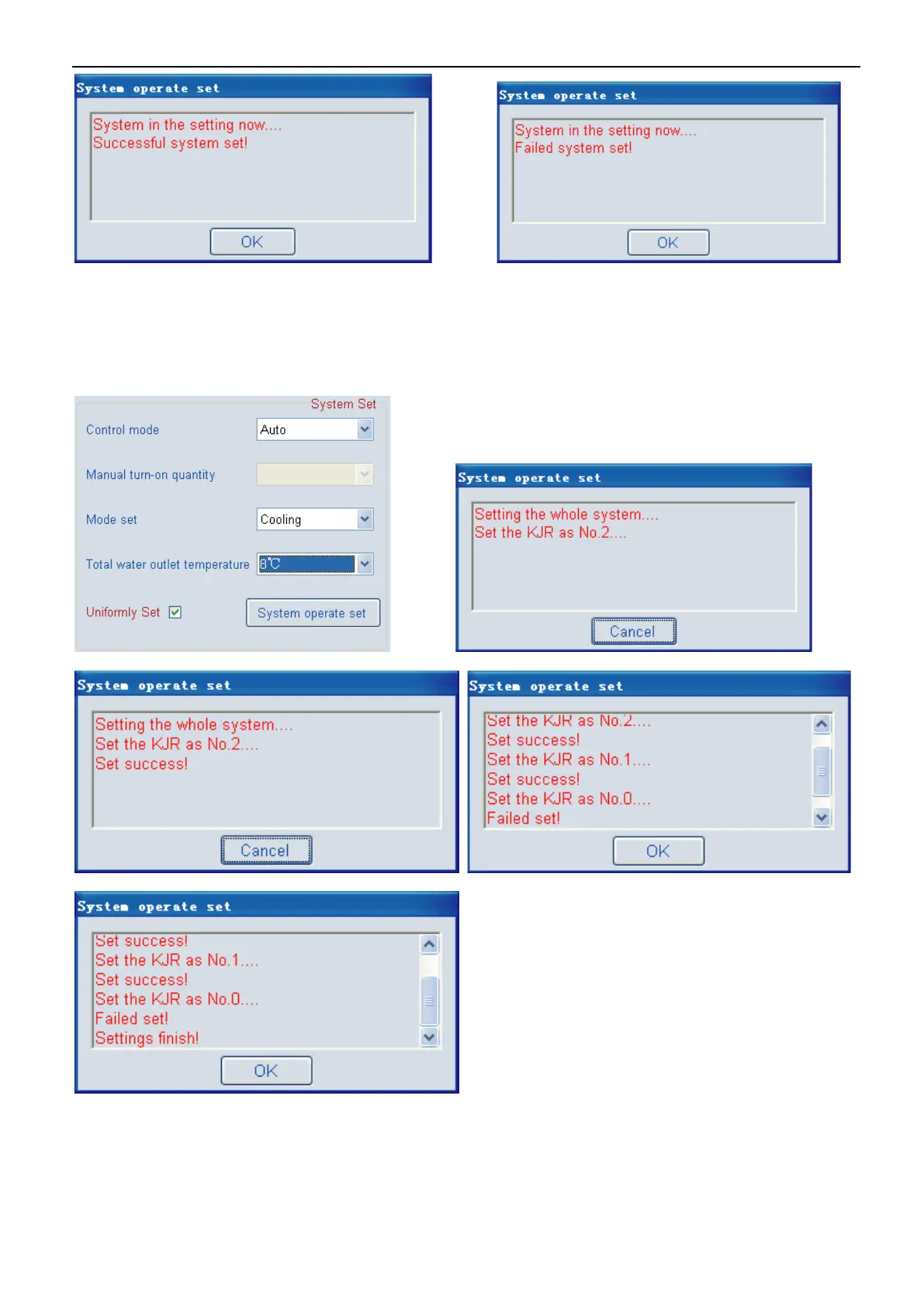

Fig.4-90 Fig.4-91
3）Uniformly set all wired controllers: Tick Uniformly Set as Fig. 4-92, and then select the corresponding
parameters, click the System Operate Set, system starts to set up. A message box as Fig. 4-93 will display
during the setting. Once successful setting, a message box as Fig. 4-94 will display to inform you Successful
System Set, whereas, Failed System set as Fig. 4-95 will display. After all setting done, a message box (see
Fig. 4-96) will display informing “Setting Finish”.
Fig.4-92 Fig.4-93
Fig.4-94 Fig.4-95
Fig.4-96
Remark ：
The computer can use the names of serial ports for querying:
1、Right-click the “My Computer” and select the “Properties” as Fig. 4-97.
To Next Page
