MCAC-ATSM-2014-09 R410a tropical air-cooled scroll chiller unit 60Hz
Installation 137

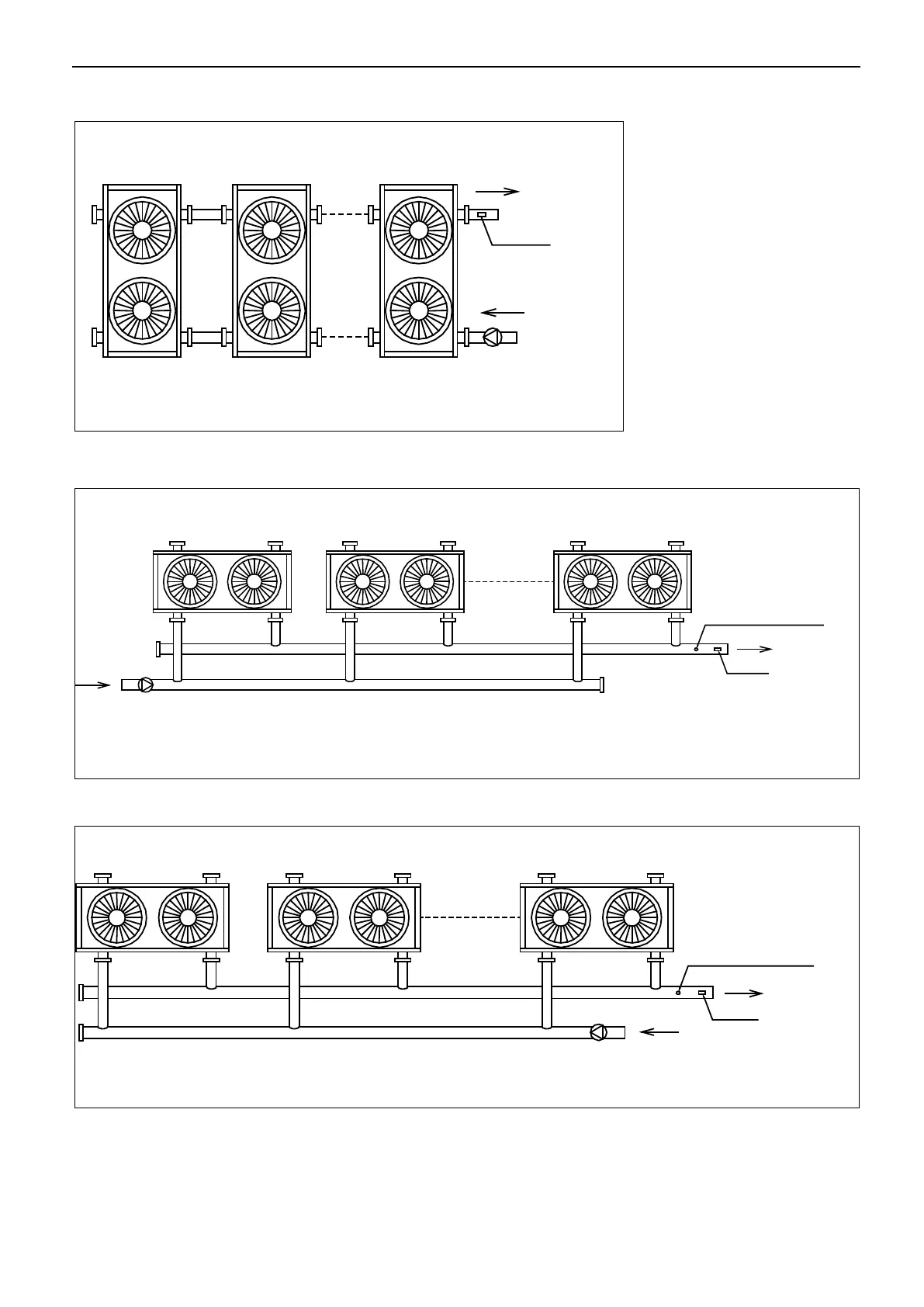

2) Installation mode II
No.n module
No.(n-1) address
No.1 moduleNo.(n-1) module
No.(n-2) address No.0 address
(less than 6 modules)
Pump
Water flow switch
n :the module quantity, max 6
3) Installation mode III (recommended installation mode)
No.n module
No.(n-1) address
No.1 moduleNo.(n-1) module
No.(n-2) address No.0 address
Pump
(installation mode A: less than 16 modules)
Water flow switch
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position
n :the module quantity, max 16
(installation mode B: less than 16 modules)
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position
Water flow switch
Pump
No.n module No.1 moduleNo.(n-1) module
No.(n-1) address No.(n-2) address No.0 address
n :the module quantity, max 16
