MCAC-ATSM-2014-09 R410a tropical air-cooled scroll chiller unit 60Hz
Wired Controller 161

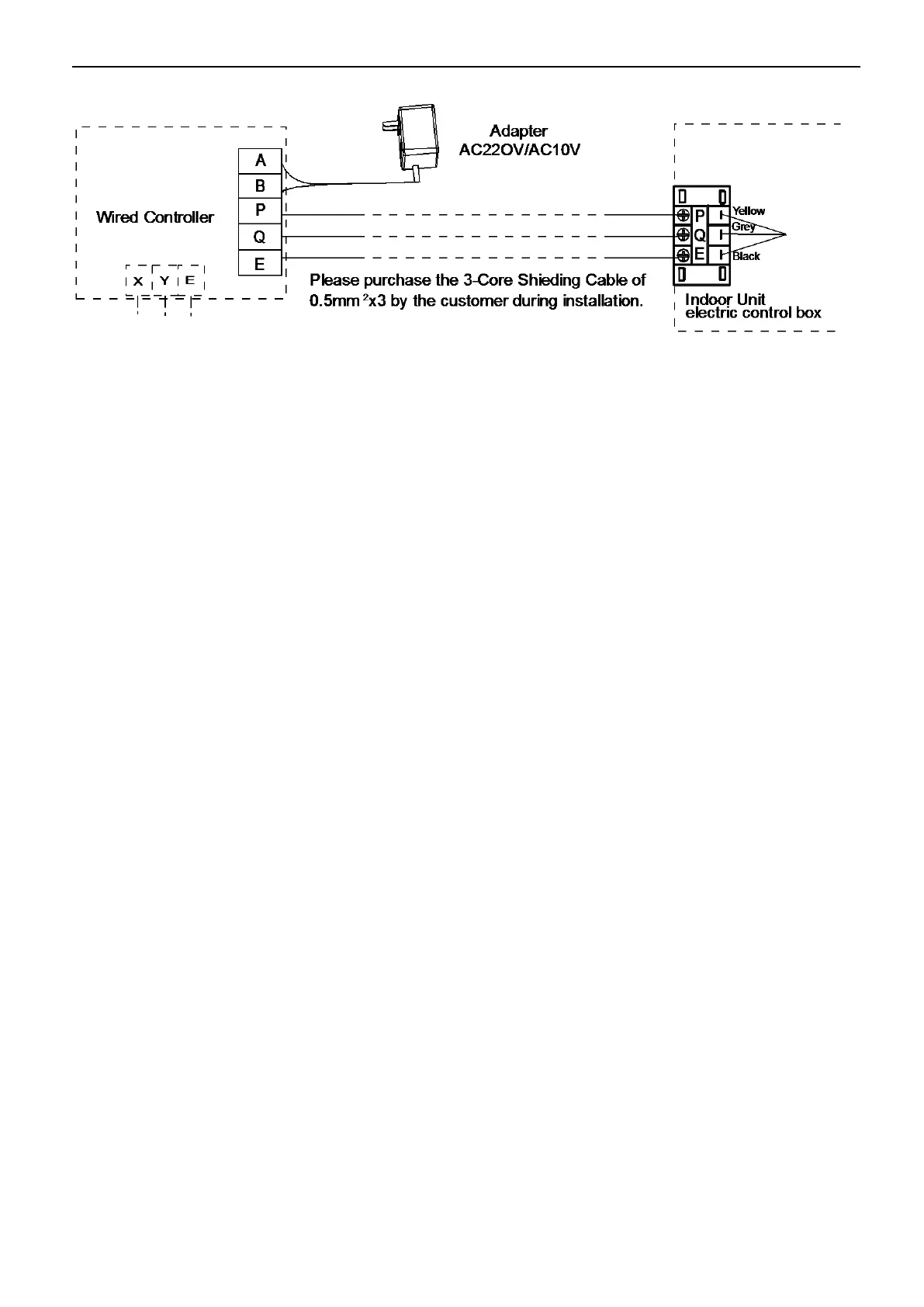

The wiring procedure and principles are shown in the figure:
1.7 Basic conditions of operating the wired controller：
1) Applicable range of supply voltage: Input voltage is 10V AC.
2) Operating environment temperature of wired controller: -10°C~+43°C.
3) Operating RH of wired controller: RH 40%~RH90%.
1.8 Main functions of this wired controller as follows:
1) Touch key operation;
2) LCD displays operation parameters;
3) Multiple timer;
4) Buzzer prompt tone and alarm functions;
5) Real-time clock function.
Note:
The MODBUS gateway can be customized, the MODBUS protocol built in wired controller
KJRM-120D/BMK-E, through the X/Y/E communication port of KJRM-120D/BMK-E to realize BMS system.
