MCAC-ATSM-2014-09 R410a tropical air-cooled scroll chiller unit 60Hz
Capacity tables 61
No.
Part Name
Qty
No.
Part Name
Qty
1
Column
4
43.1
Four-way valve
1
2
About the protective screen
4
43.2
Pressure controller
1
3
Network Rail fixed plate II
2
43.3
Meter connector
2
4
Vertical beam in the frame
2
44
Evaporator output pipe ass'y
1
5
Roof rack crossbar
2
45
Evaporator output pipe ass'y
1
6
I sealed connector condenser
3
46
Input pipe ass'y of
evaporator(unit A)
1
7
Vertical beam roof rack
2
47
Welded base plate
1
8
Condenser sealed connector II
3
48
Left panel II
1
9
Roof rack beam welding parts
2
49
Strengthened beams II
2
10
Top cover
6
50
I left panel
3
11
Rear Panel II
1
51
Panel fasteners II
8
12
Evaporator output ass'y
1
52
Triangular reinforcement
12
13
I panel fasteners
10
53
Trunking II
1
14
Tube fixed plate III
12
54
II trunking cover
1
15
Block III electronic control box
installed
2
55
Four-way valve assembly Ⅳ
1
16
Rear Panel I
1
55.1
Four-way valve
1
17
Block II Electronic Control Box
Installation
2
55.2
Pressure controller
1
18
Electronic control box cover panel
B
1
55.3
Meter connector
2

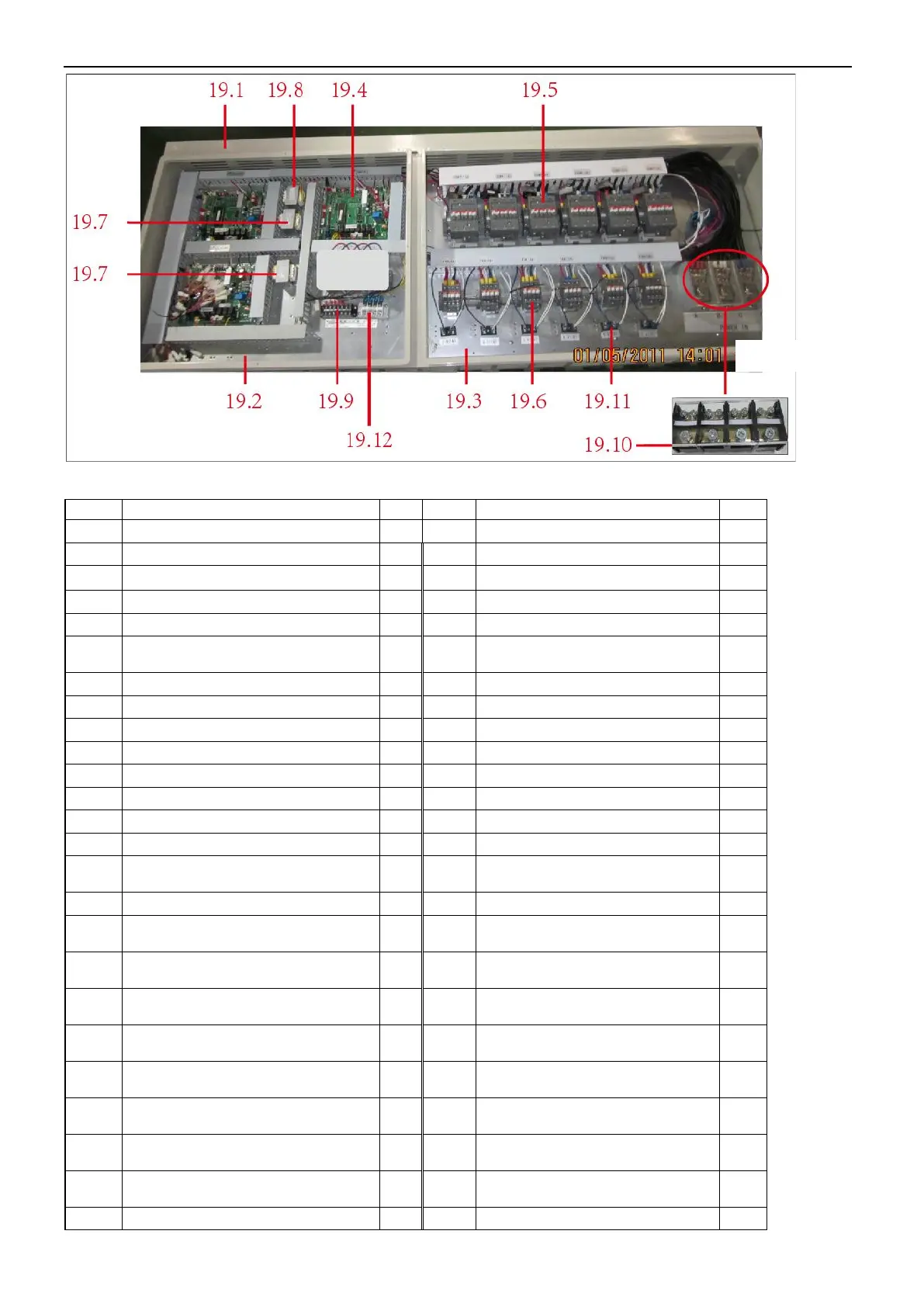

19
electronic control box assembly of
Air-cooled module
1
56
Input pipe ass'y of
evaporator(unit D)
1
19.1
Welded parts of electric control box
1
57
Input pipe ass'y of
evaporator(unit E)
1
19.2
Electrical component mounting
plate I
1
58
Input pipe of evaporator
ass'y(unit F)
1
19.3
Electrical component mounting
plate II
1
59
Input pipe ass'y of
evaporator(unit C)
1
19.4
Outdoor control board assembly
3
60
Condenser output transition
tube(unit C)
1
19.5
AC contactor
6
61
Condenser output transition
tube(unit D)
1
19.6
AC contactor
6
62
Tube fixed plate Ⅳ
1
