MCAC-ATSM-2014-09 R410a tropical air-cooled scroll chiller unit 60Hz
Control system 93

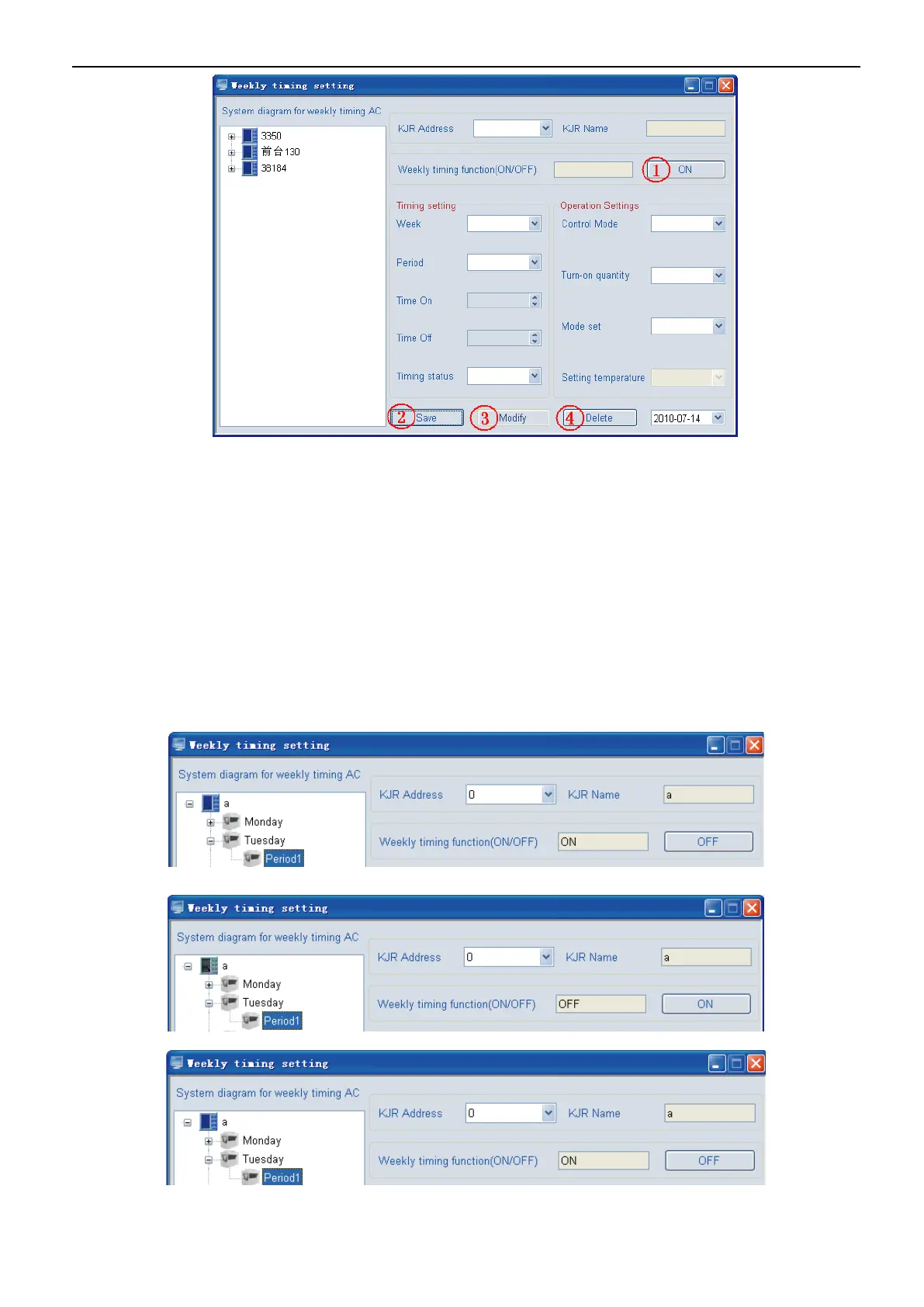

Fig.4-29
a、KJR Address——Wired controller address, each wired controller represents one refrigeration system.
b、Weekly timing function―－Display the weekly set status in the current wired controller is ON or OFF (ON or
OFF could display as long as at least one weekly schedule has been set, otherwise, nothing would display.)
c、Detail weekly timing parameter―― Week, Period, Time On, Time Off, Timing Status, Control Mode,
Turn-on quantity, Mode set and Setting temp..
d、Timing ON/OFF key for controlling the weekly timing wired controller (See the ① key in the figure ) ――
when Weekly Timing Function is ON, the key shows OFF (see Fig. 4-30), once click the key, all weekly timing
function would be turned off, and then the Weekly Timing Function displays OFF, while the key shows ON
（see Fig. 4-31）; when Weekly Timing Function is OFF, the key shows ON (see Fig. 4-38), once click the key,
all weekly timing function would be turned on, and then the Weekly Timing Function displays ON, while the
key shows OFF （see Fig. 4-32）
Fig.4-30
Fig.4-32
Fig.4-31
