MCAC-ATSM-2014-09 R410a tropical air-cooled scroll chiller unit 60Hz
Control system 101
Fig.4-68 Fig.4-69

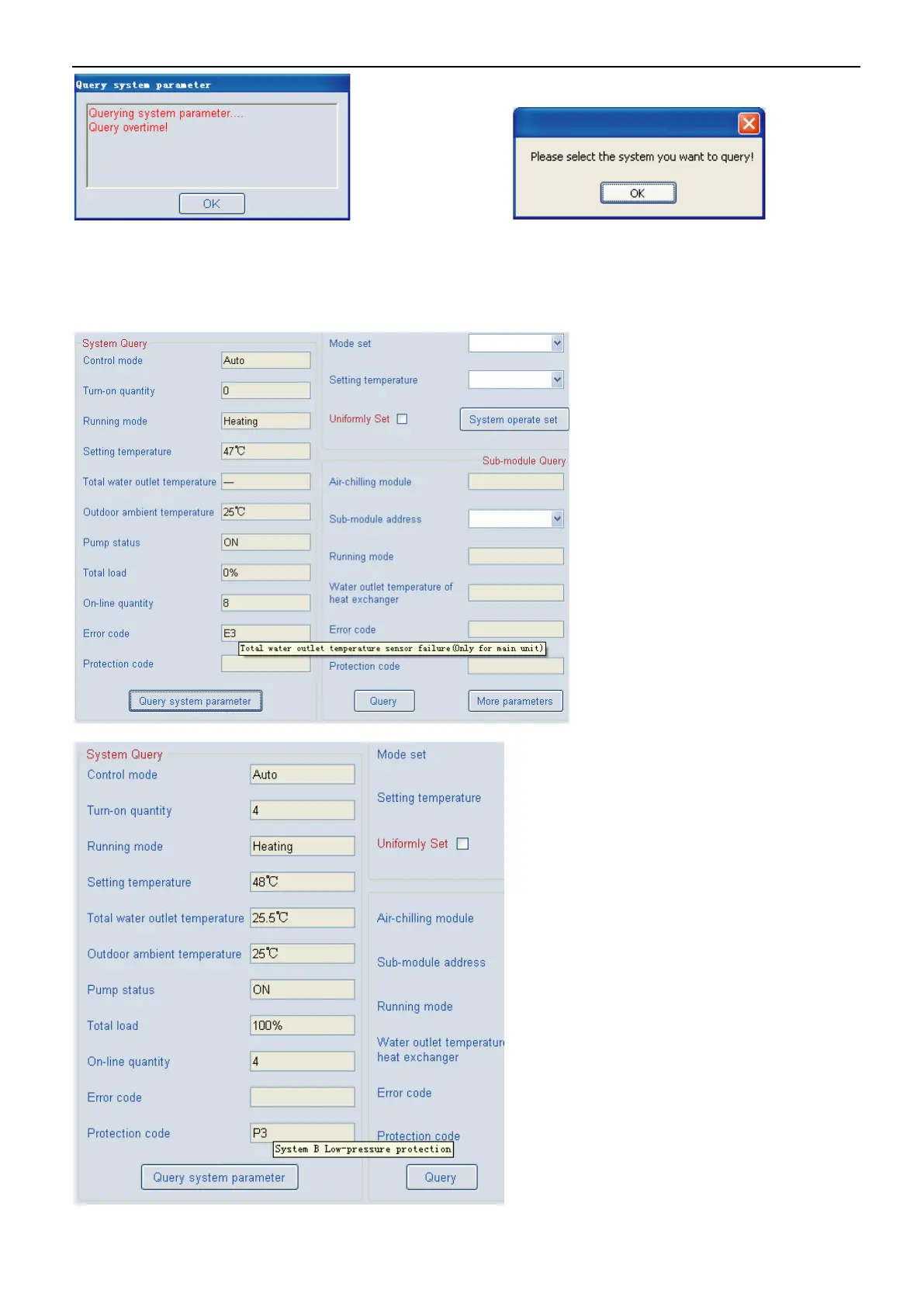

Provided that malfunction occur, the corresponding error code will show in the System Query; Provided that
protection function perform, the corresponding protection code will show in the System Query; if move the
mouse arrow to the these codes, a floating window as the follows Fig. 4-70 and 4-71 will appearance to giving
the specific error or protection information.
Fig.4-70
Fig.4-71
