Midea MGBT-F25W/DN1

R410a tropical air-cooled scroll chiller unit 60Hz MCAC-ATSM-2014-09

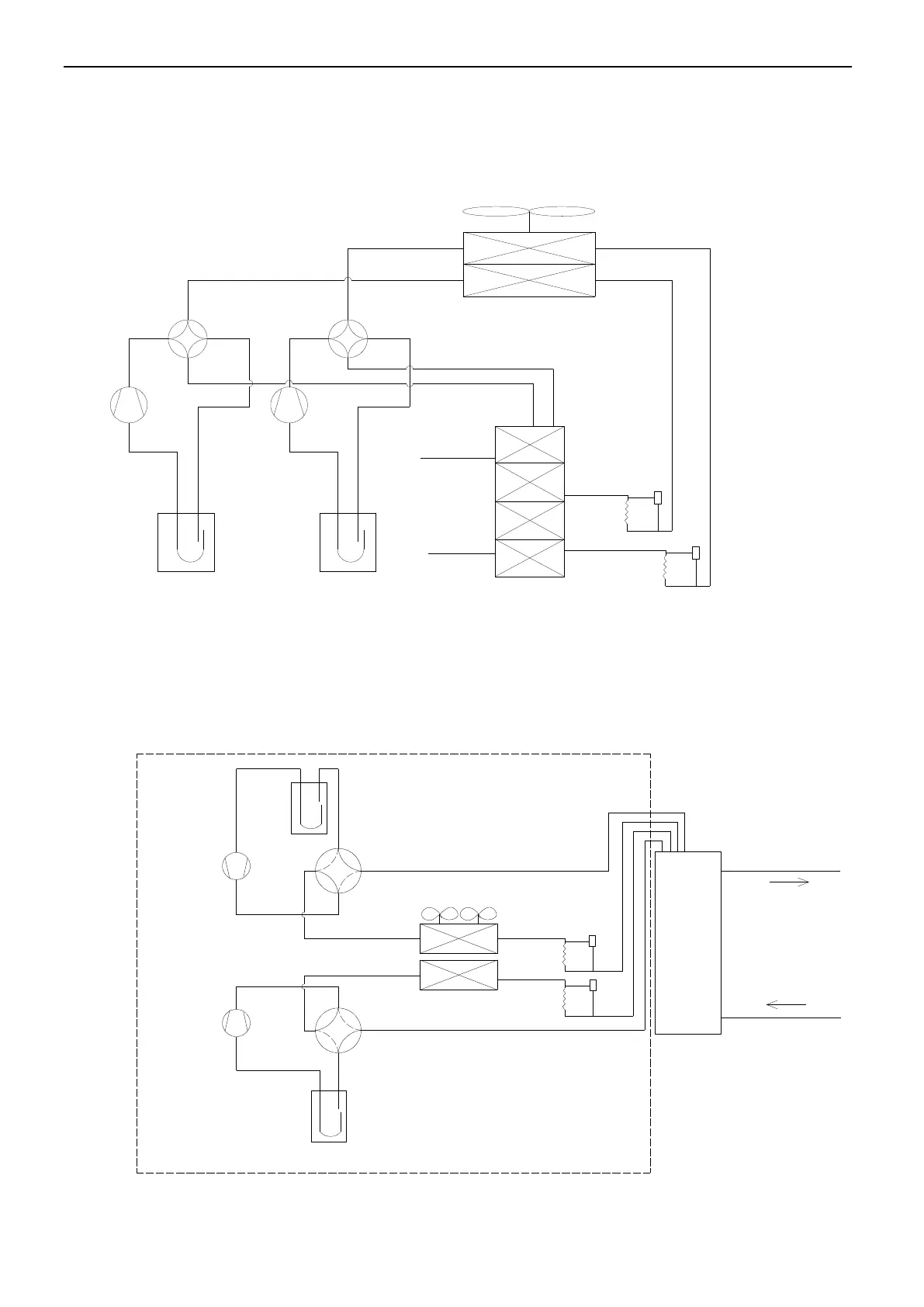

3. Refrigeration system drawing
3.1 MGBT-F25W/DN1, MGBT-D25W/DN1, MGBT-F30W/DN1, MGBT-D30W/DN1
Each module has two compressors with two separate A/C systems, one double-pipe evaporate for two
systems.
Compressor A
Compressor B
Low pressure cylinder A
Low pressure cylinder B
4-way valve A
4-way valve B
Condenser
Evaporator
(Double-pipe heat exchanger)
Fan
Water outlet
Water inlet
EXV
EXV
Capillary
Capillary
3.2 MGBT-F60W/DN1
Each module has two compressors with two separate A/C system, one shell and tube evaporate for two
systems.
Shell-tube
evaporator
Condenser
Water flow direction
Compressor B
low pressure cylinder B
4-Way valve A
Fan A
EXV
Capillary
EXV
Capillary
Fan B
4-Way valve B
Compressor A
low pressure cylinder A
