MCAC-ATSM-2014-09 R410a tropical air-cooled scroll chiller unit 60Hz
Control system 103
More parameters

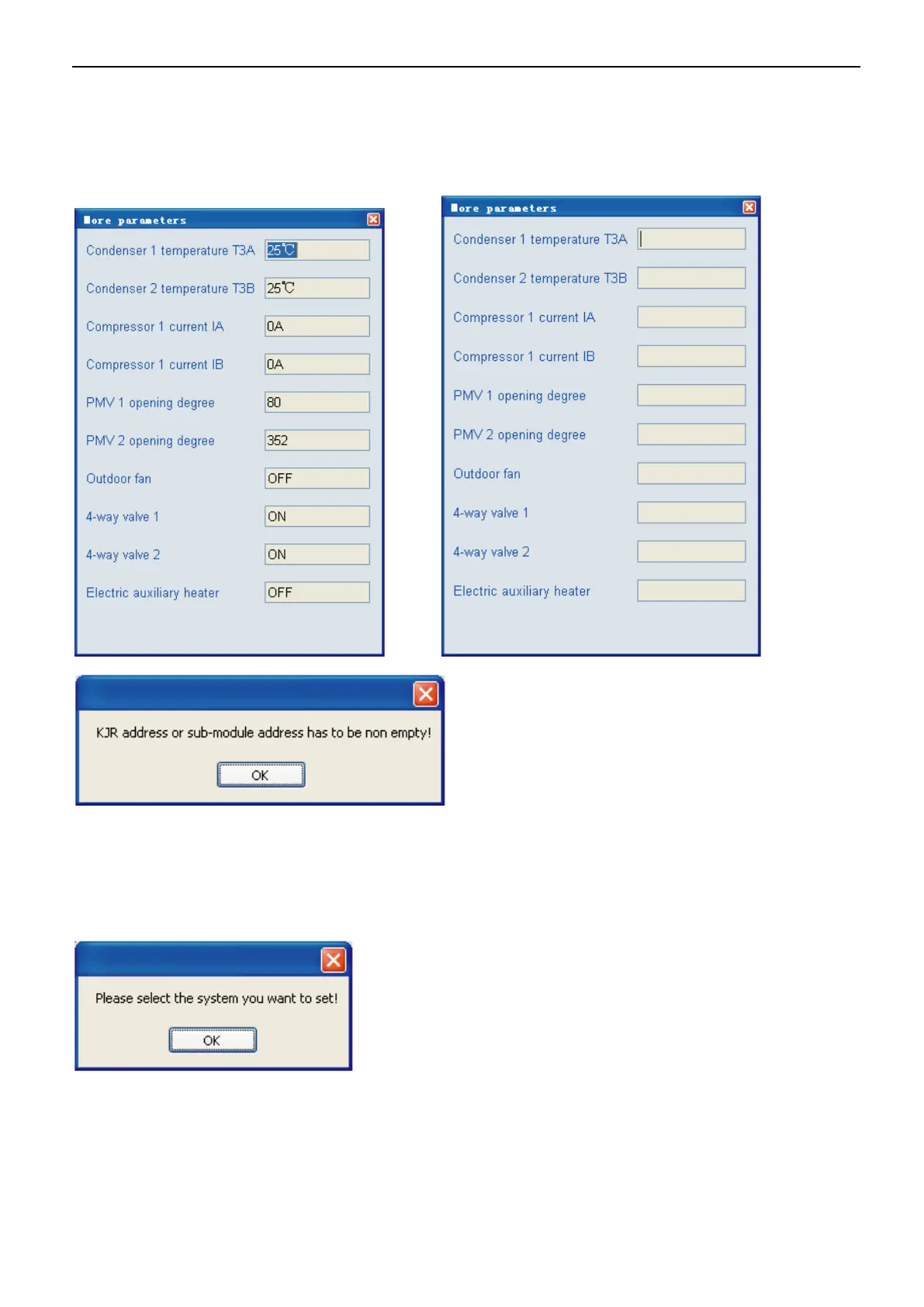

Click More Parameters, you could query more data (See Fig.4-79). If the sub-module hasn’t been selected, a
message box as Fig. 4-80 would show. You must click a certain sub-module firstly, and then to click the “More
parameters” key, more parameter could be queried; a message box (See Fig.4-81) will display informing more
parameters are empty.
Fig.4-79 Fig.4-80
Fig.4-81
System operate set
1）During setting, message boxes as following might display.
Click the “System operate set” in the conditioner of without wired controller has been selected, a message
box as Fig. 4-82 would show.
Fig.4-82
Click the “System operate set” in the conditioner of although the wired controller has been set, all options in
the System Set are empty (See Fig. 4-83), a message box as Fig. 4-84 would show.
