R410a tropical air-cooled scroll chiller unit 60Hz MCAC-ATSM-2014-09
106 Control system

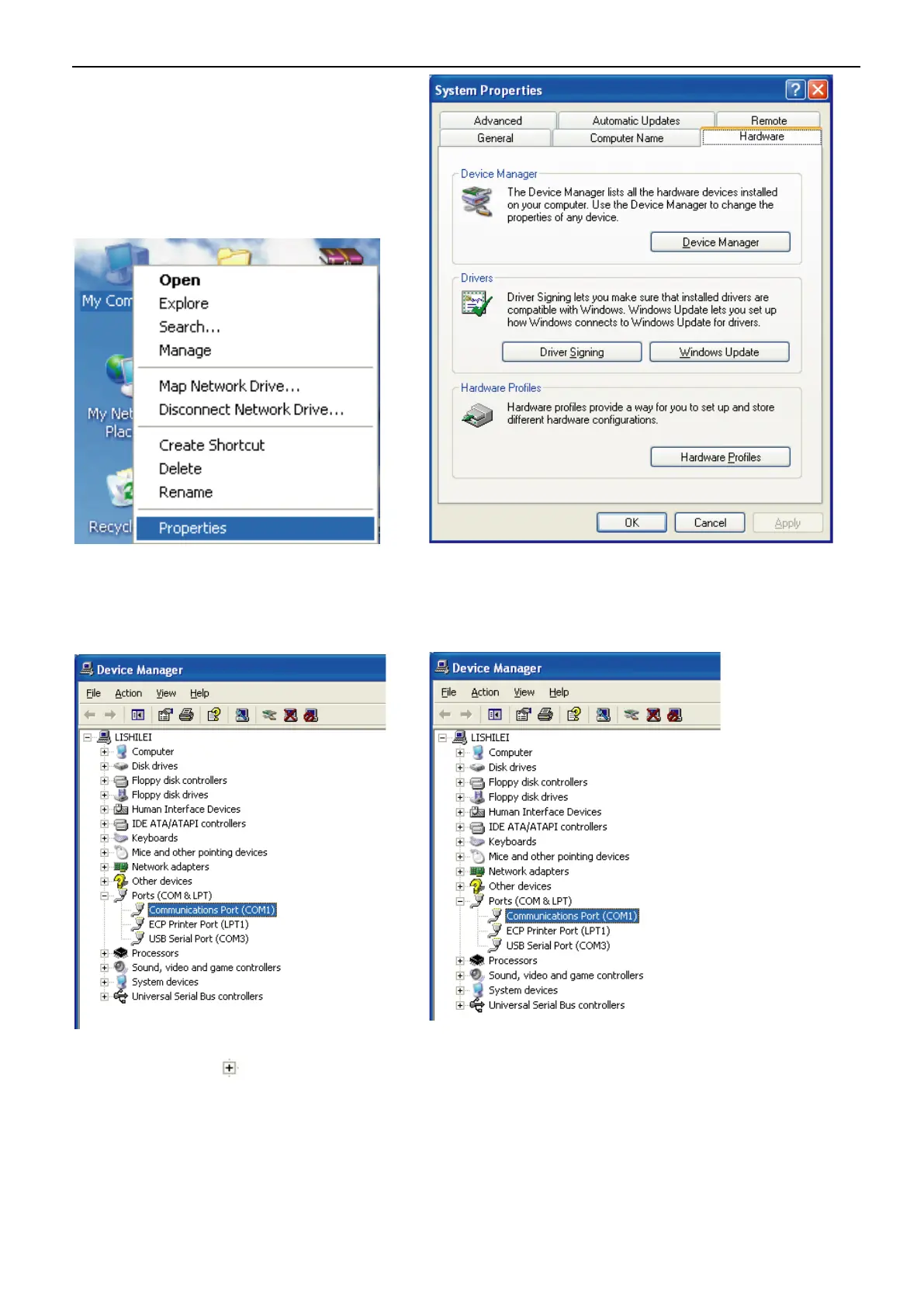

Fig.4-97 Fig.4-98
2、The window “System Properties” will be popped-up after selecting the “Properties”, and then select
the “Device Manager” in the “Hardware” as Fig. 4-98
3、The window “Device Manager” will be showed up after clicking the “Device Manager, as Fig. 4-99.
Fig.4-99 Fig.4-100
4、Click the icon “ ” in front of the “Ports（COM&LPT）” , then can view the port names by the format
as “COM”+number, these names are the usable serial port names for the computer (Note: the computer may
has more serial ports or no ports), as Fig. 4-100.
