Midea MGBT-F25W/DN1

R410a tropical air-cooled scroll chiller unit 60Hz MCAC-ATSM-2014-09
138 Installation

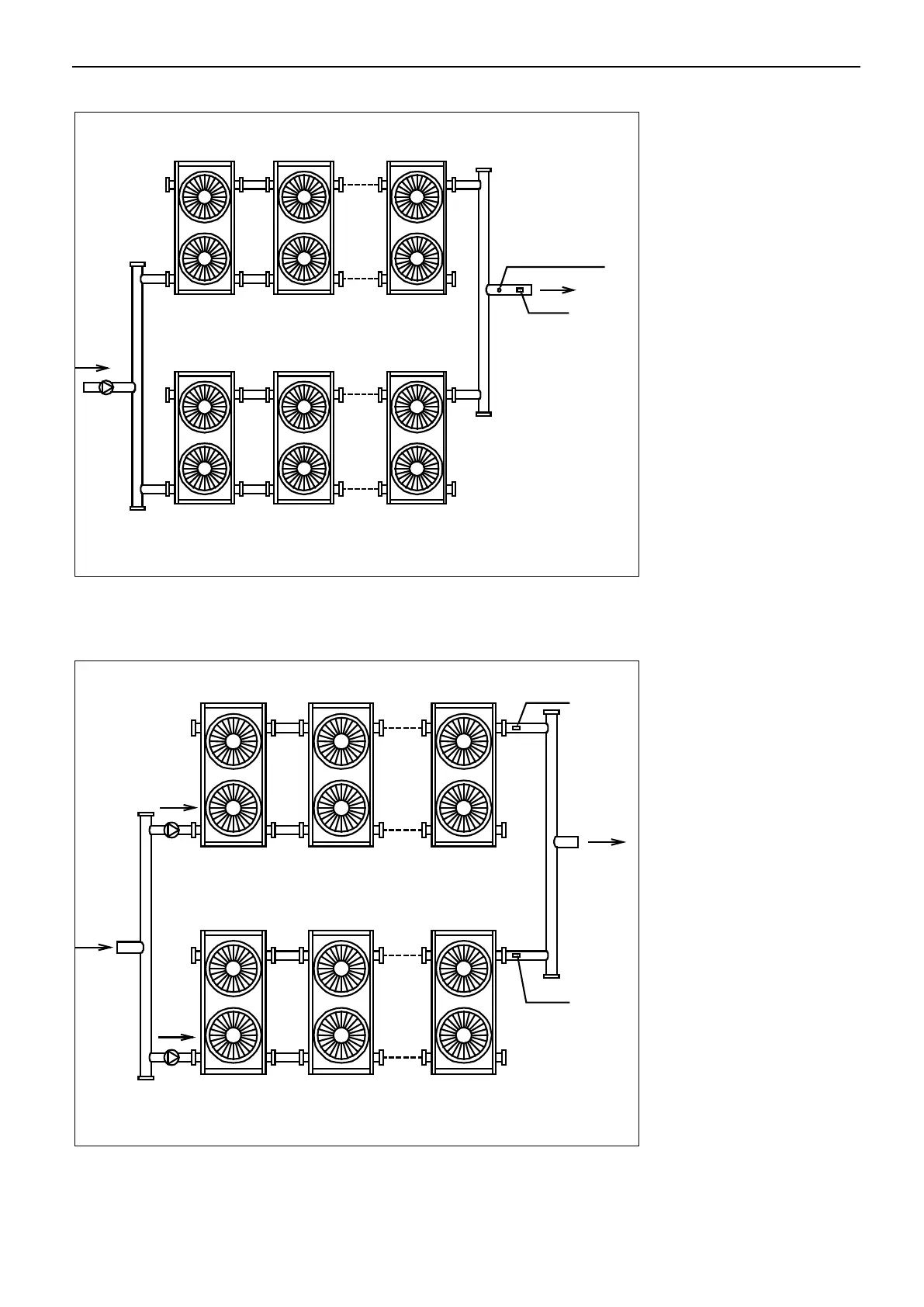

4) Installation mode IV
No.n module
No.(n-1) address
No.1 moduleNo.(n-1) module
No.(n-2) address No.0 address
No.(n-1) module
No.(n-2) address
No.2 moduleNo.(n-3) module
No.(n-4) address No.1 address
Drill dead hole at the
position, and move
the total effluent
temperature sensor
at No.0 address to
the position
Water flow switch
Pump
(installation mode A: less than 16 modules)
n :the module quantity, max 16
5) Installation mode V
(installation mode A: less than 16 modules)
No.n module
No.(n-1) address
No.1 moduleNo.(n-1) module
No.(n-2) address No.0 address
No.m module
No.(m-1) address
No.1 moduleNo.(m-1) module
No.(m-2) address No.0 address
Pump
Pump
Water flow switch
Water flow switch
n :the module quantity, max 8
m : the module quantity, max8
