Midea MGBT-F25W/DN1

R410a tropical air-cooled scroll chiller unit 60Hz MCAC-ATSM-2014-09

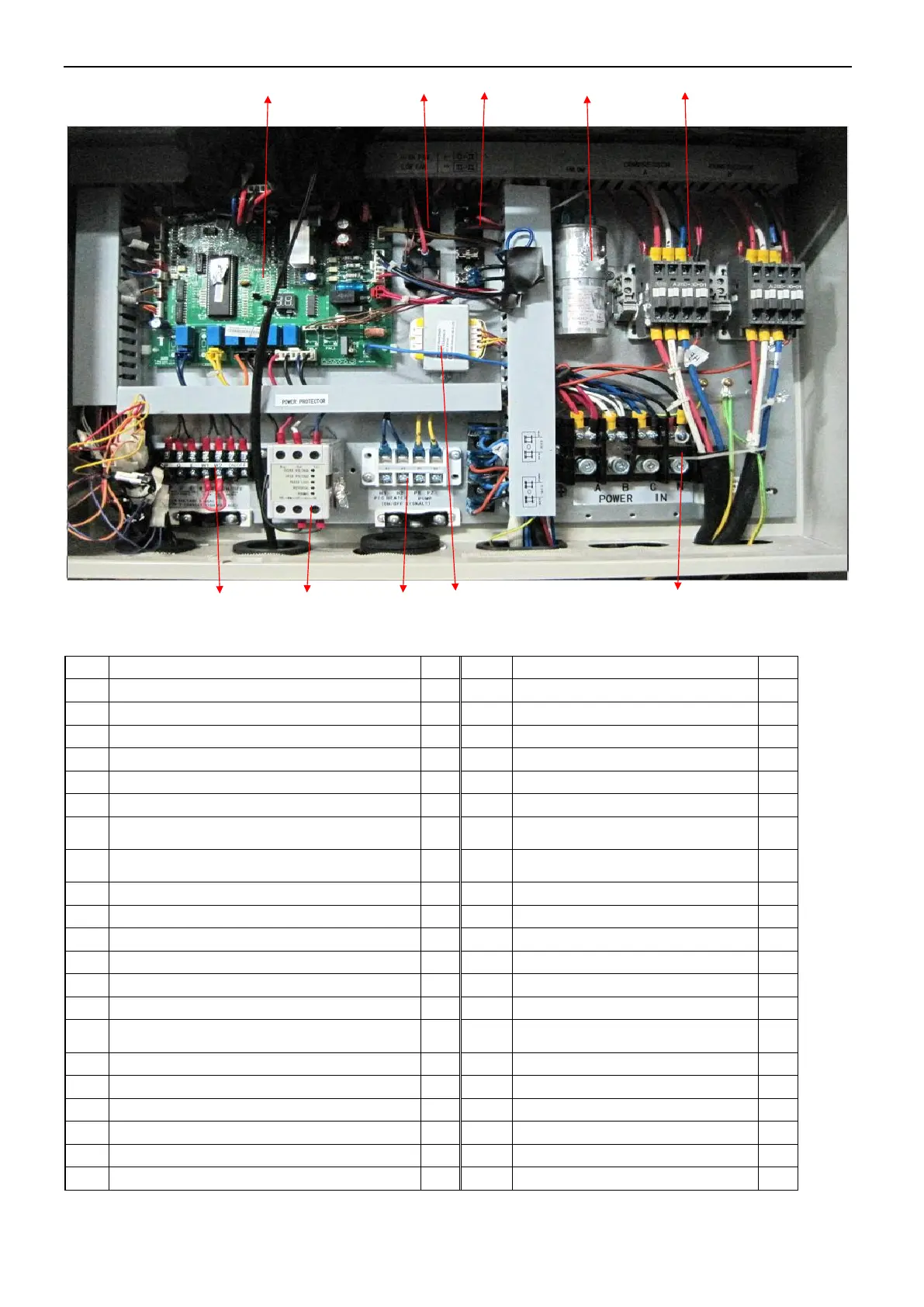

25.1
25.2
25.3
25.4
25.5
25.6
25.7
25.8
25.9
25.10
No.
Part Name
Qty
No.
Part Name
Qty
1
Net
2
25.5
Contactor
2
2
Right seal plate condenser components D
1
25.6
Wire joint,4p
1
3
Tube heat exchanger
1
25.7
Seven Terminal Block
1
4
A seal plate condenser components of the right
1
25.8
Transformer
1
5
B-I input tube assemblies
1
25.9
Wire joint
4
6
A machine control components II input
1
25.10
Wire joint
1
7
A machine control component input I
1
25.11
Welding together pieces of electronic
control box
1
8
B components of the left seal plate condenser
1
25.12
Mounting plate with pieces of
electrical
1
9
A machine component output tube casing
1
26
Drainage pan holder
2
10
A four-way valve assembly machine
1
27
Electronic control box door
1
11
Enter the pipe component II B
1
28
Welding parts water tray
1
12
B unit 4-way valve ass'y
1
29
Electronic control box mounting plate
2
13
Suction pipe ass'y A
1
30
A condenser components
1
14
Suction pipe ass'y B
1
31
Cover
1
15
Support board
2
32
C components of the left seal plate
condenser
1
16
Cover
1
33
Part B condenser
1
17
Cover board
2
34
Motor holder
2
18
Bracket ass'y
2
35
Side sealed board
4
19
Bracket ass'y
2
36
Clapboard supporting board
3
20
Small pieces of the chassis bonding
1
38
Cover
2
21
Accumulator cylinder
2
41
Top cover
1
