Midea MGBT-F25W/DN1

R410a tropical air-cooled scroll chiller unit 60Hz MCAC-ATSM-2014-09
No.
Part Name
Qty
No.
Part Name
Qty
1
Condenser fixed board ass'y A
1
21.8
Wire joint, 6p
1
2
Condenser side board
2
21.10
A Terminal Block
1
3
Condenser ass'y A
1
21.11
Four Terminal Block
3
4
Condenser ass'y B
1
22
Wire Groove
1
5
Mid horizontal support
2
23
separator
2
6
Fixed board
2
24
Shell and tube evaporator
1
7
Mid upright support
2
25
Cover
1
8
Pipe fixing clamp
2
26
Pole
4
9
Evaporator input pipe ass'y
1
27
Electric box door
1
10
Evaporator input pipe ass'y
1
28
Suction pipe ass'y A
1
11
Cover
1
29
Suction pipe ass'y B
1
12
Cover
1
30
4-way valve ass'y A
1
13
Triangle reinforcement ass'y
8
31
4-way valve ass'y B
1
14
Reinforcement board
4
32
Drainage pan ass'y
1
15
Base
1
33
Middle partition plate
2
16
Compressor
2
34
Net
2
17
Cover
1
35
Net
4
18
Wiring terminal fixing board
2
36
Top upright support
2
19
Cover
1
37
Condenser seal connector
1
20
Cover
1
38
Top cover
2
21

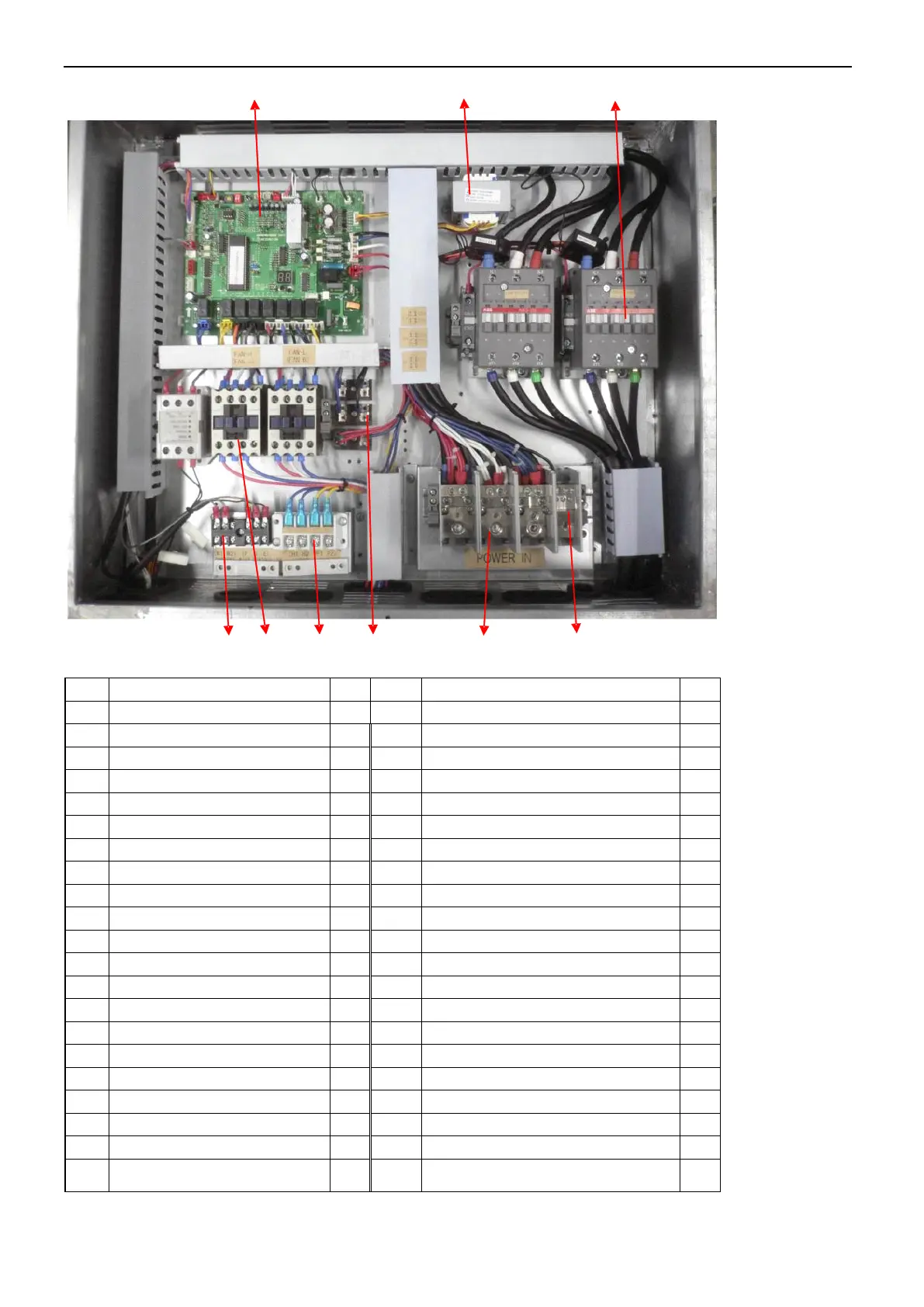

Air-cooled electronic control box
assembly module
1
39
Axial flow fan
2
21
.
2
21
.
3
21
.
4
21
.
6
21
.
5
21
.
7
21
.
8
21
.
10
21
.
11
