R410a tropical air-cooled scroll chiller unit 60Hz MCAC-ATSM-2014-09
92 Control system

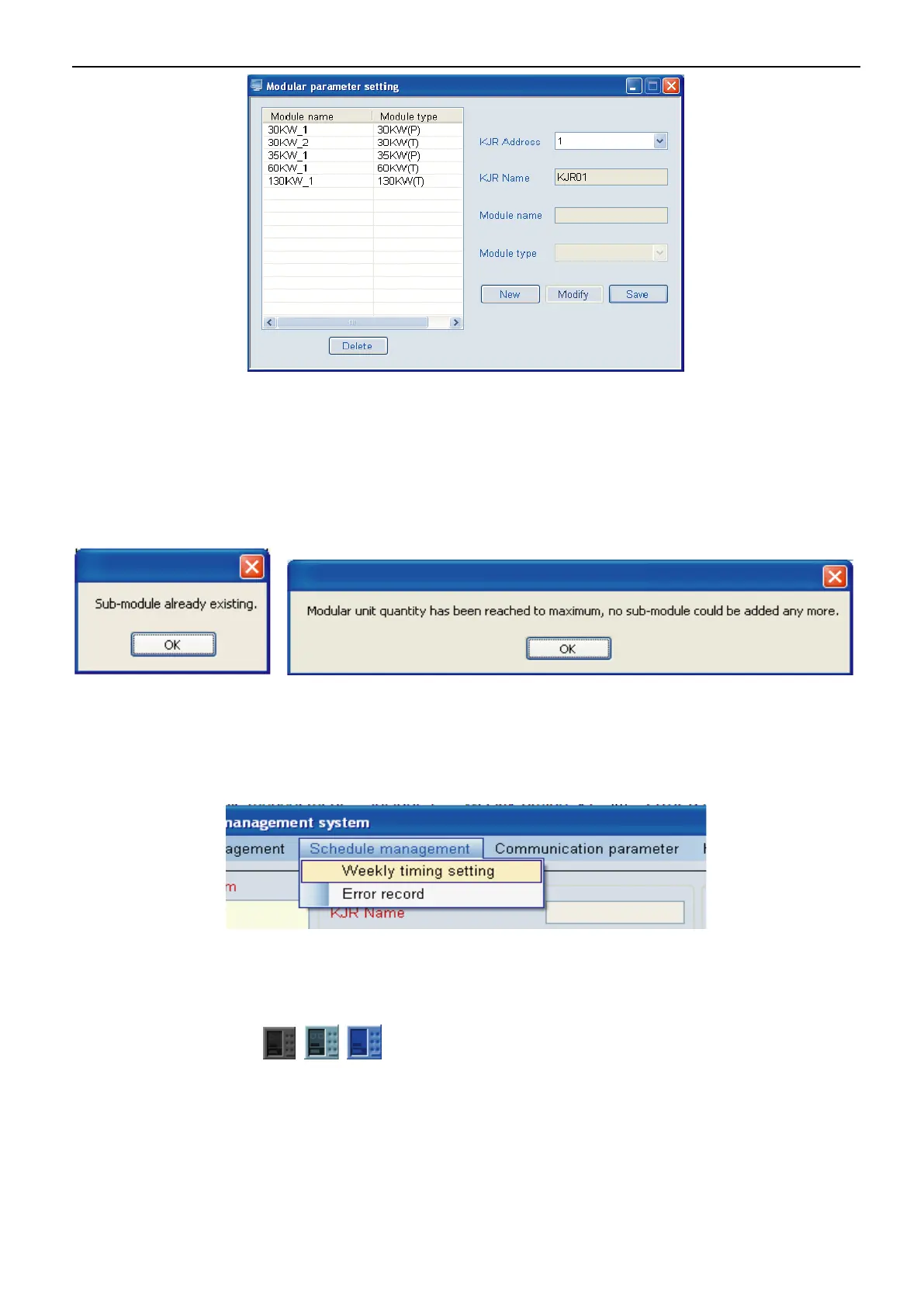

Fig.4-25
a、Add sub-module: Select the existing wired controller address from the “KJR Address”, and select the
configured module group at the drop-down box of “Module name”, select the sub-module address in the
drop-down box of the configured “Sub-module address”, and then click “Add”. The sub-module would not be
configured, if the sub-module address without configured in this wired controller; if sub-module is exists, a
message box would pop up as Fig. 4-26 to note you, the sub-module cannot be configured. If the sub-module
quantity exceeds than the maximum module under connect with wired controller, the message box as Fig.
4-27 will pop up.
b、Delete sub-module: Select the sub-module which wanted to delete (select the wanted delete sub-module at
the drop-down box of “Sub-module address”), and click “Delete” to finish this operation.
3）“ Schedule management” includes: “Weekly timing setting” and “Error record”。 See Fig. 4-28
Fig.4-28
①Click “Weekly timing set” a window as Fig. 4-29 would pop up——finish the weekly schedule
management setting, each wired controller represents a refrigeration system; and the existing wired controller
is a wired controller has already been configured in the system.
Wired controller icons：
(1）Gray color represents Weekly Timing without set in this wired controller.
（2）Light green represents at less one Weekly Timing schedule has been set in this wired controller, without
schedule in activating.
（3）Blue color represents at less one Weekly Timing schedule has been set in this wired controller as well as
at less one of this schedule in activating.
