Control system 95
Week：Day（Monday、Tuesday、Wednesday、Thursday、Friday、Saturday、Sunday）
Period：Period 1、Period 2，set two Period per day.

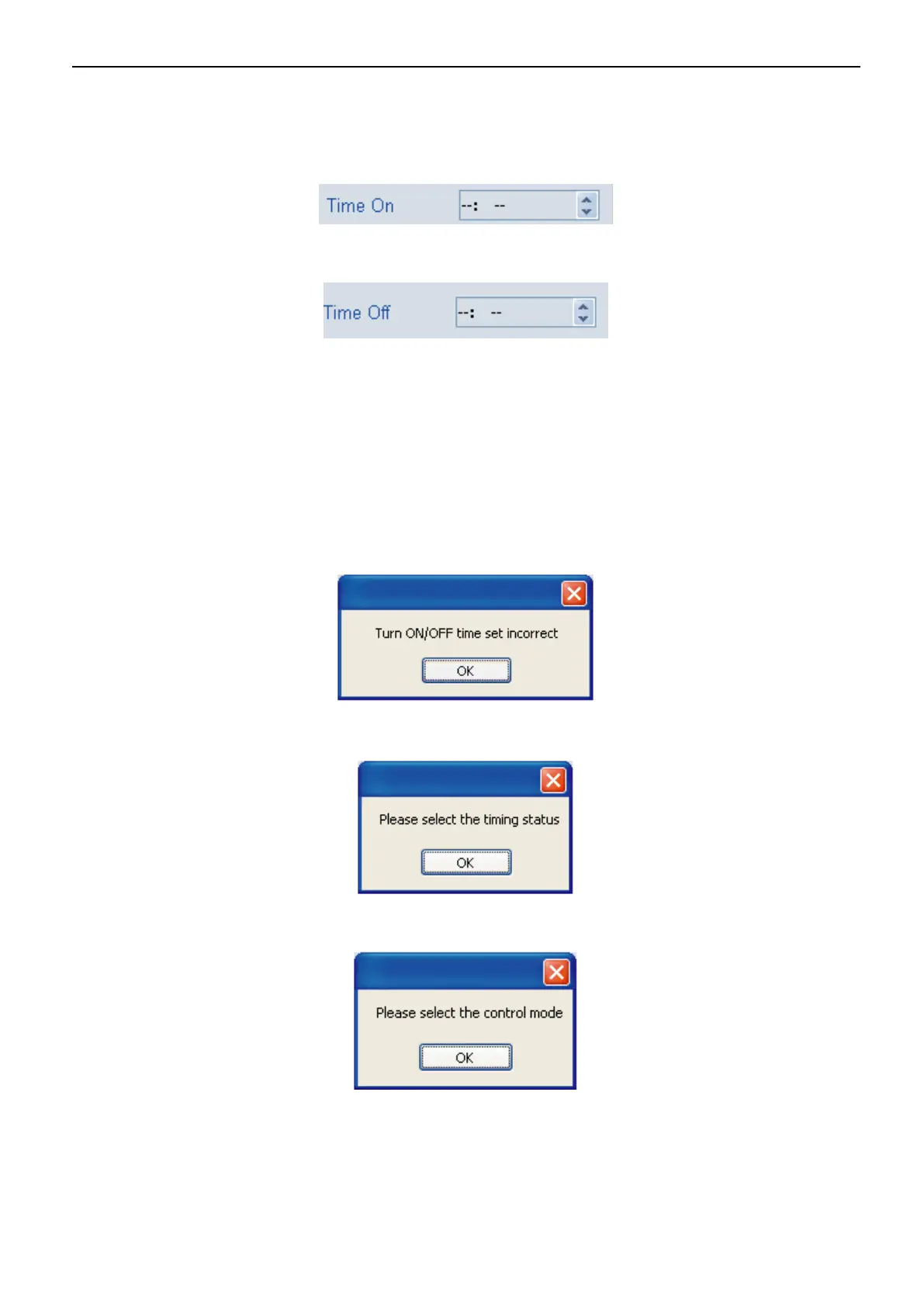

Time On：Turn on time, when Time On selecting ”--：--“ , then means do not turn on the unit , display as Fig
4-37.
Fig.4-37
Time Off：Turn off time, when Time Off selecting ”--：--“ , then means do not turn off the unit , display as Fig
4-38.
Fig.4-38
Timing Status：Drive up the weekly timing function in the current period or not.
Control Mode：Automatically drive-up mode
Mode set：Operation mode: Cooling, Heating, Water Pump
Setting temp.：Setting temp.
Note: The ON/OFF time of the weekly timing can not be at the same time point, the following will be not
allowed for example if the ON time was 8:00 of Period1 and the OFF time was 8:00; and the OFF time of
Period1 was 10:00 and the ON time of Period2 was 10:00. If there is error and then will pops-up prompt dialog
box display as Fig. 4-39:
Fig.4-39
If no Timing Status has been set, a message box as Fig. 4-40 would pop up
Fig.4-40
If no Control Mode has been set, a message box as Fig. 4-41 would pop up.
Fig.4-41
If no Mode has been set, a message box as Fig. 4-42 would pop up.
