MCAC-ATSM-2014-09 R410a tropical air-cooled scroll chiller unit 60Hz

Control system 99

Fig.4-56

Fig.4-57

Fig.4-58

Fig.4-59 Fig.4-60

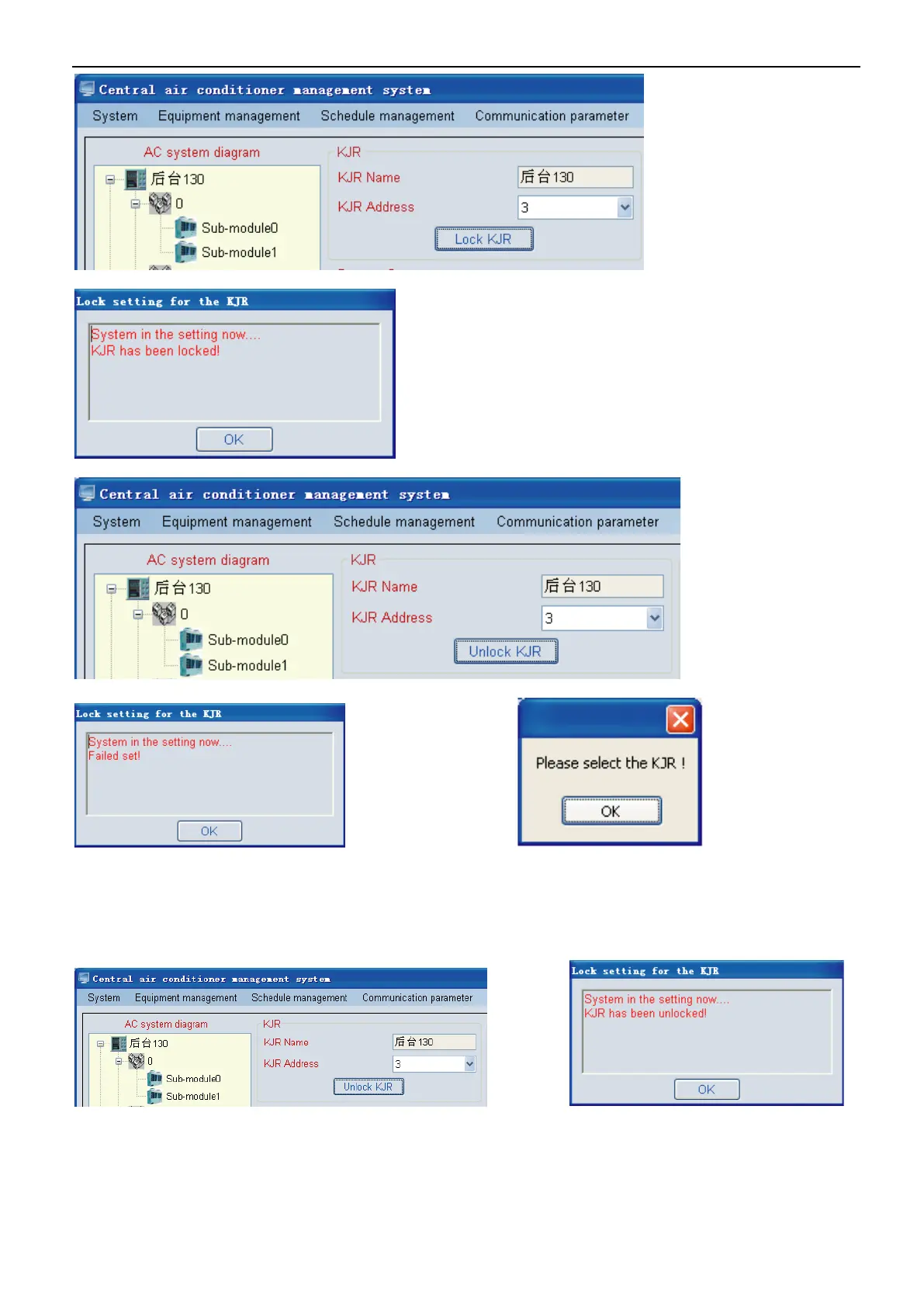

Provided that the selected wired controller in lock status, the key would display “Unlock KJR”(see Fig. 4-61),

once successful unlock the wired controller, the message box (see Fig. 4-62) would display, then the key

displays “Lock KJR”(see Fig. 4-63); If the set failed, message box (Fig. 4-64) would display, tells user that

set failed because of timeout.
