Maintenance and
Disassembly
Page 35

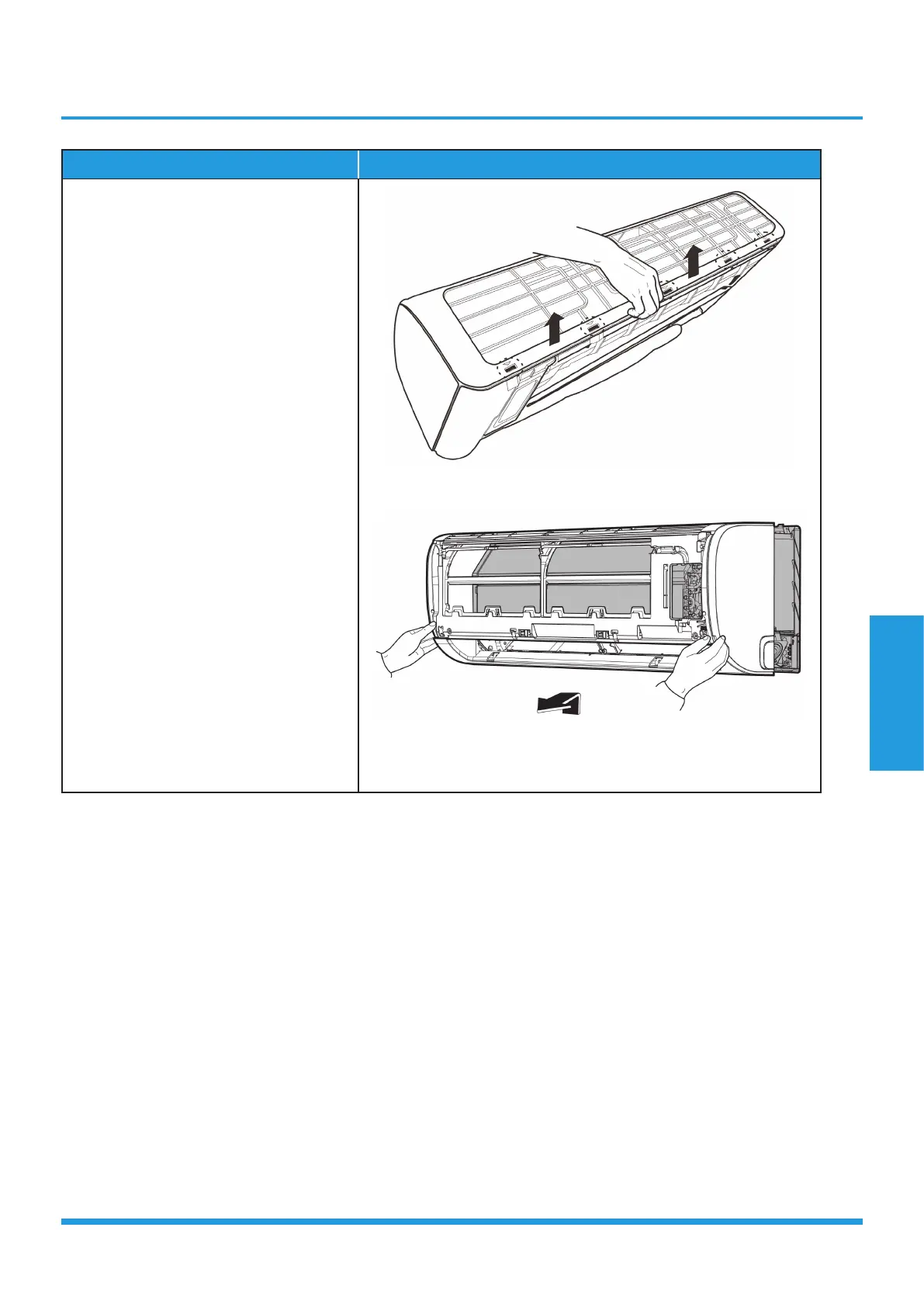

Procedure Illustration
17) Release the 5 hooks in the back (see
CJ_MB1_INV_015).
18) Pull out the panel frame while
pushing the hook through a clearance
between the panel frame and the heat
exchanger. (see CJ_MB1_INV_016)
CJ_MB1_INV_015
CJ_MB1_INV_016
Note: This section is for reference only. Actual unit appearance may vary.
