3. Evaporator

Note: Remove the front panel and electrical parts (refer to 1. Front panel and 2. Electrical parts) before

disassembling evaporator.

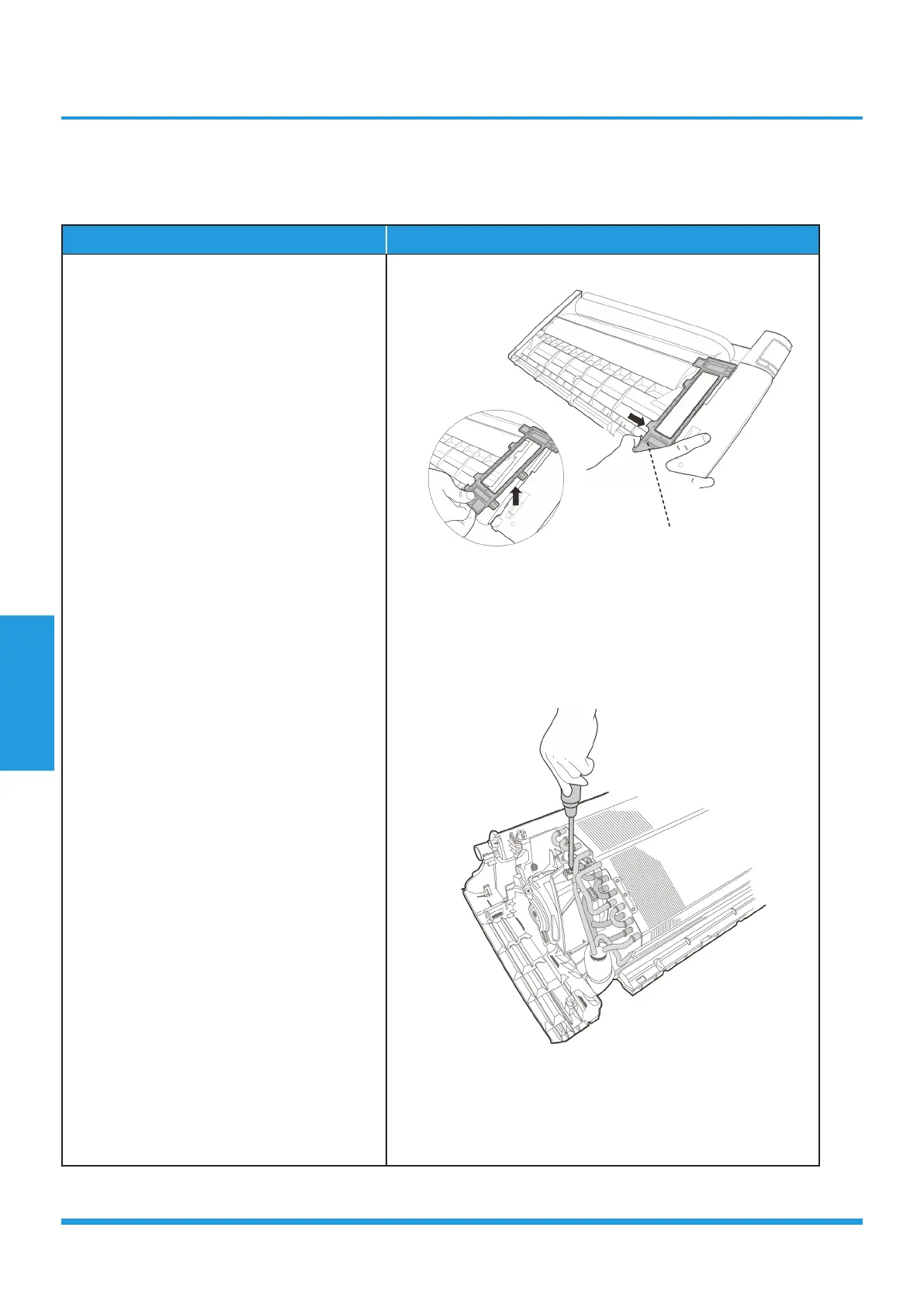

Procedure Illustration

1) Disassemble the pipe holder located at the

rear of the unit (see CJ_MB1_INV_026).

2) Remove the 1 screws on the evaporator

located at the ﬁxed plate (see CJ_MB1_

INV_027).

CJ_MB1_INV_026

CJ_MB1_INV_027

Note: This section is for reference only. Actual unit appearance may vary.

Pipe Holder
