Maintenance and
Disassembly
Page 41

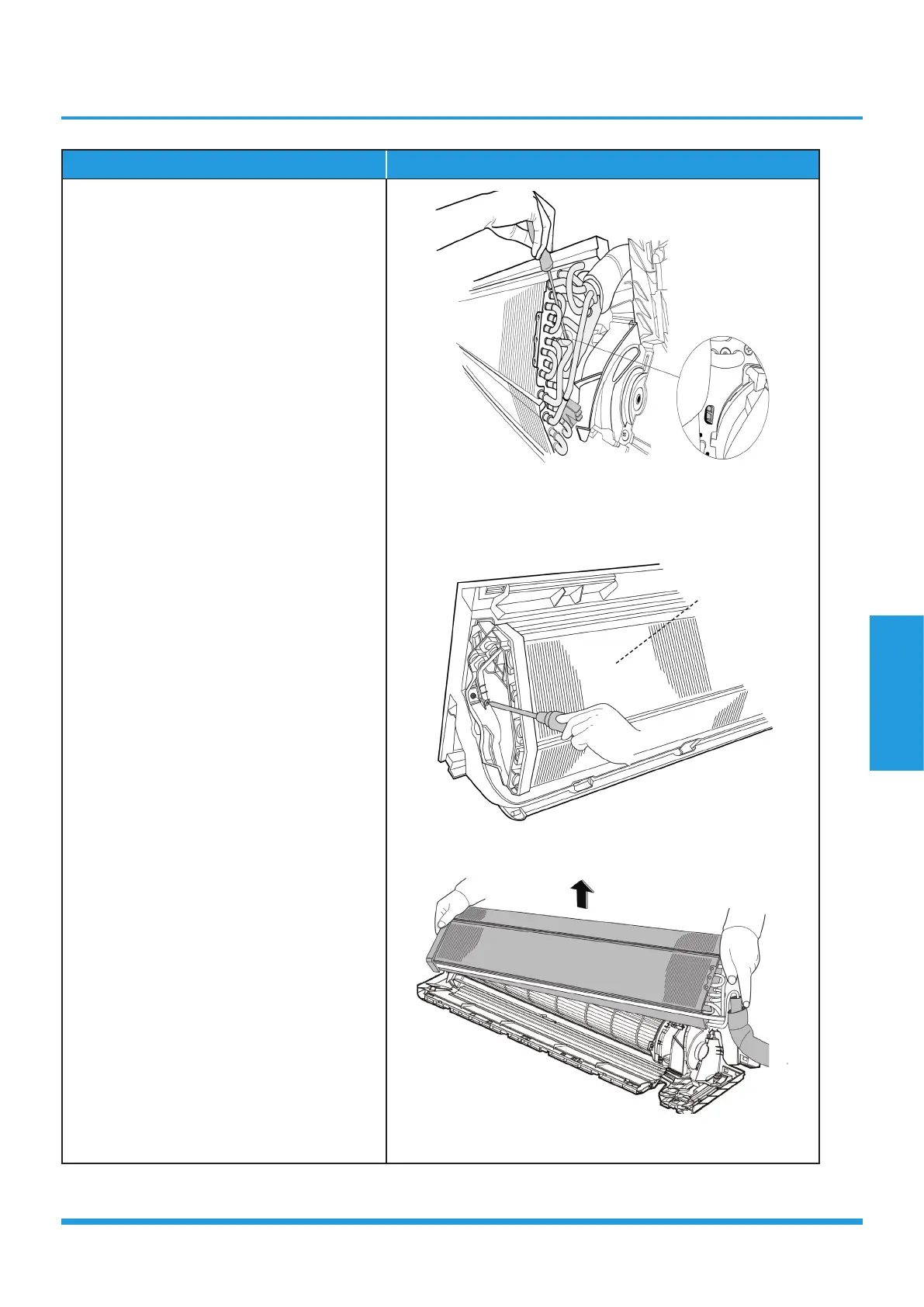

Procedure Illustration
3) Release the hook on the evaporator (see
CJ_MB1_INV_028).
Remote the one screw on the evaporator
located at the fixed plate (see CJ_MB1_
INV_029).
4) Pull out the evaporator (see CJ_MB1_
INV_030).
CJ_MB1_INV_028
CJ_MB1_INV_029
CJ_MB1_INV_030
Note: This section is for reference only. Actual unit appearance may vary.
Evaporator
