4. Fan motor and fan

Note: Remove the front panel, electrical parts and evaporator (refer to 1. Front panel, 2. Electrical parts, and

3. Evaporator). before disassembling fan motor and fan.

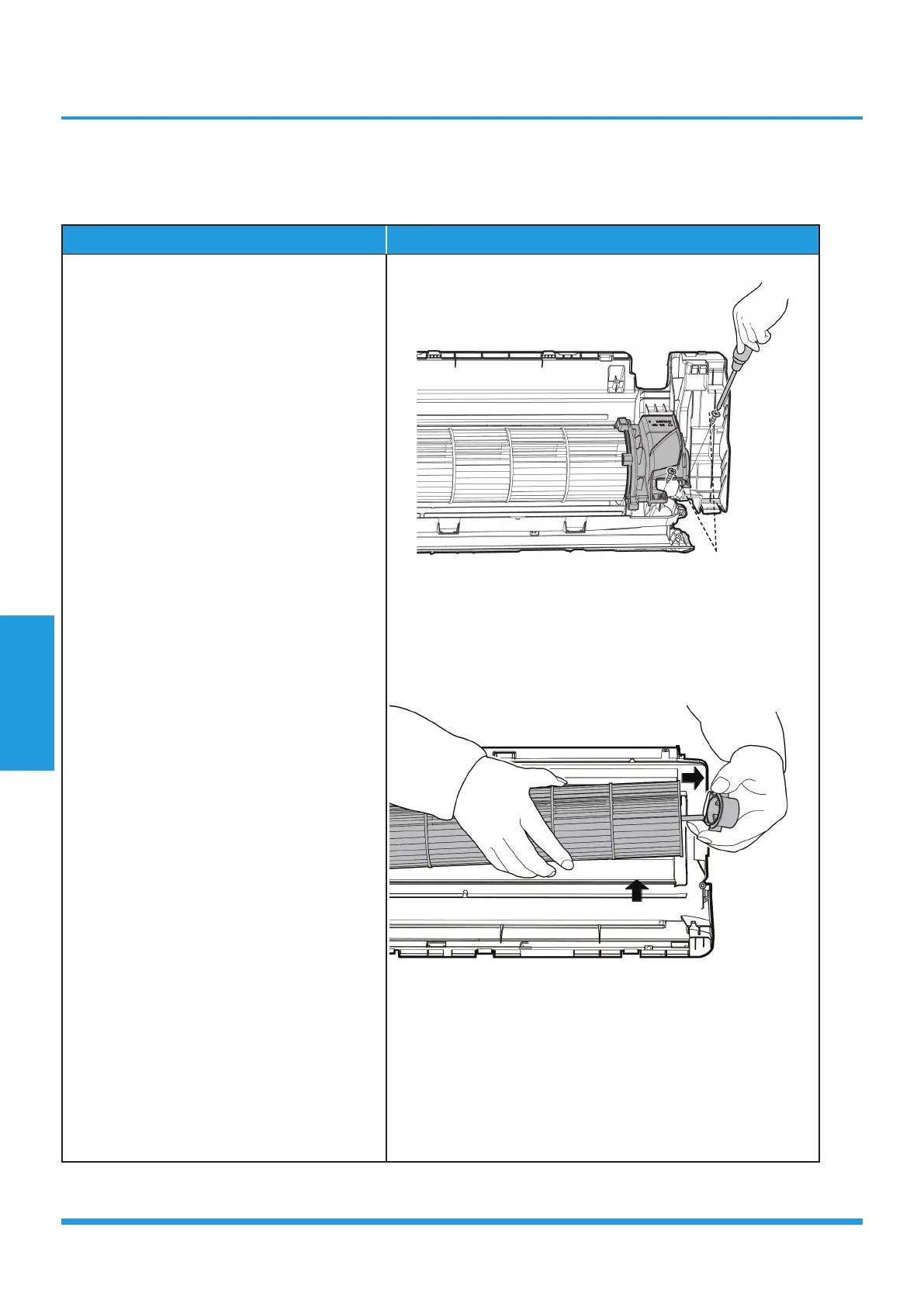

Procedure Illustration

1) Remove the two screws and remove the

ﬁxing board of the fan motor (see CJ_

MB1_INV_031).

2) Remove the bearing sleeve (see CJ_MB1_

INV_032).

CJ_MB1_INV_031

CJ_MB1_INV_032

Note: This section is for reference only. Actual unit appearance may vary.

Screws
