Maintenance and
Disassembly
Page 50

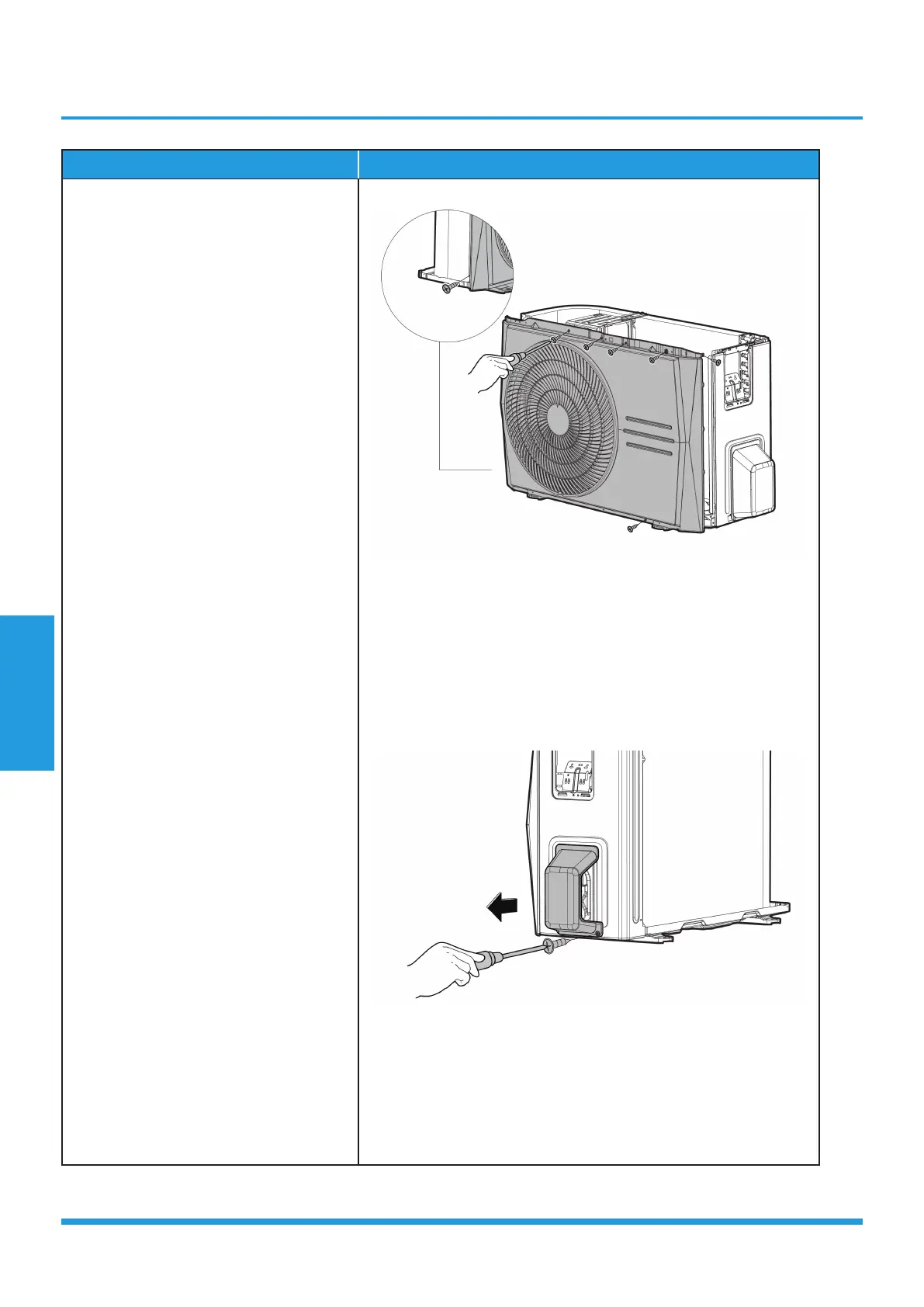

Procedure Illustration
1) Remove the screws of the front panel
and then remove the front panel (7
screws) (see CJ_BA01_INV_003).
2) Remove the screws of water collecting
cover and then remove the water
collecting cover (1 screw) (see CJ_
BA01_INV_004).
CJ_BA01_INV_003
CJ_BA01_INV_004
Note: This section is for reference only. Actual unit appearance may vary.
