Maintenance and

Disassembly

 Page 68 

5. Four-way valve

WARNING: Recover refrigerant from the refrigerant circuit before remove the four-way valve.

Note: Remove the panel plate, electrical parts, and fan assembly (refer to 1. Panel plate, 2. Electrical parts,

and 3. Fan assembly) before disassembling four-way valve.

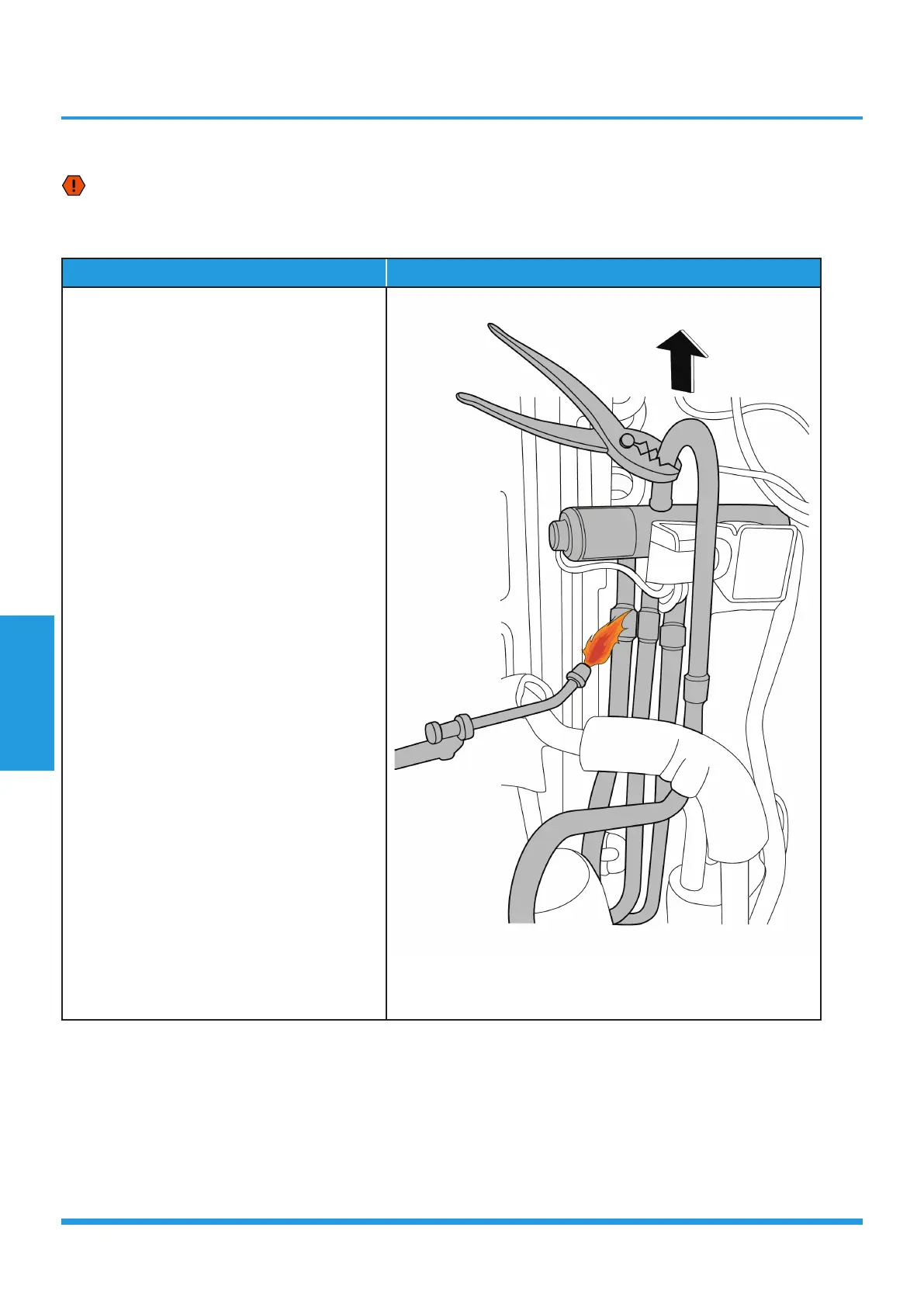

Procedure Illustration

1) Heat up the brazed parts and then detach

the the four-way valve and the pipe (see

CJ_ODU_INV_018).

2) Remove the four-way valve assembly with

pliers.

CJ_ODU_INV_018

Note: This section is for reference only. Actual unit appearance may vary.

Midea MISSION2 3D INVERTER Series - Four-way Valve
