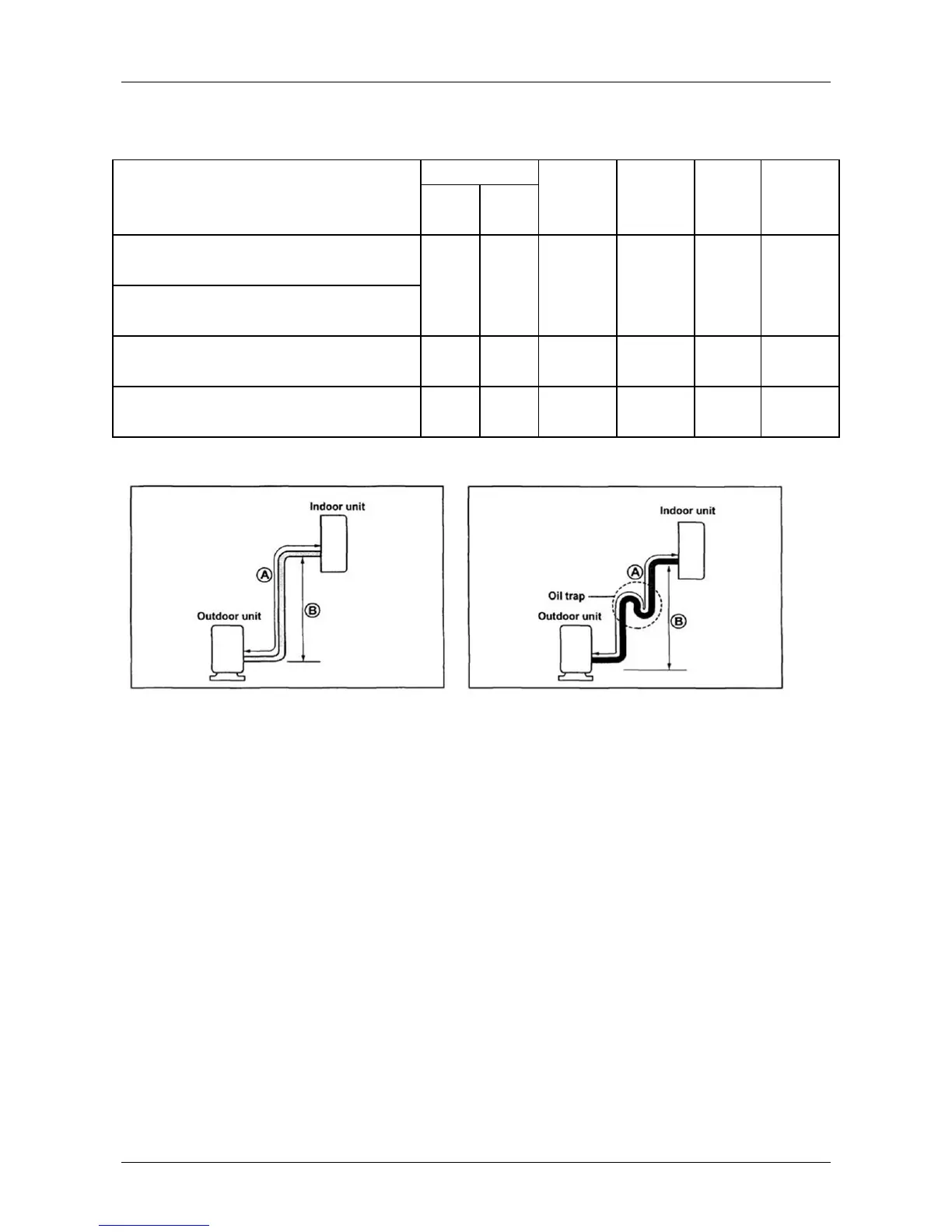

8.3 Pipe length and the elevation
The pipe length and refrigerant amount:
Model
Pipe size
Standard
length
(m)
Max.
Elevation
B (m)
Max.
Length
A (m)
Additional
refrigerant
(g/m)
Gas Liquid
MS11MU-09HRDN1 / MO11MU-09HRDN1
3/8’’
9.53
1/4’’
6.35
5 8 20 20
MS11MU-12HRDN1 / MO11MU-12HRDN1
MS11MU-18HRDN1 / MO11MU-18HRDN1
1/2’’
12.7
1/4’’
6.35
5 10 25 20
MS11MU-24HRDN1 / MO11MU-24HRDN1
5/8’’
16.0
3/8’’
9.53
5 10 25 40
Caution:
The capacity test is based on the standard length and the maximum permissive length is based on the
system reliability.
The oil trap should be installed per 5-7 meters
