Midea MSV1-09HRFN1-MT0W

96
2
Electrical
parts

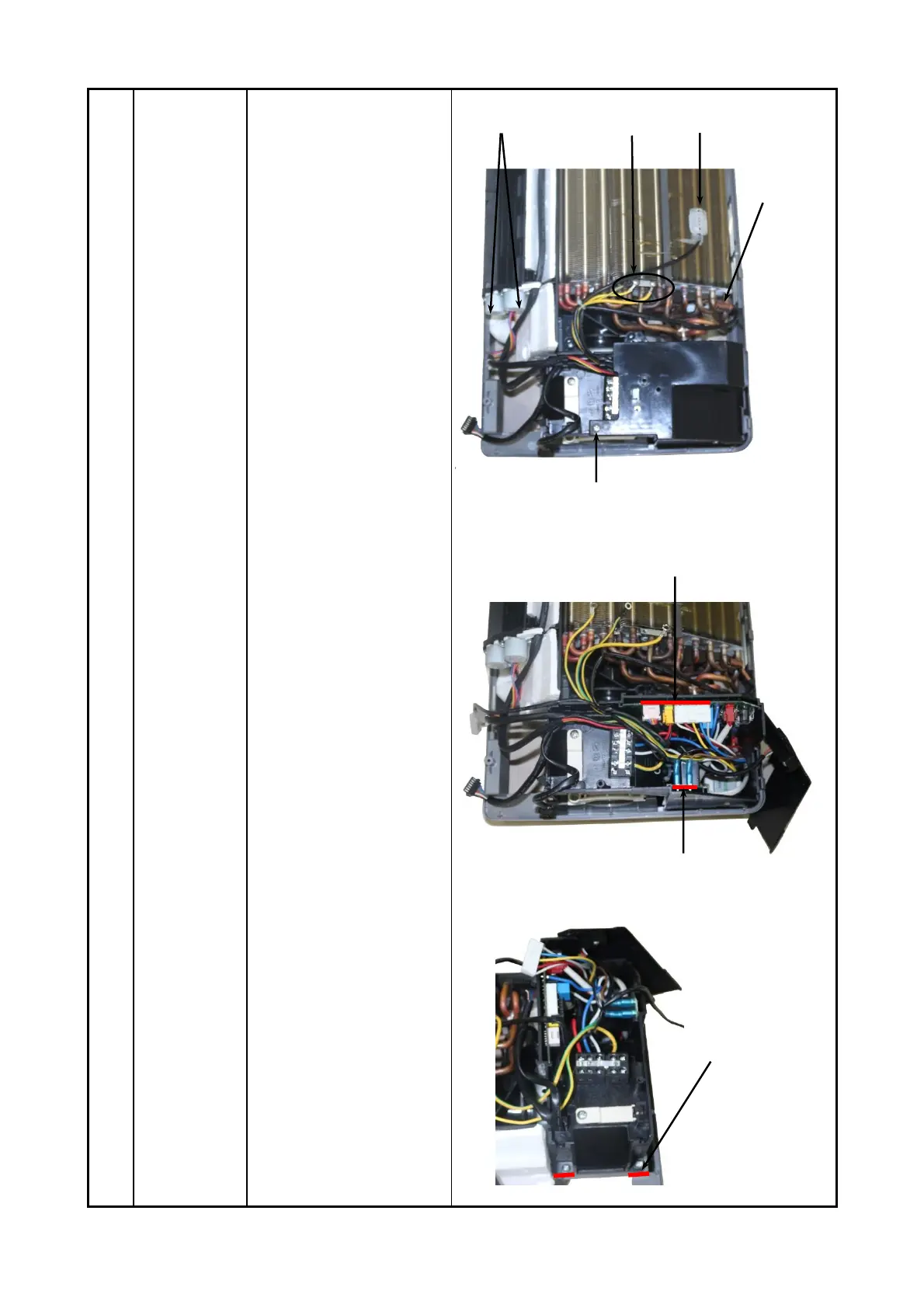

How to remove the
electrical parts.
1) After remove the
front panel from
procedure 1, pull out the
room temp. sensor and
evaporator coil sensor.
Remove the grounding
screws.
2) Remove the fixing
screw and open the
electrical box cover.
.
3) Pull out the
connectors of the swing
motor, ionizer, fan motor
and the capacitor .
4) Remove the two
fixing screws and then
remove the electronic
control box and air outlet
ass’y.
Swing motors
From right to left, it is the fan motor connector,
ionizer connector, the swing motor connector
Connector of fan capacitor
Two screws fixing
the electrical box
Electrical box cover fixing by one screw
Grounding screws
Evaporator coil
temp. sensor
Room temp. sensor
